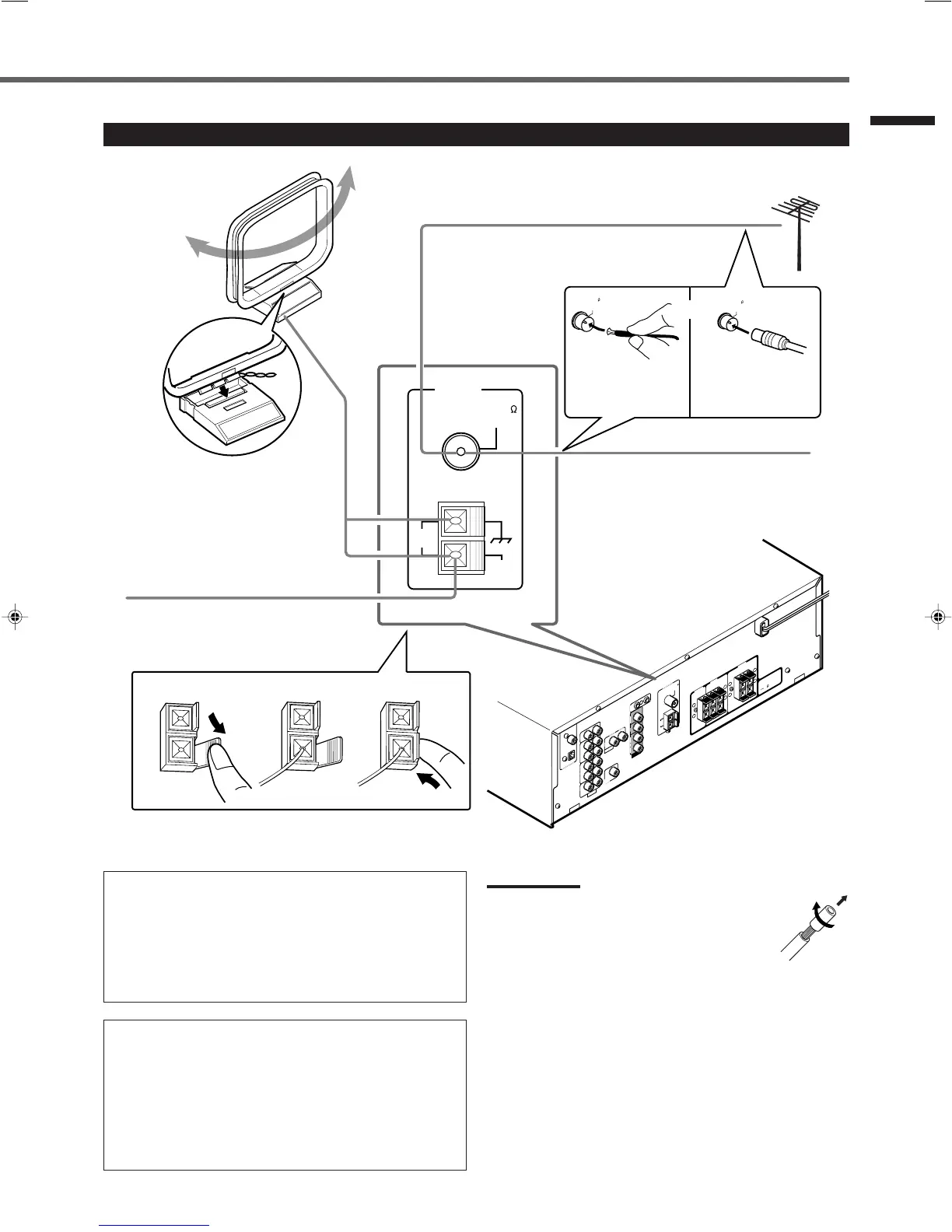

Connecting the FM and AM (MW/LW) Antennas
Supplied FM
antenna
Extend the supplied FM antenna horizontally.
FM antenna (supplied)
Snap the tabs on the loop
into the slots of the base to
assemble the AM (MW/LW)
loop antenna.
If AM (MW/LW) reception is poor, connect
outdoor single vinyl-covered wire (not
supplied).
AM (MW/LW)
Loop Antenna
(supplied)
Standard type
outdoor FM antenna
(IEC or DIN45325)
(not supplied)
AM (MW/LW) antenna connection
Connect the AM (MW/LW) loop antenna supplied to the AM
LOOP terminals.
Turn the loop until you have the best reception.
• If the reception is poor, connect an outdoor single vinyl-
covered wire (not supplied) to the AM EXT terminal. (Keep the
AM (MW/LW) loop antenna connected.)
FM antenna connection
Connect the supplied FM antenna to the FM 75 Ω COAXIAL
terminal as temporary measure.
Extend the supplied FM antenna horizontally.
• If the reception is poor, connect an outdoor FM antenna (IEC
or DIN45325) (not supplied). Before attaching a 75 Ω coaxial
cable (with a standard type connector), disconnect the supplied
FM antenna.
Getting Started
Outdoor FM antenna (not supplied)
If FM reception is poor, connect outdoor FM antenna.
or
Notes:
• If the AM (MW/LW) loop antenna wire is covered with
vinyl, remove the vinyl while twisting it as shown to
the right.
• Make sure the antenna conductors do not touch any
other terminals, connecting cords and power cord.
This could cause poor reception.
