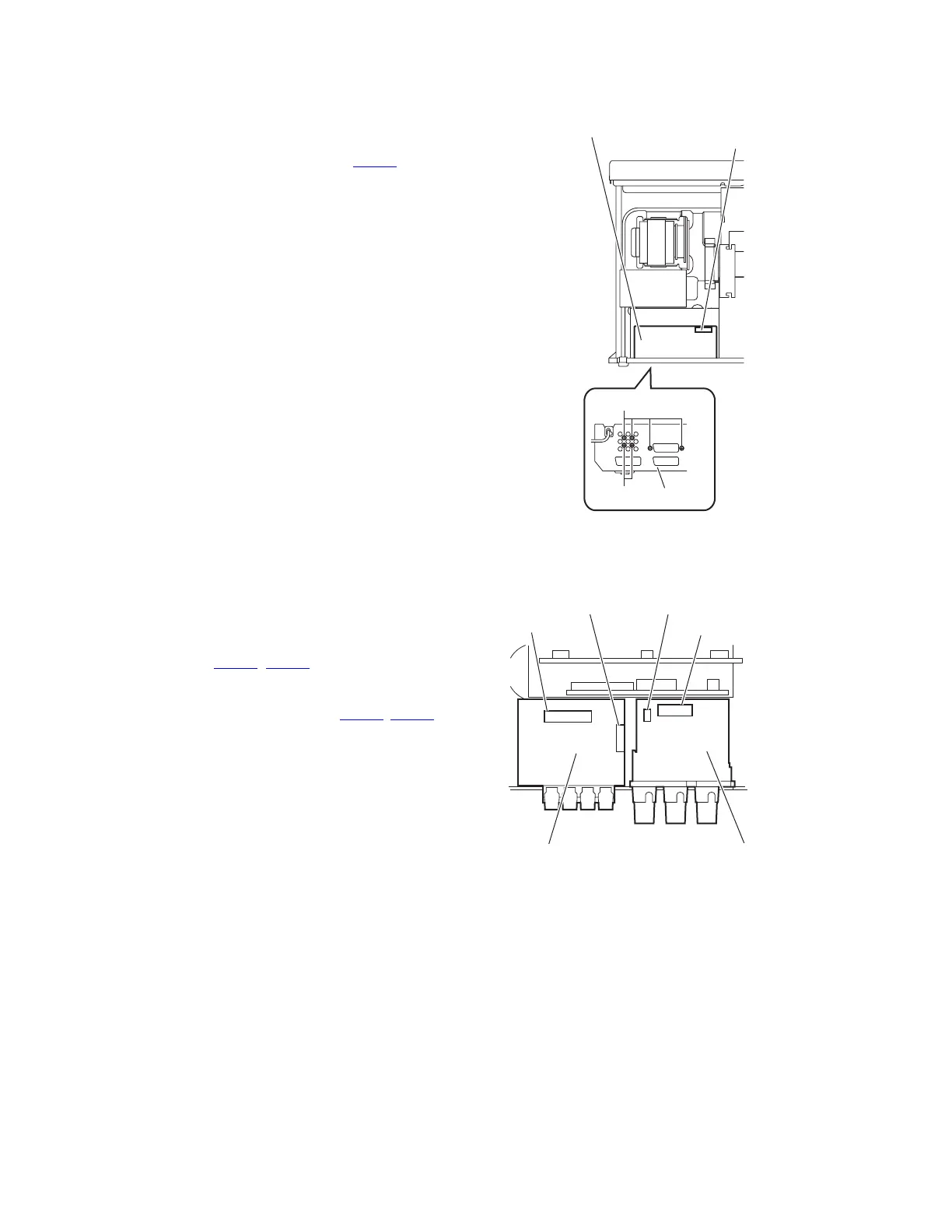

1-14 (No.MB479)
3.1.18 Removing the scart board
(See Fig.13) [For Europe]
Remove the top cover.
(1) From the back side of the main body, remove the six
screws W attaching the scart board to the rear panel.
(2) Disconnect the card wire from the connector CN537
on the
scart board.
(3) Take out the scart board from the main body.
Fig.13
3.1.19 Removing the speaker terminal 1 and speaker terminal 2 boards
(See Fig. 14)
Remove the top cover and rear panel.
Reference:
Remove the tuner and subwoofer board as required.
(1) From the top side of the main body, disconnect the wires
from the connectors (CN265
, CN465) on the speaker ter-
minal 1 board.
(2) Take out the speaker terminal 1 board from the main body.
(3) Disconnect the wires from the connectors (CN209
, CN262)
on the speaker terminal 2 board.
(4) Take out the speaker terminal 2 board from the main body.
Fig.14
Scart board
CN537
W
W
Rear panel
CN265
CN262
CN465CN209
Speaker terminal 2 board Speaker terminal 1 board
