1-6 (No.MB206)
SECTION 3
DISASSEMBLY
3.1 Removing the top cover
(See Figs.1 to 3)
(1) From the both sides of the main body, remove the four
screws A attaching the top cover. (See Figs.1 and 2.)
(2) From the back side of the main body, remove the five
screws B attaching the top cover. (See Fig.3.)
(3) Lift the rear section of the top cover in the direction of the
arrow while extending the lower sections of the top cover
and remove the top cover from the main body. (See Figs.1
and 2.)

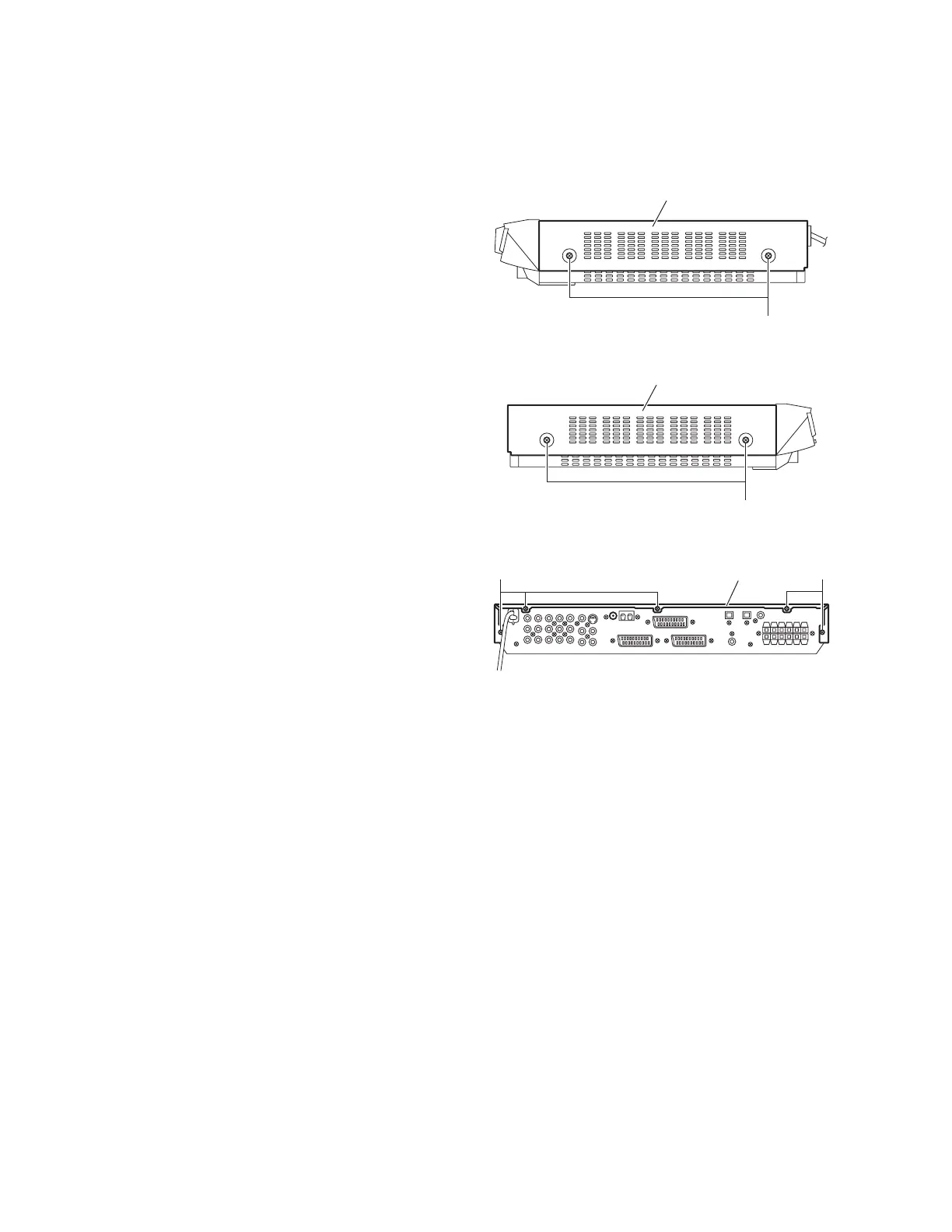

Fig.1
Fig.2
Fig.3
A
Top cover
A
Top cover
BB
Top cover
