3.2 Removing the front panel assembly
(See Figs.4 and 5)
• Remove the top cover.
(1) From the top side of the main body, remove the divider.
(See Fig.44.)
Reference:
After attaching the front panel assembly, attach the divid-
er as before. (See Fig.4.)
(2) Disconnect the wire from the connector CN421
on the con-
nection 2 board. (See Fig.4.)
(3) Remove the tie band and wire clamps. (See Fig.4.)
(4) Disconnect the wire from the connector CN412
on the sec-
ondary board. (See Fig.4.)
Reference:
After connecting the wire to the connector, bundle the
wires with the other wires using the wire clamps and new
tie band as before. (See Fig.4.)
(5) Remove the screw C and two screws C' attaching the front
panel assembly. (See Fig.4.)
Reference:
When attaching the screws C', attach the earth wires
with them. (See Fig.4.)
(6) From the bottom side of the main body, remove the four
screws D attaching the front panel assembly. (See Fig.5.)
(7) Release the two claws a and claw b, remove the front panel
assembly in the direction of the arrow. (See Fig5.)

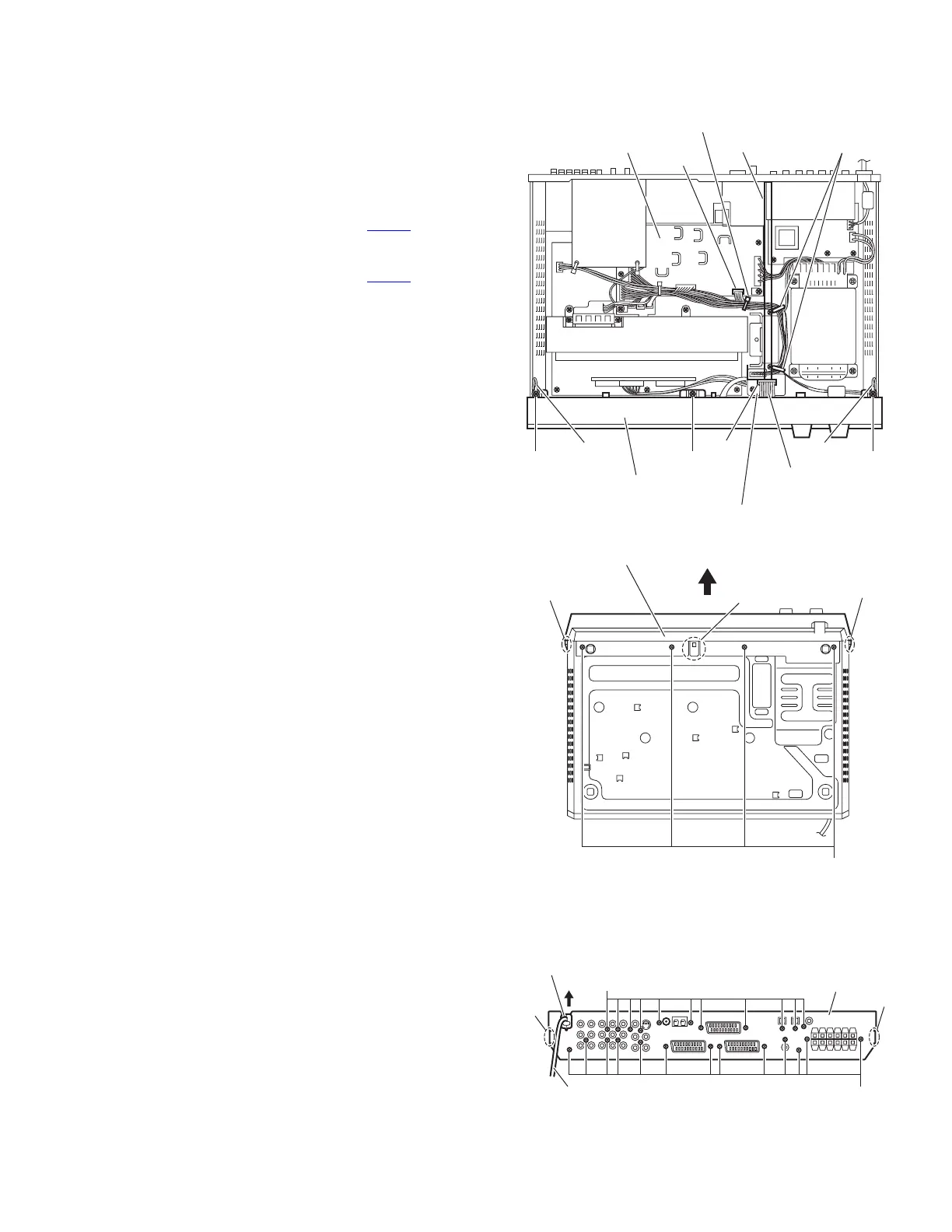

Fig.4
Fig.5
3.3 Removing the rear panel
(See Fig.6)
• Remove the top cover.
(1) From the back side of the main body, remove the strain re-
lief attaching the power cord in the direction of the arrow.
(2) Remove the twenty-four screws E attaching the rear panel.
(3) Release the engagement sections c and remove the rear
panel from the main body.
Fig.6
Secondary board
Earth wire Earth wire
C'
CN412
Divider
Wire clamps
Tie band
Front panel assembly
CN421
Connection 2 board
Wire
C'C
a
a
Front panel assembly
D
b
Rear panel
c
E
E
Strain relief
c
Power cord
