13

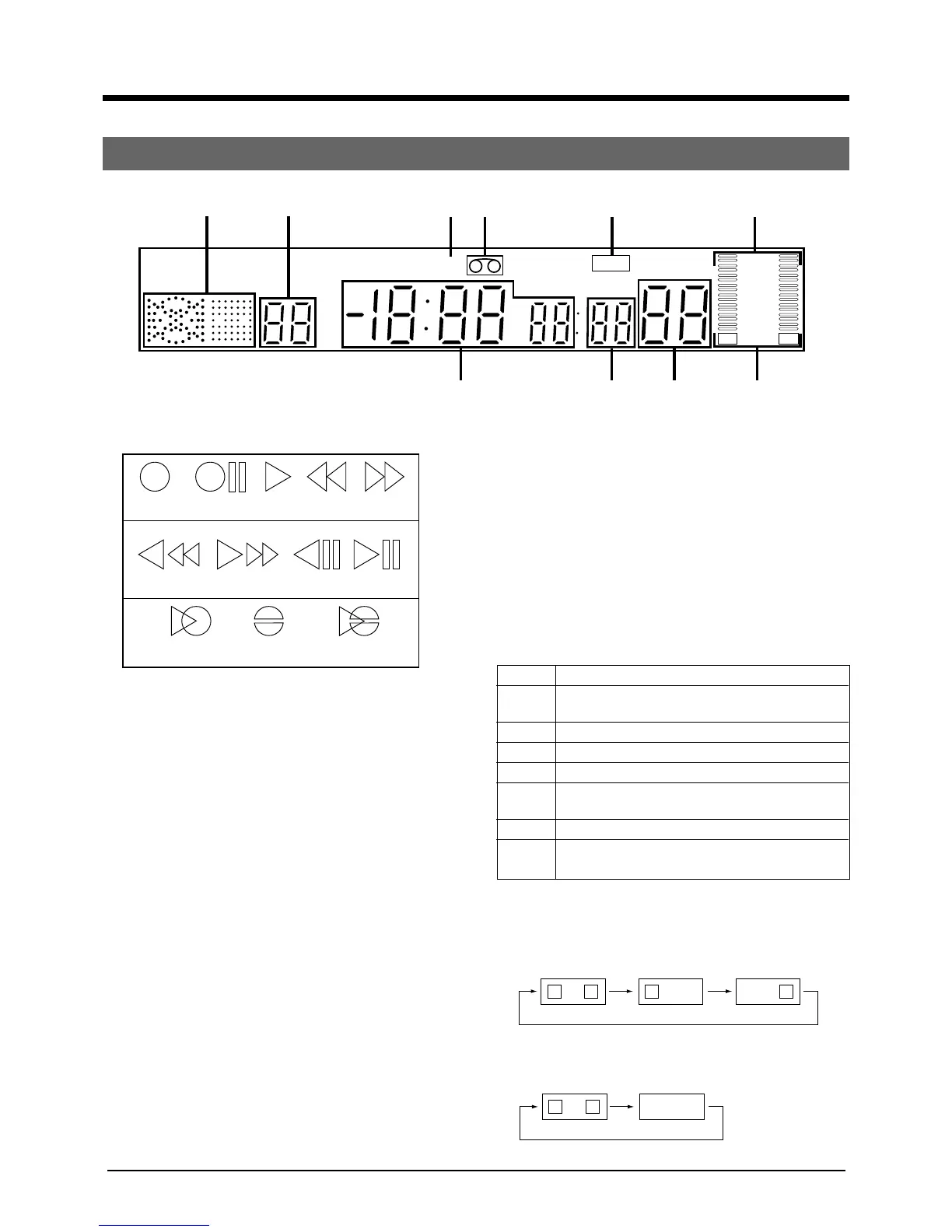

Display Panel
3 INDICATORS AND DISPLAYS
L R
+8
4
0
6
10
–15dB
AT
VISS
HM
12345
8
907
6
1VCR Mode Display
2 Program Number Display
displays the program number of Random Assemble
Editing.
3 Auto Tracking Indicator
lights during auto tracking mode.
AT indicator is turned off by pressing AUTO button
for manual tracking adjustment.
4 ”Cassette loaded” Mark
appears when a cassette is loaded in VCR.
5 VISS(VHS Index Search System) Indicator
flickers when recording starts and stays lit when
Index Search is performed.
6 Sound Level Indicator
indicates the level for both sound input and output.
7 Counter/Tape Remaining Time Display
displays the tape counter and the tape remaining
time from the current tape position to the tape end.
Recording
Rewind Playback
Insert Editing Audio Dubbing
Fast forward 
Playback
Insert Editing + 
Audio Dubbing
Playback
Reverse Forward
Rewind/Fast forward Playback Still Picture/Slow Playback
Rew FF
Recording 
Pause
LR
No display
(Hi-Fi) (Normal)
8 Recording Mode/Recording Speed display
displays the recording mode: HD(Hd)/SD(Sd)
when W-VHS tape is in use.
Displays the recording speed: SP/EP when S-VHS
or VHS tape is in use.
9 External Input
displays the selected input connectors.
Every press of the INPUT SELECT button changes
the display.
Hd can be selected only when a W-VHS tape is
being used or when there is no cassette loaded in
the unit.
Display Selected Connectors
Hd HD VIDEO IN & HD/S3 AUDIO IN connectors
(REAR)
L1 VIDEO & AUDIO INPUT 1 connectors(REAR)
S1 S-VIDEO &AUDIO INPUT1 connectors (REAR)
L2 VIDEO & AUDIO INPUT2 connectors (REAR)
S3 S-VIDEO INPUT3 & HD/S3 AUDIO IN
connectors (REAR)
L4 VIDEO & AUDIO INPUT4 connectors (FRONT)
S4 S-VIDEO & AUDIO INPUT4 connectors
(FRONT)
0 Sound volume display
displays the selected sound output mode.
Every press of the HI-FI AUDIO SELECT button
changes the display as follows.
Every press of the AUDIO OUT SELECT button
changes the display as follows.
LR L R
