JVC SR-W5U - Specifications

33
9 SPECIFICATIONS
● Power supply AC 120 V, 60 Hz
● Power consumption 40 W
● External dimensions 476 (W) × 148 (H) × 366 (D)
● Weight 9.0 kg
● Allowable operating +5°C — +40°C
temperatures
● Allowable relative 35% — 80%
humidity
● Allowable storage –20°C — +60°C
temperature
Video
● Recording/playback format
[W-VHS format]
HD mode: Rotary 4-head helical
scanning system
SD mode : Rotary 2-head helical
scanning system
Temporal compression TCI
signal FM recording
[S-VHS/VHS format]
Rotary 2-head helical
scanning system
Luminance signal FM
recording
Color signal Phase shift,
converted sub-carrier direct
recording
● Video signal NTSC -type color signal
Hi-vision baseband signal
HiFi Audio
● Recording system VHS stereo HiFi system
● Frequency response 20 Hz — 20 kHz
● Dynamic range 90 dB or more
● Wow & flutter 0.005 % or less
● Channel separation 60 dB or more
Normal Audio
● Recording system Linear track
● Audio track 1-channel monaural
Connectors
● HD Video Input Y : 0.7 Vp-p, 75 ohms, ternary
in sync
PB, PR : ±0.35 V, 75 ohms, ternary in
sync
Output Y : 0.7 Vp-p, 75 ohms, ternary
in sync
PB, PR : ±0.35 V, 75 ohms, ternary
in sync
● RGB Output R : 0.7 Vp-p, 75 ohms
G : 0.7 Vp-p, 75 ohms
B : 0.7 Vp-p, 75 ohms
HD : TTL Level, 75 ohms
VD : TTL Level, 75 ohms
● S Video Input Y : 0.8 – 1.2 Vp-p, 75 ohms
C : 0.2 – 0.4 Vp-p, 75 ohms
Output Y : 1.0 Vp-p, 75 ohms
C : 0.29 Vp-p, 75 ohms
● Video Input 0.5 – 2.0 Vp-p, 75 ohms (RCA)
Output 1.0 Vp-p, 75 ohms (RCA)
● Audio Input –8 dBs, 50 kohms (RCA)
Monaural on front panel connectors only
(left)
Output –8 dBs, 1 kohm (RCA)
● REMOTE PAUSE mono 3.5 mm
● R.A.EDIT/PREROLL mono 3.5 mm
● REMOTE mono 3.5 mm
Accesories
● Provided accesories Cleaning Tape
Power Cord
Infrared Remote Control
Unit
"AA" Battery x 2
✽ Designs and specifications subject to change
without notice.

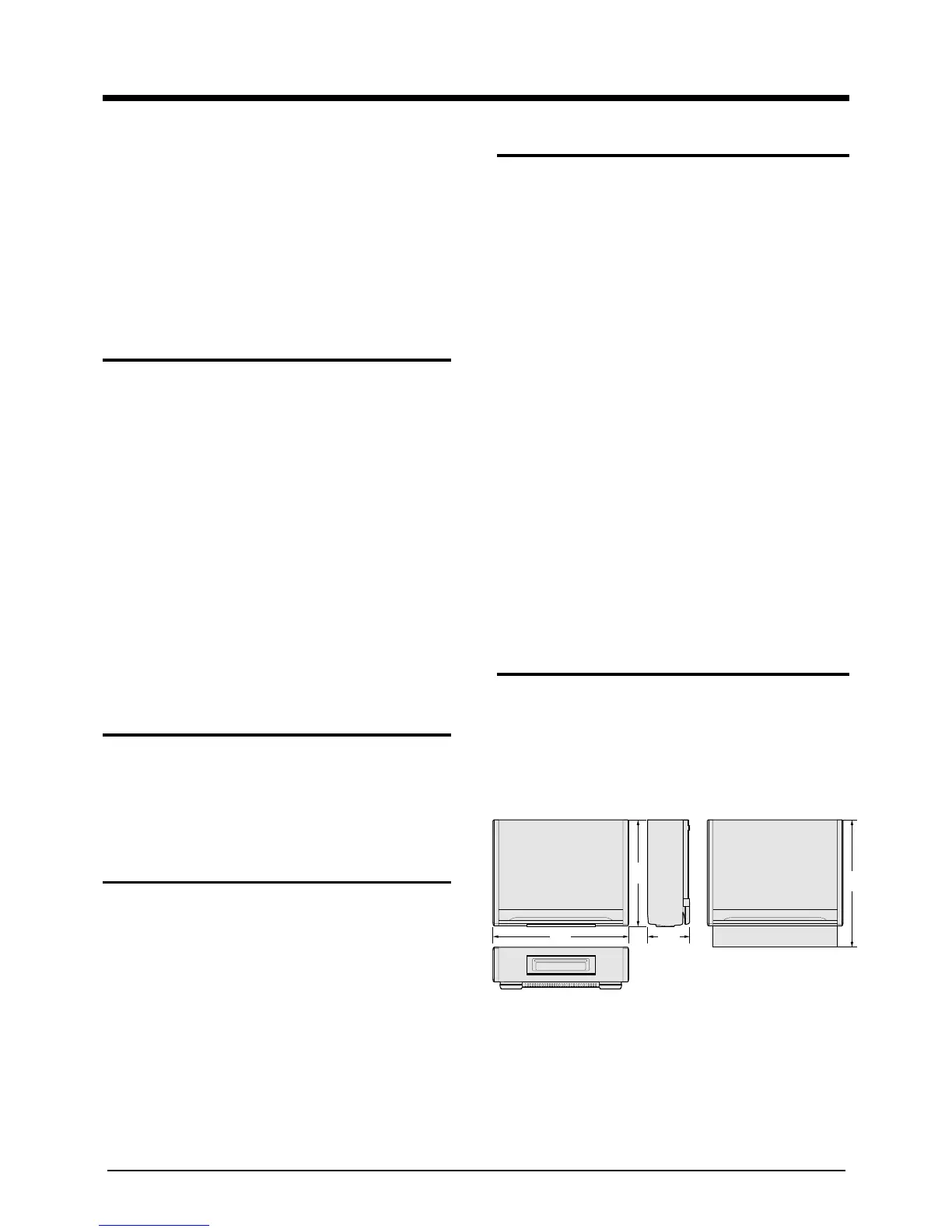

476
417
366
148
When door is open
