1-10 (No.MB409)

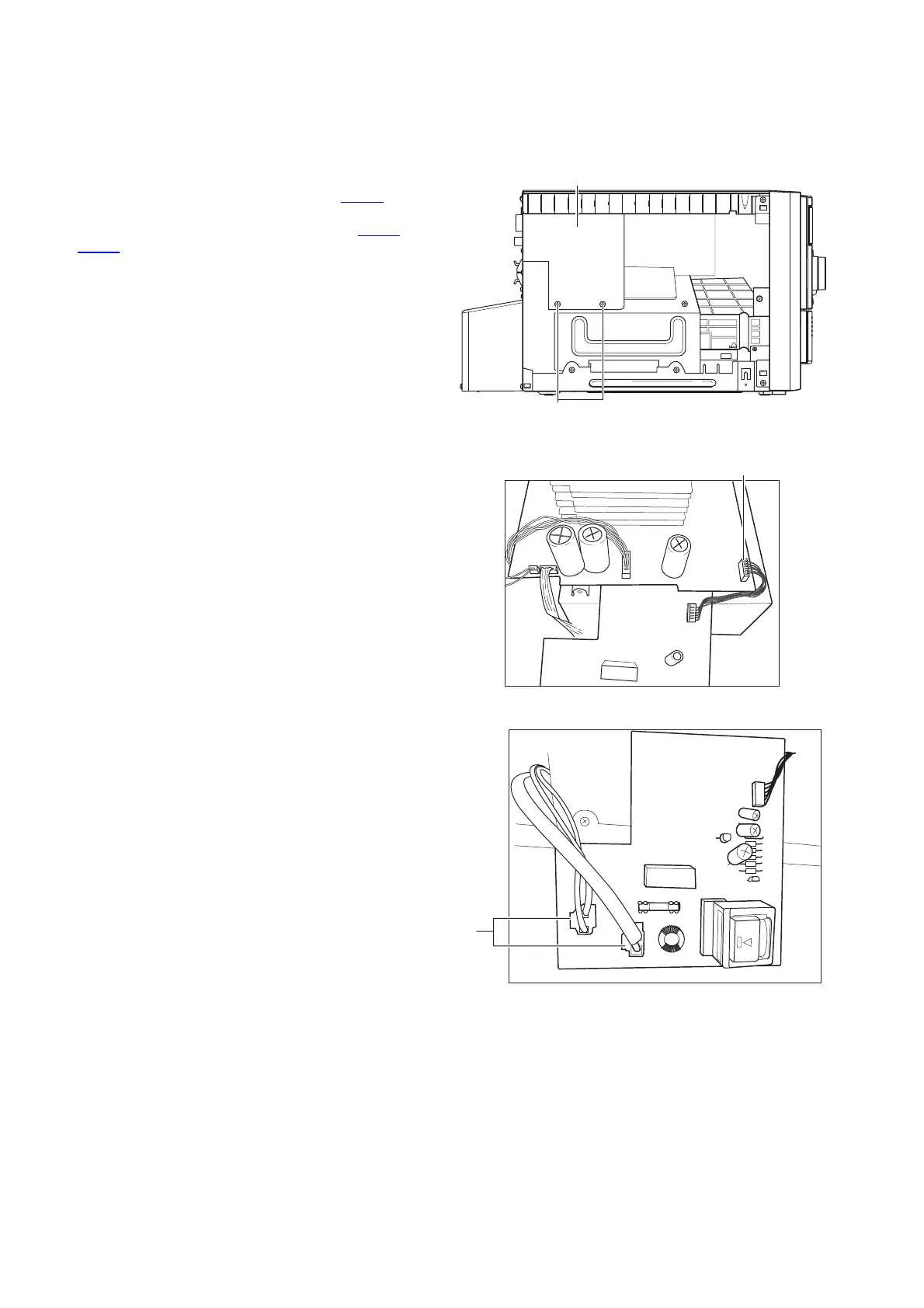

3.1.11 Removing the power board
(See Fig.14 to 16)
(1) Remove the two screws K1 from CD mechanism cover and
power board. (See Fig.14)
(2) Disconnect the wire K2 from the connector CN102
on the
AMP board. (See Fig.15)
(3) Disconnect the two wire K3 from the connector CN901
and
CN902
. (See Fig.16)
Fig.14
Fig.15
Fig.16
Power board
K1
K2
K3
