1-8 (No.MB409)

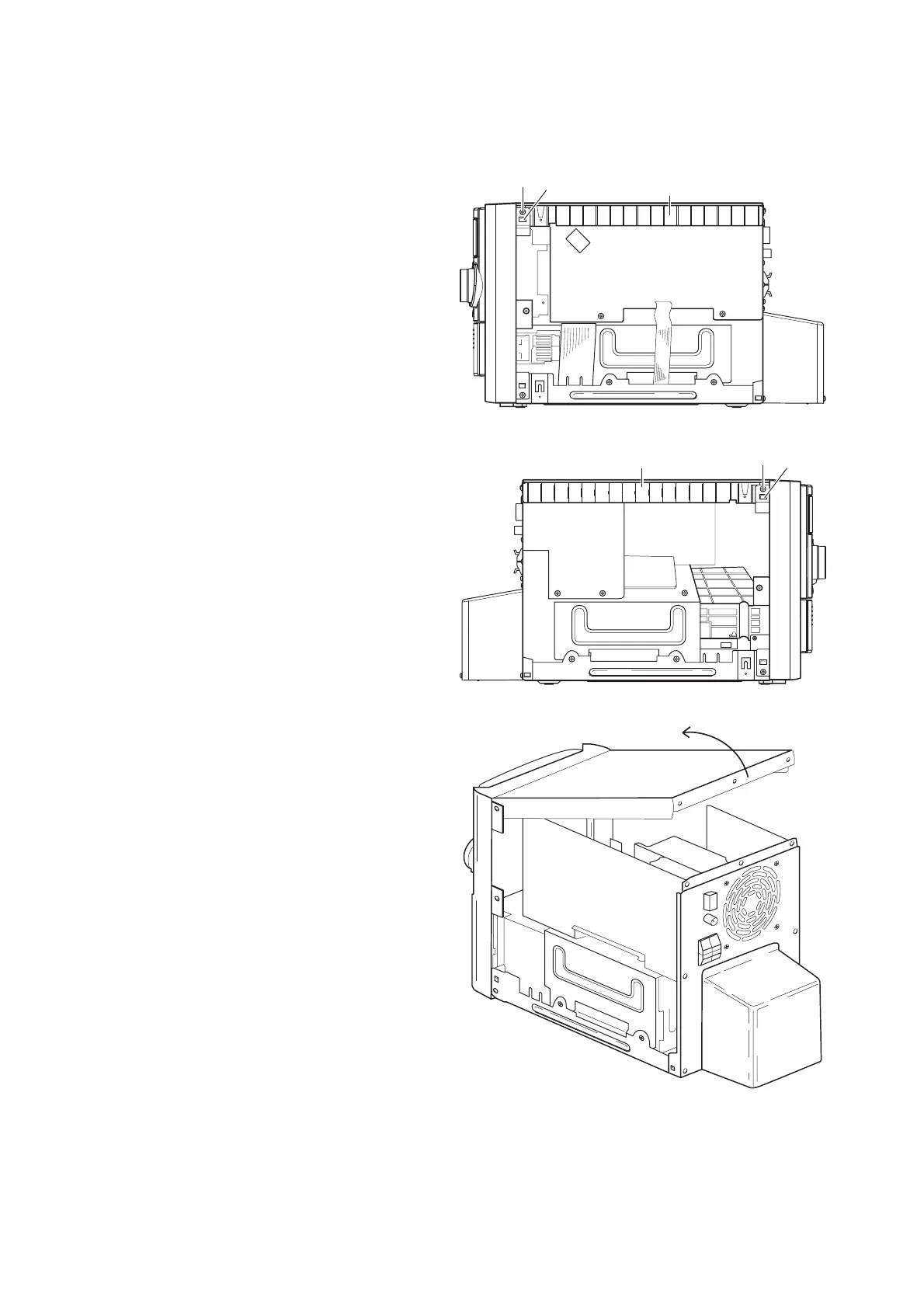

3.1.9 Removing the top cover
(See Fig.7 to 9)
(1) Remove the two screws H1 (See Fig.7,8).
(2) Disengage the claws H2 on both side of the front cabinet
(See Fig.7, 8).
(3) Rotate top cover and let's away from main body (See
Fig.9).
Caution:
When you rotate top cover, must to slow raise, Don't to destroy
the two claws of front cabinet.
Fig.7
Fig.8
Fig.9
H1
Top cover
H2
H1
Top cover
H2
