JVC UX-S59 Service Manual

1-12 (No.MB409)

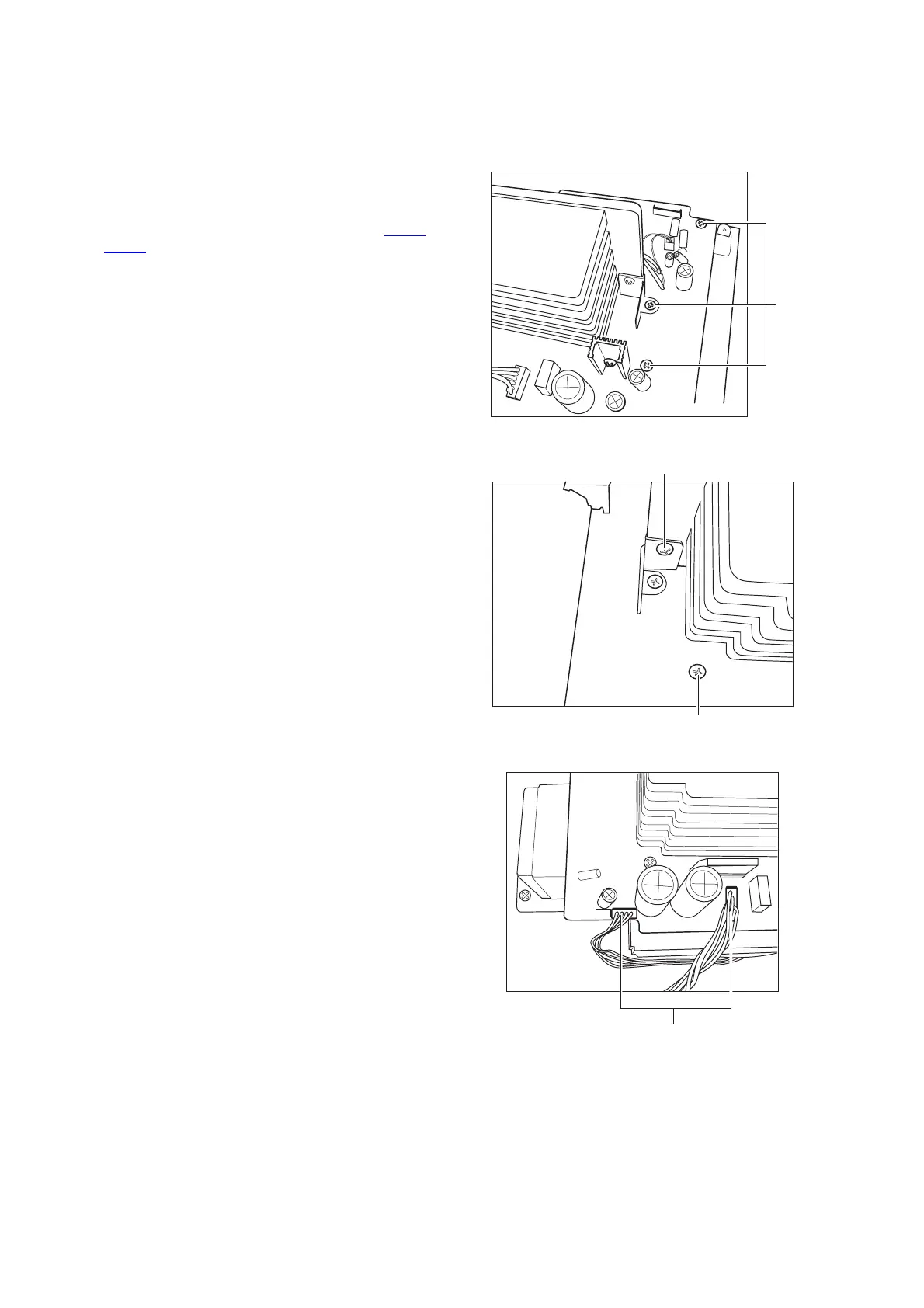

3.1.15 Removing the AMP board
(See Fig.20 to 22)
(1) Removing the three screws N1 of the AMP board between
CD mechanism cover. (See Fig.20)
(2) Removing the two screws N2 of the AMP board between
CD mechanism cover. (See Fig.21)
(3) Disconnect the two wires N3 from the connector CN101
and CN204 on the AMP board. (See Fig.22)
Fig.20
Fig.21
Fig.22
N1
N2
N2
N2
