(No.MB409)1-7

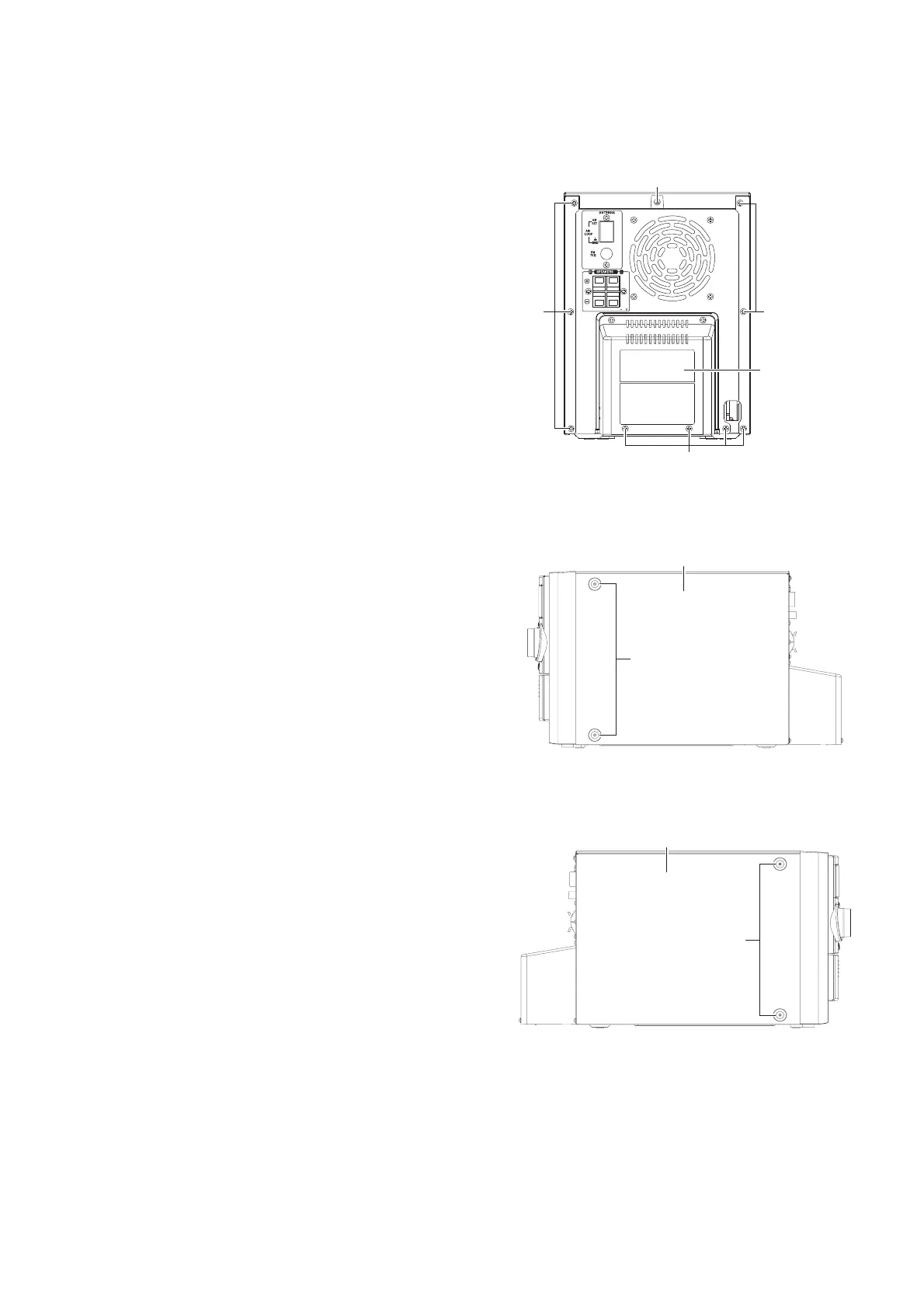

3.1.6 Removing the transformer cover
(See Fig.4)
(1) Remove the ten screws E from top cover.
(2) Take off transformer cover from rear plate.
Fig.4
3.1.7 Removing the right plate
(See Fig.5)
(1) Remove the two screws F from right plate.
(2) Take off right plate from main body.
Fig.5
3.1.8 Removing the left plate
(See Fig.6)
(1) Remove the two screws G from left plate.
(2) Take off left plate from main body.
Fig.6
SPEAKERS IMPEDANCE:6 16
E
E
EE
Transformae
r
cover
F
Right plate
G
Left plate
