3.1.22 Removing the CD mechanism Assembly
(See Fig.32, 33)
(1) Remove the two screws T from the CD mechanism-F and
CD mechanism assembly. (See Fig.32)
(2) Remove the two screws T from the CD mechanism-B and
CD mechanism assembly. (See Fig.33)
(3) Take out CD mechanism assembly from the CD mecha-
nism-F between the CD mechanism-B.

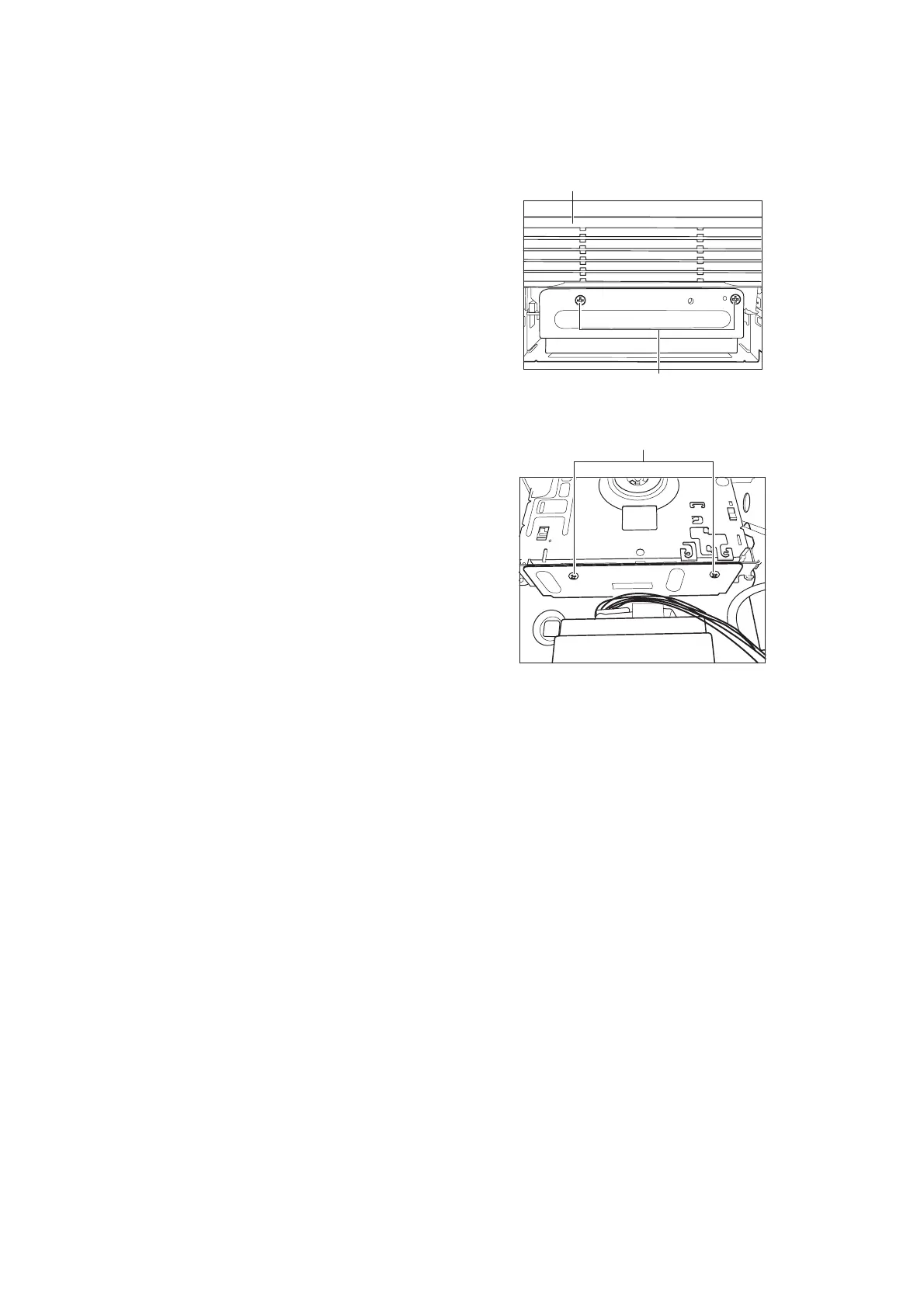

Fig.32
Fig.33
CD MECH Assembly
T
T
