1-14
UX-T77

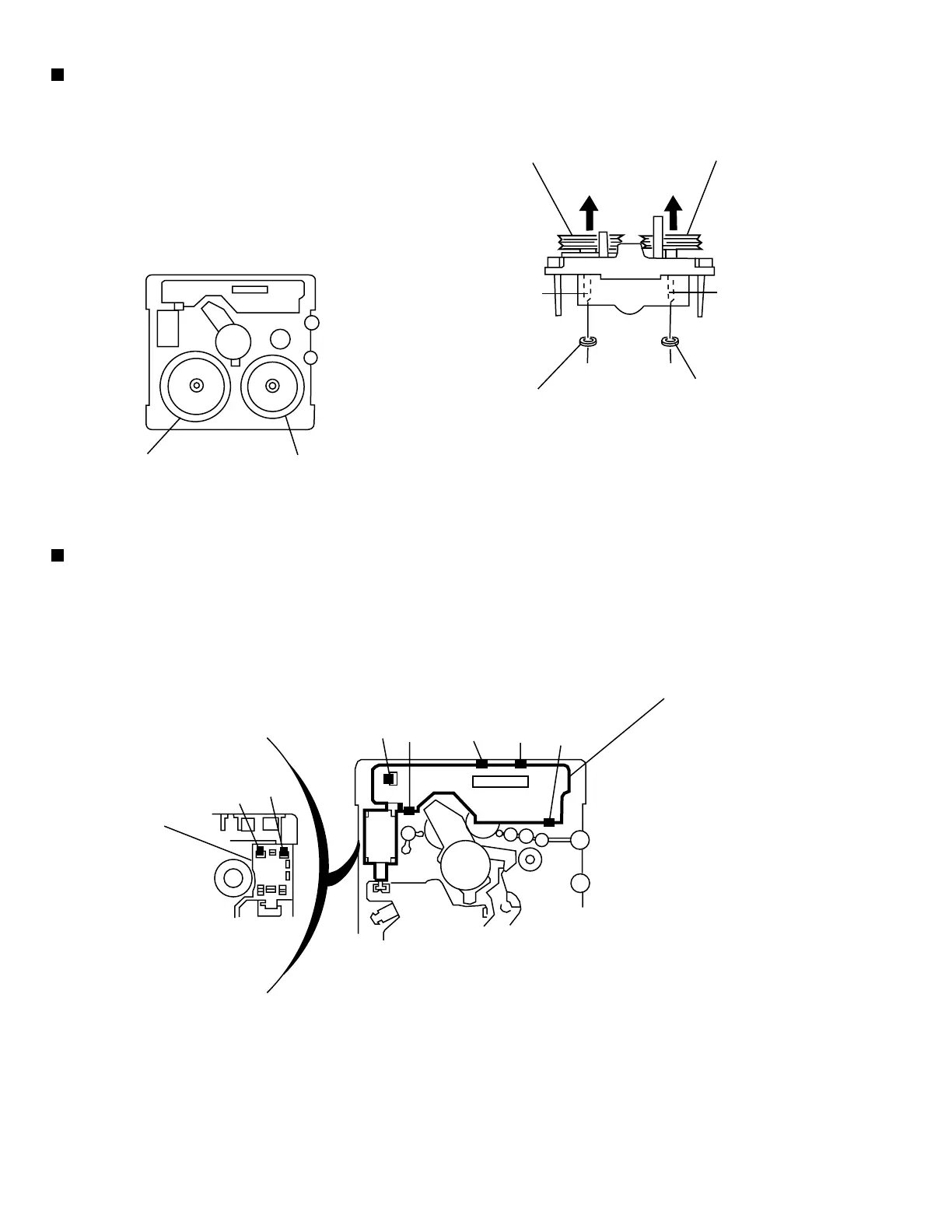

Removing the Flywheel (See Fig. 7 and 8)
1. Remove the head amplifier & mechanism control
P.C. board.
2. Remove the main motor assembly.
3. After turning over the cassette mechanism,
remove the slit washers 1 and fixing the capstan
shafts R and L, and pull out the flywheel R and L
respectively from behind the cassette mechanism.
Removing the Reel Pulse P.C. board and Solenoid
(See Fig. 9)
1. Remove the five pails (a to reattaining the reel pulse board.
2. From the surface of the reel pulse board parts, remove
the two pails Ian retaining the solenoid.
Flywheel R Flywheel L
Capstan shaft R Capstan shaft L
Slit
washer 1
Slit
washer 1
Fig. 8
Flywheel R Flywheel L
Fig. 9
Reel pulse board
Fig. 7
Solenoid
a b c d e
f
g
To Next Page
