JVC UX-T77 - CD Mechanism Assembly and Parts List; Grease Point

UX-T77
3-5
Item
Parts number Parts name
Area
A

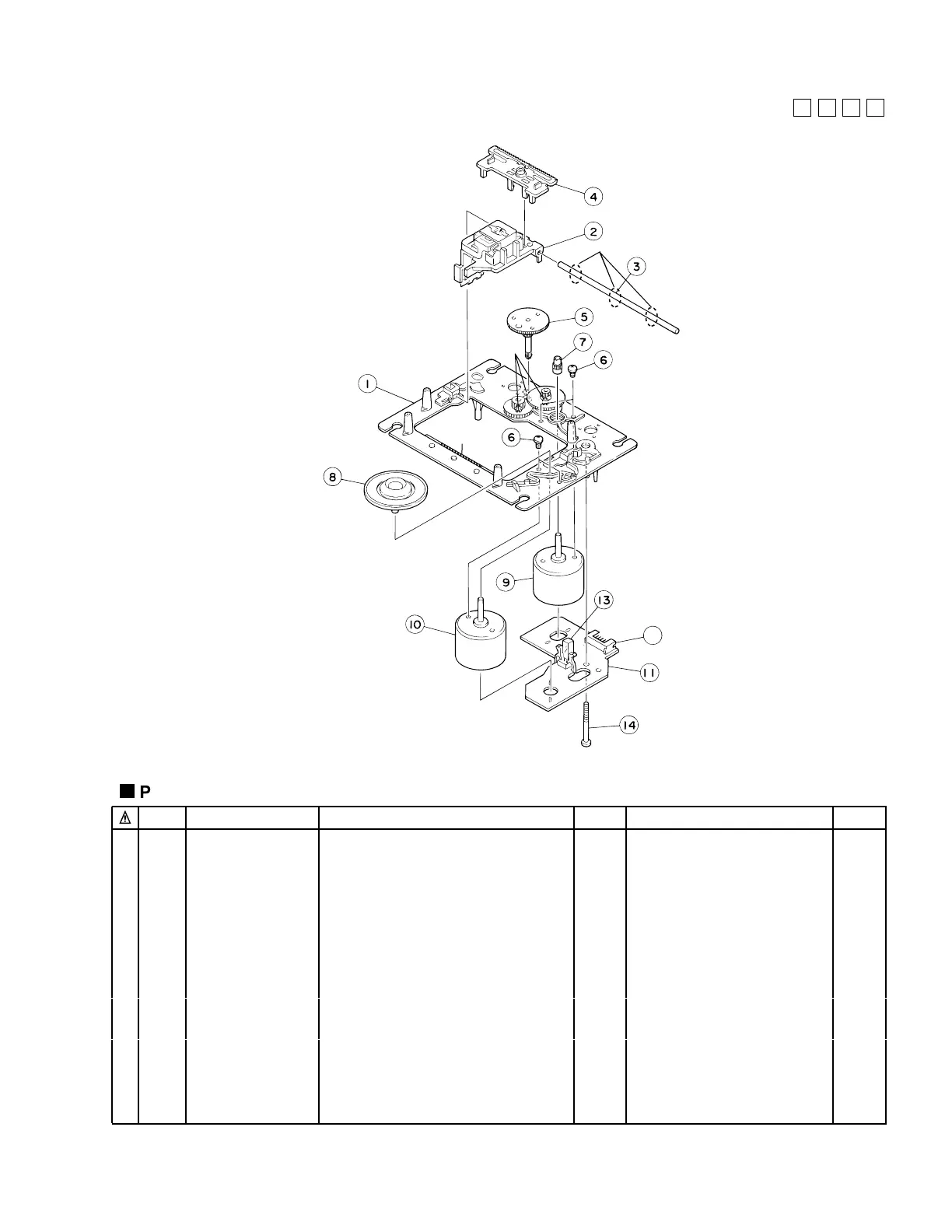

Parts list ( CD mechanism )
Q'ty
Description
Block No
.
M2MM
1 E102501-331SC MECHA BASE ASSY 1
2 OPTIMA-7B OPTICAL PICK UP 1
3 E407782-003SC CD SHAFT 1
4 HQN300031-001PK CD RACK GEAR 1
5 E307745-332SC MECHA GEAR 1
6 QYSDSP2003N SCREW 4
7 E406750-332SC PINION GEAR 1
8 EPB-001PK TURN TABLE ASSY 1
9 E406784-001 FEED MOTOR 1
10 QAR0130-001 SPPINDLE MOTOR 1
11 EMW10190-001 P.C. BOARD 1
12 QGA2001F1-06 6P PLUG ASSY 1 FOR P011
13 QSW0506-001 LEAF SWICH 1 FOR S001
14 E75832-221 SPECIAL SCREW 1
12
FG-87HS
FG-87HS
FG-87HS
Grease point
FG-87HS
(Grease to apply have to be a little for the exchange.)
CD mechanism assembly and parts list
Block No.
M
M
M
2
EXL-M7GB
FOR P.C. BOARD
