XV-N5SL
34
5.7
MM1565AF-X (IC951) : 500mA Regulator
5.7.1

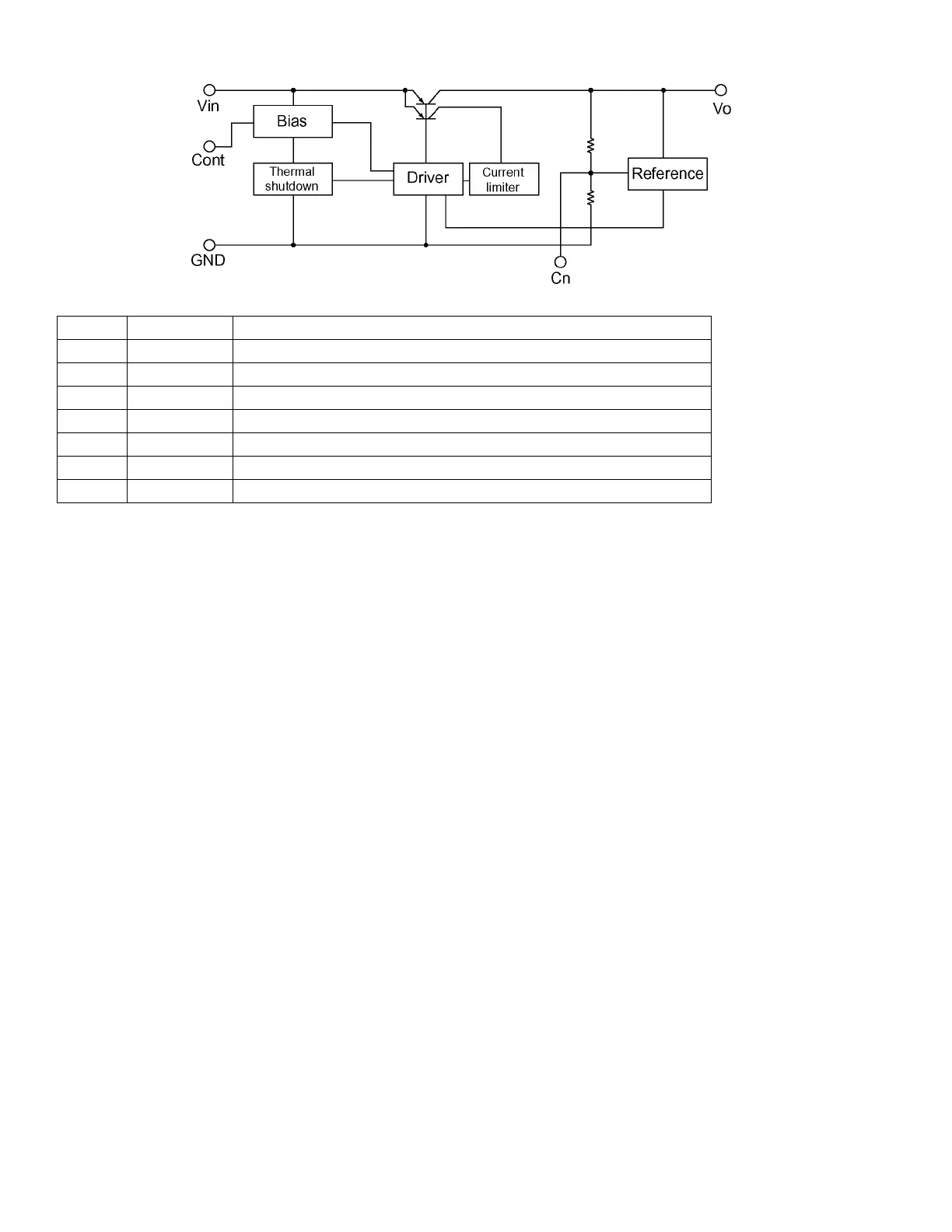

Block diagram
5.7.2
Pin function
Pin No.
Symbol
Function
1
Vout
Output terminal
2
NC
Non connect
3
GND
Connect to ground
4
Cn
Noise decrease t
erminal
5
C
out
Control termi
nal
6
Sub
Substrate (Connect to ground)
7
Vin
Input terminal
