XV-N5SL
10
SECTION 3
Mechanism

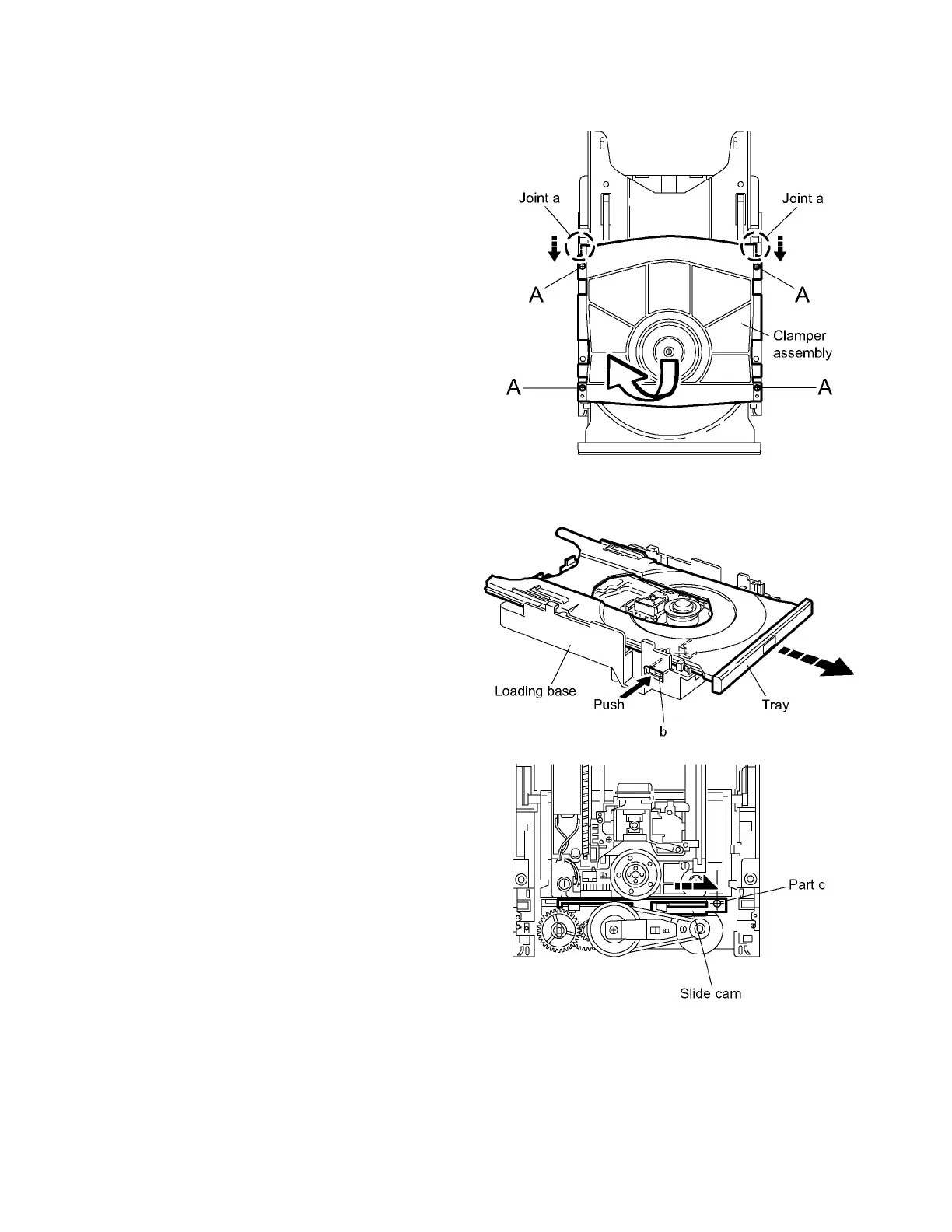

3.1 Loading assembly section
3.1.1 Removing the clamper assembly
(See Fig.1)
(1) Remove the four screws A attaching the clamper assembly.
(2) Move the clamper in the direction of the arrow to release
the two joints a on both sides.
ATTENTION:
When reattaching, fit the clamper to the two joints a.
Fig.1
3.1.2 Removing the tray
(See Fig2. and 3)
• Prior to performing the following procedure, remove
the clamper assembly.
(1) Push b of the slide cam into the slot on the left side
of the loading base until it stops.
(2) Draw out the tray toward the front.
ATTENTION:
Before reattaching the tray, slide the
part c of the slide cam to the right as
shown in Fig.3.
Fig.2
Fig.3
To Next Page
