5.10 MN35505-X (IC703) : DAC

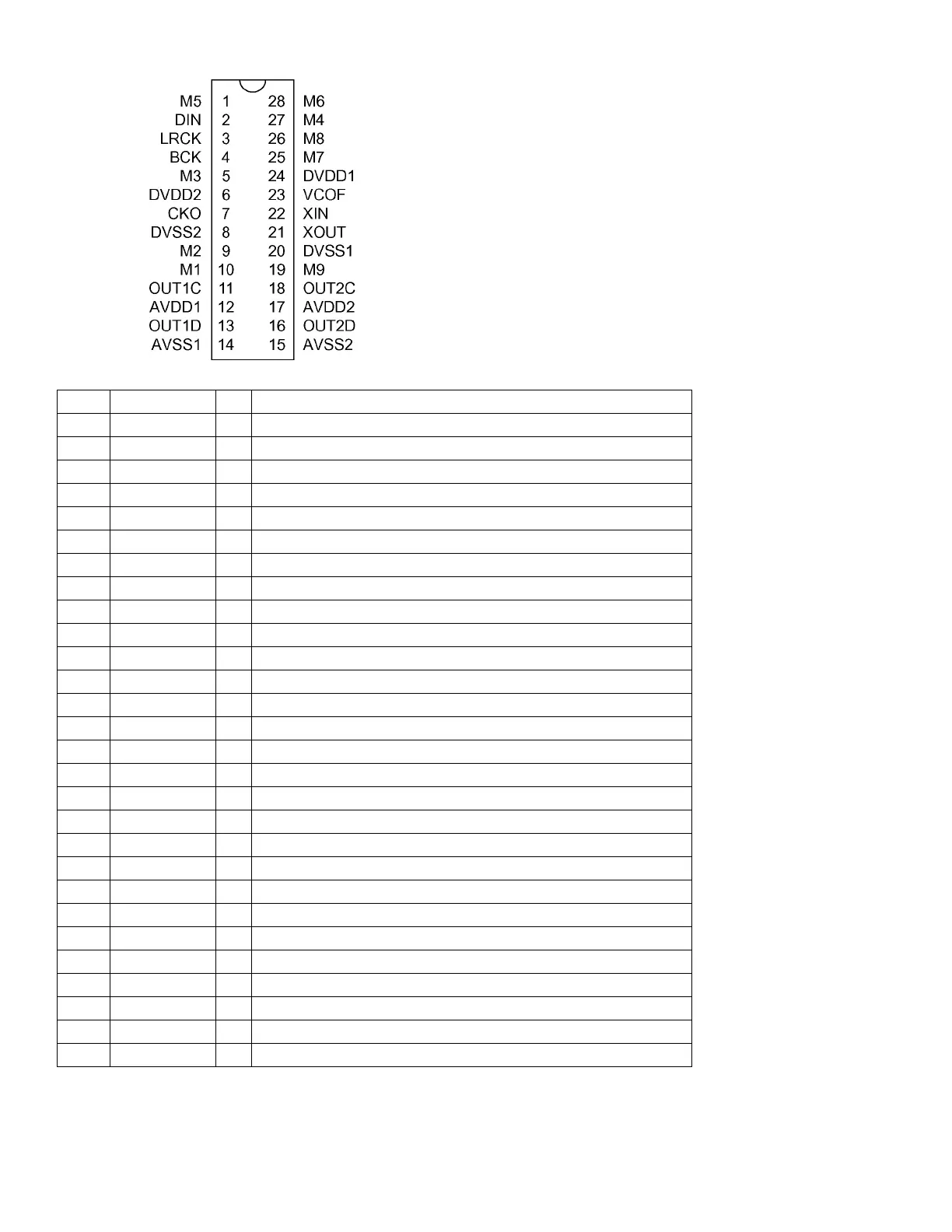

5.10.1 Terminal layout

5.10.2 Pin function

Pin No. Symbol I/O Description

1 M5 I Control signal for DAC

2 DIN I Digital data input

3 LRCK I L and R clock for DAC

4 BCK I Bit clock for DAC

5 M3 I Control signal for DAC

6 DVDD2 - Power supply terminal

7 CKO - Non connect

8 DVSS2 - Connect to ground

9 M2 I Control signal for DAC

10 M1 I Control signal for DAC

11 OUT1C O Analog output 1

12 AVDD1 - Power supply terminal

13 OUT1D O Analog output 1

14 AVSS1 - Connect to ground

15 AVSS2 - Connect to ground

16 OUT2D O Analog output 2

17 AVDD2 - Power supply terminal

18 OUT2C O Analog output 2

19 M9 I Control signal for DAC

20 DVSS1 - Connect to ground

21 XOUT - Non connect

22 XIN - Non connect

23 VCOF I VCO Frequency

24 DVDD1 - Power supply D+5V

25 M7 - Connect to ground

26 M8 - Connect to ground

27 M4 I Control signal for DAC

28 M6 I Clock for control signal
