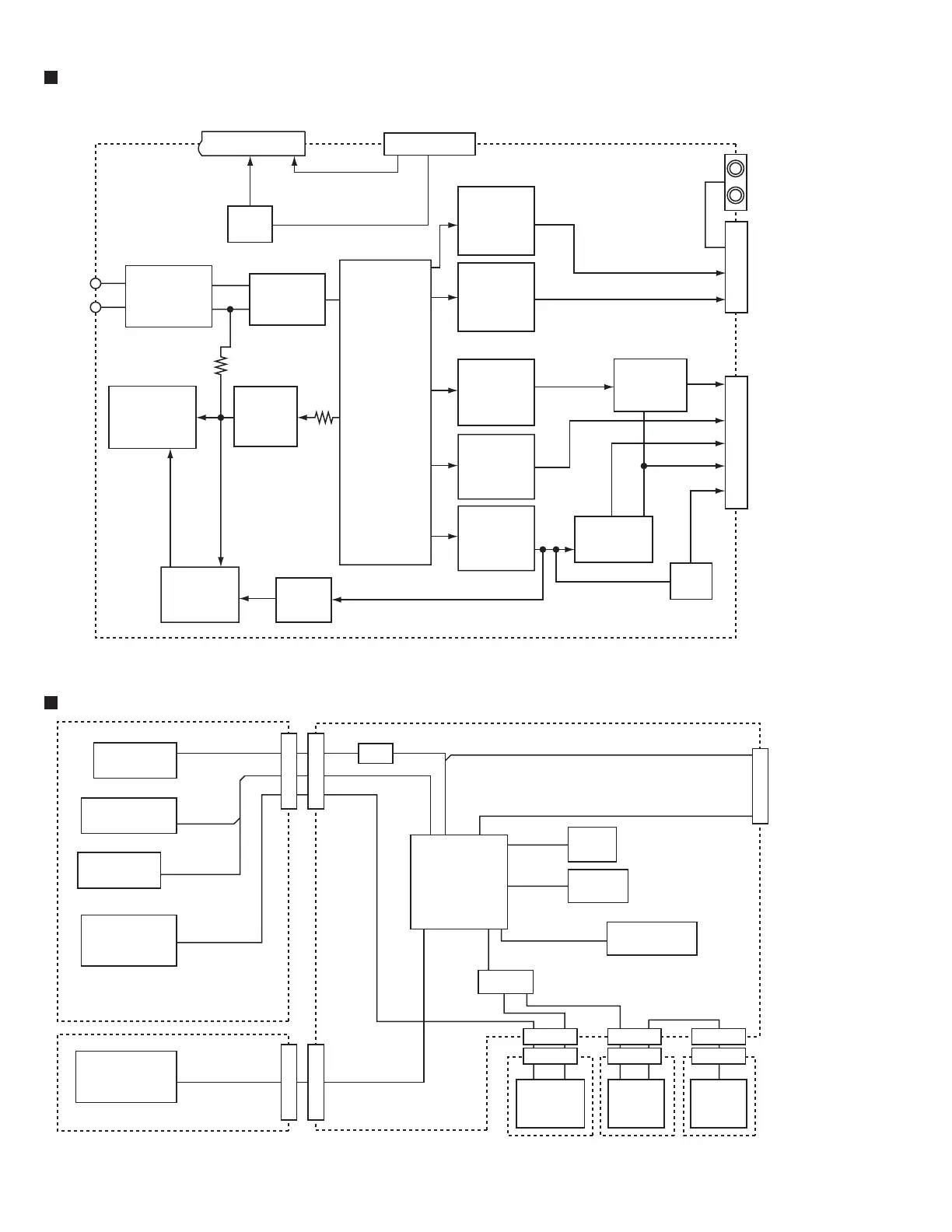

XV
-N5SL
2-4
AC
IN
Line filter
L901
AC
-D
C
D901
Po
w
e
r
transf
ormer
T901
Switching
regulator
IC901
AC-
D
C
D904
C914
Q910
Q911
AC-
D
C
D908
C965,C966
L952
AC-
D
C
D981
C975,C976
L960
AC-
D
C
D954
C979,C980
L955
AC-
D
C
D956
C982,C984
L957
AC-
D
C
D957
C987,C989
L959
FEED BACK
PC901
Q991
D5V REG.
IC951
D998
C978
3.3V REG.
IC952
D5V
M9V
D3.3V
B3.3V
P.
O
N
T
O FW901
SHEET 3
T
O FW903
SHEET 3
+12V
-12V
JT911,JT912
JT913
CN902
A
VCOMP
J901
AV
COMPULINK
P
o
wer supply section (SHEET 7)
J902
T
O CN801 SHEET 4
R/C,G,B
,CV/Y
LCH,RCH,MUTE2
P
ow
er switch
S1
Standby LED
D2
Remote control
IC3
Illumination
light 1
D4
Operation s
witch
S2~S7
System
controller
IC2
Reset
IC2
Illumination
light 2
D11
Back
light 2
D10
Back
light 1
D9
OSC
X1
Q4,Q13
LCD Display
DI1
Q2
CN1
P.
O
N
BL
P.
O
N
ST
ANDBYIND
REMO
POWERSW
CN3
FW3
KEYI0 KEYI1
A
VCOMP P
.ON INT/PROG CPURST
MUTE CLP
TCLOSE
TOPEN
SWUPDN SWOPEN LMMUTE
OSC1,2
NRST
SEG46~0
COM0~3
T
O CN511
SHEET 3
System control & LCD displa
y section (SHEET 6)
CN6
CN5
CN4
CN2
CN7
EL1IND
CN11
CN10
CN9
53
55
Table of Contents
Table of Contents
2
Important Safety Precautions
3
Safety Precautions
3
Warning
3
Caution
3
Critical Parts for Safety
3
Preventing Static Electricity
4
Handling the Traverse Unit (Optical Pickup)
4
Important for Laser Products
5
Precautions for Service
6
Disassembly Method
7
Main Body Section
7
Mechanism
10
Loading Assembly Section
10
Traverse Mechanism Assembly Section
14
Adjustment Method
17
Test Mode Setting Method
17
Initialization Method
17
Method of Displaying Version of Microcomputer
17
Display of Current Value of Laser
18
Display of Jitter Value
18
Upgrading of Firmware
19
Display of Region Code
19
Flap Adjustment of the Pick-Up Guide Shaft
20
Attention When Pick-Up Is Exchanged
21
Confirm Method of Operation
22
Troubleshooting
23
Check Points for each Error
24
Description of Major Ics
27
74Lcx373Mtc-X(Ic512,Ic513)
27
BA5983FM-X (IC201) : 4CH Driver
28
AN8703FH-V (IC101) : Frontend Processor
29
BA6664FM-X (IC251) : 3Phase Motor Driver
30
K4S641632F-Tc75 (Ic506) :Cmos Sdram
32
Mn101C57Dlr(Ic1):System Controller
33
MM1565AF-X (IC951) : 500Ma Regulator
34
MN102L62GLF3 (IC401) : Unit CPU
35
MN103S26EGA (IC301) : Super Optical Disc Controller
36
Mn35505-X (Ic703) : Dac
40
NDV8601VWA-BE(IC501):AV Decoder
41
S-93C66Afj-X (Ic451,Ic510) : Eeprom
45
Sst39Vf160-7Cek (Ic509) : 16M Eeprom
46
STR-G6551-F8 (IC901) : Switch Regulator
47
TC74HC08AF-X(IC704) : 2-Input and Gate
47
Glossary of Term and Abbreviations(for AV Decoder Section)
48
