www.krain.com19

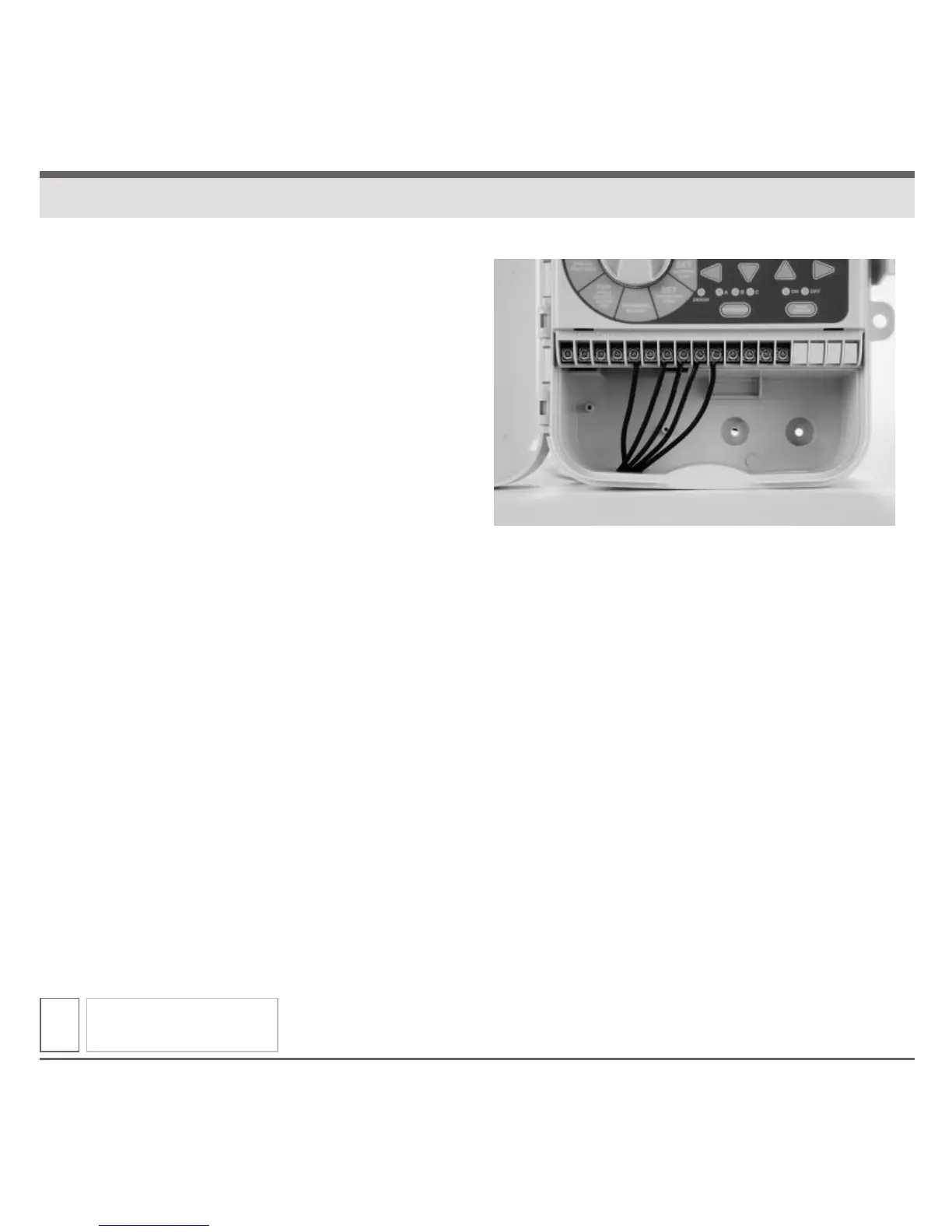

1. Connect each valve with its individual power
wire to one of the numbered screw terminals.
Station numbers are engraved in the mid-box
with the following numbering: 1, 2, 3, 4, 5, 6, 7,
8, 9, 10, 11 and 12.
2. Connect the common field wire from all valves
to the terminal screw located at the left side
between the Sensor and “P” (Pump) terminal
screws.
3. Only use code approved wiring for underground
installation.
CONNECTING VALVE WIRES
