4.3 Assembling the mechatronic unit

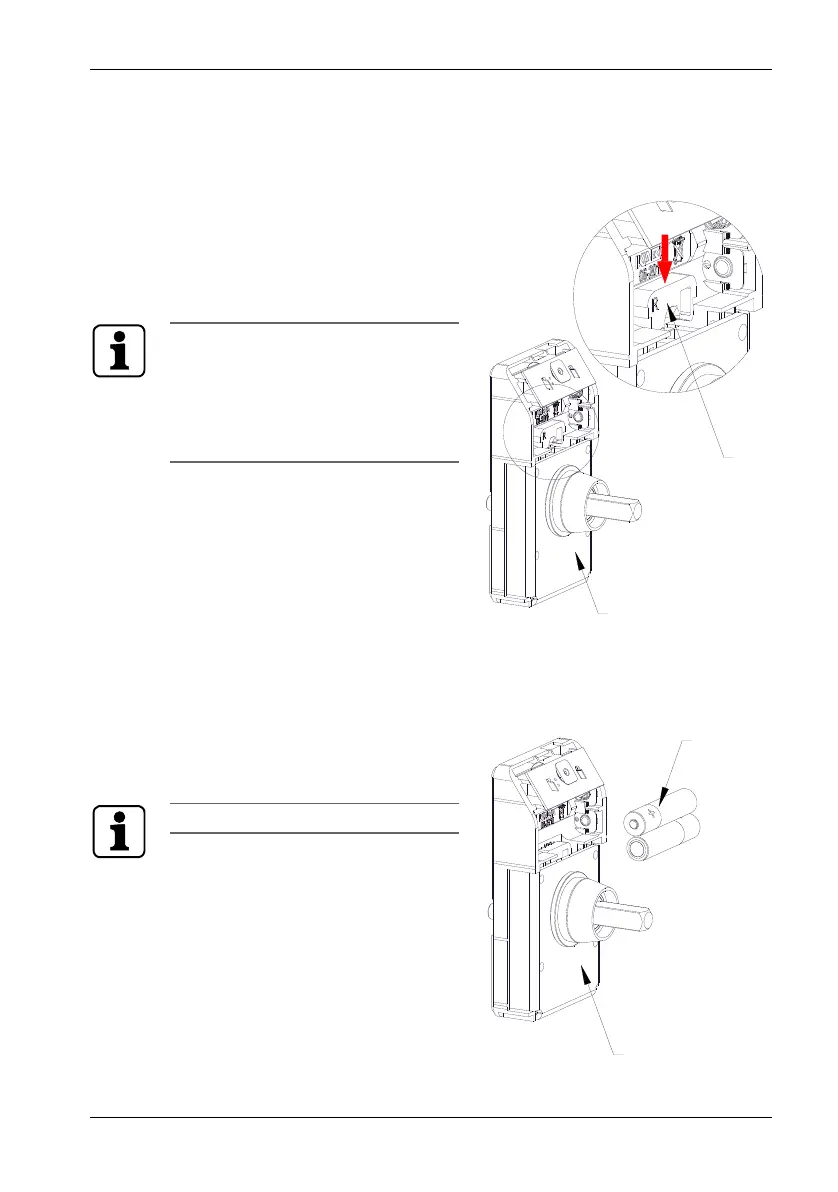

Inserting the direction pin
1. Insert direction pin (6) into the
mechatronic unit (1) so that the
"R" can be read from the front on
a right hand door and the "L" on a
left hand door during use.
To make it easier to slide in, turn the
square spindle of the mechatronic unit
(1) anti-clockwise for right-hand doors,
and clockwise for left-hand doors, as
far as the limit stop when inserting the
direction pin (6)!
Inserting batteries
2. Insert batteries (7) into the
mechatronic unit (1) as shown.
Ensure correct battery polarity!
7
1
Detail X
6
1
