Kaba ILCO E-770 Series - Test Mechanical Override Function

9 • Installing the key-in-knob mechanical
override model

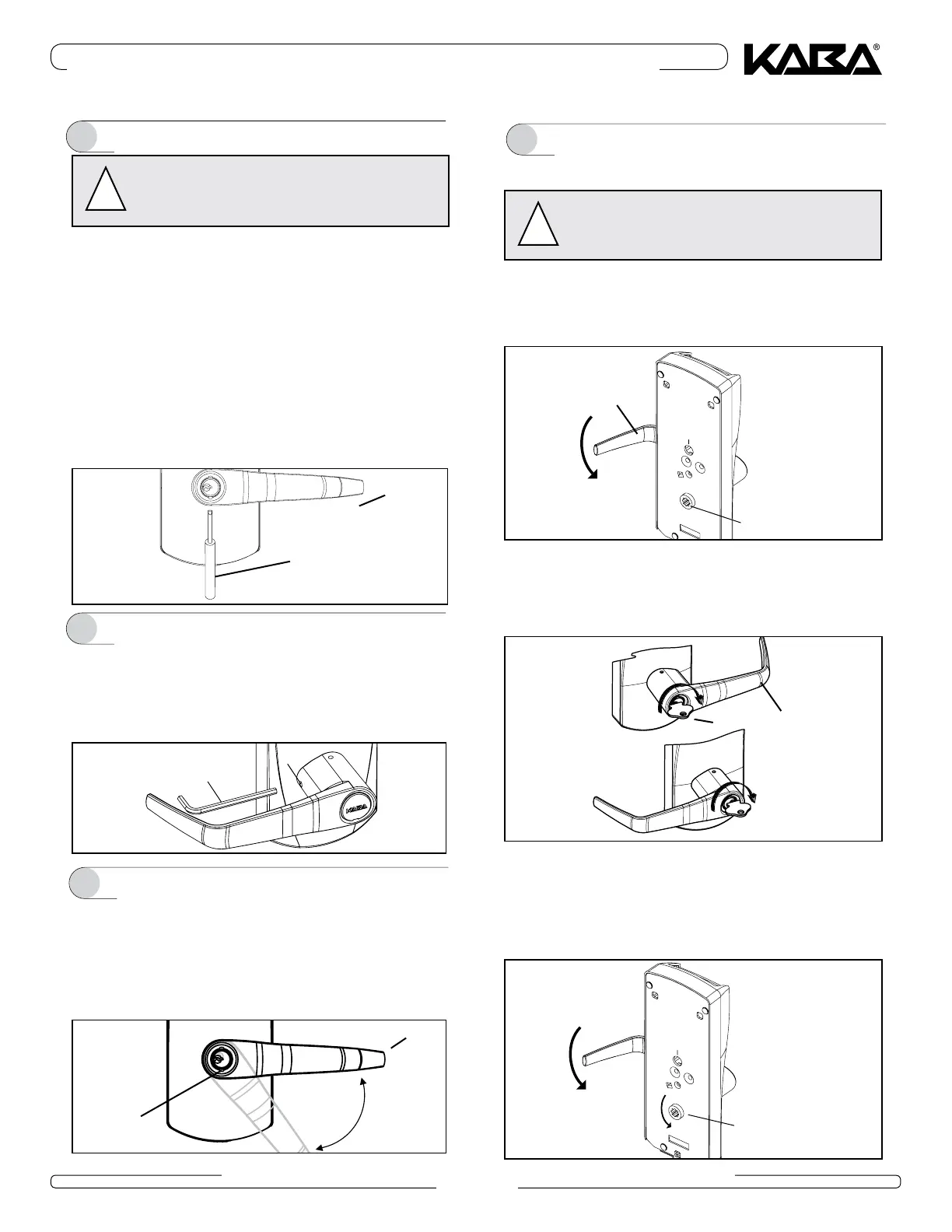

PK2915-T 07_2014 E-760/770/790 SERIES RETROFIT INSTALLATION GUIDE
Page 16
6
6a
Verify the attachment of the lever handle
Very Important: To verify that the lever handle has been
correctly attached to the housing:
!
10. Remove key (N)
11. Insert a small flat screwdriver (tool T, see page 12) into the
hole on the underside of the lever handle (H) and push in
the lever catch (F) see fig 10A.
12. Pull on the lever handle (H).
You should not be able to remove the lever handle (H). If it comes
off of the housing, you did not assemble the lock correctly.
Return to steps 2, 3, 4 & 5 and make sure that the lever (H) looks
like Fig. 10 and repeat this verification process. (Step 6)
Fig. 10A
(T) Small screwdriver or
equivalent tool
(H)
Adjust the lever feel
If applicable, to reduce the lever play, using the 5/64 allen key
(P1), tighten the set screw (O1) while pushing the lever against
the front housing. Make sure the lever rotates properly after
tighting the set screw (O1) See fig 10B.
Fig. 10B
Test the movement of the lever handle
(remove the key (N) in cylinder (J))
13. Turn the handle (H) clockwise (for a right-handed lock) or
counter-clockwise (for a left-handed lock)
14. Release the handle (H) slowly. It should return freely to its
horizontal position. (Fig.11)
Fig. 11
(H)
Cylinder
(J)
Test the mechanical override function
(Complete all tests in Section 4, pages 14 &
15 after lock is assembled on the door)
* This test can only be performed when the lock
is not affixed to the door.
!
16. Without using the key (N), turn the lever handle (H) clock-
wise (for Right-handed locks) or counter-clockwise (for Left-
handed locks). The inside drive hub (B) should not rotate when
the handle (H) turns. (Fig. 12)
Fig. 12
(B) inside drive hub does
not move
(H)
17. With the lever handle (H) in the horizontal position, insert
the key (N) into the cylinder (J) and turn it clockwise until it
stops. (This applies to both Right and Left-handed locks, see
Fig.13)
Fig. 13
(H)
(N)
18. Let go of the key (N), and again turn the lever handle (H)
clockwise (for Right-handed locks) or counter-clockwise (for
Left-handed locks). Now the inside drive hub (B) should rotate
in the same direction as the lever handle (H) when it is turned.
(Fig. 14)
Fig. 14
(B) inside drive hub
rotates
(P1)
(01)
