5 •
INSTALL THE E-760/770/790 OUTSIDE HOUSING
AND INSIDE TRIM ASSEMBLY
PK2915-T 07_2014 E-760/770/790 SERIES RETROFIT INSTALLATION GUIDE
Page 8
Three AA batteries should already be installed in the battery holder (C).
Insert the battery holder into the outside housing and secure it using the
6-32 x
5
/
16
" (7.9mm) Torx drive screw (I).
4 Install the Batteries
If installing the lock outdoors, use the Outdoor Kit
(part #062-510180). Substitute the stainless steel bat-
tery screw for the screw provided with the lock.
For weather conditions below 32°F (0°C), replace the
batteries provided with the lock with lithium batteries
(part #132-510183-K).
Warning! To avoid possible explosion and risk of injury
or fire, double-check the polarity of lithium batteries.
!
If the lock makes a continuous buzzing noise or the red
LED lights continuously, reset the electronics by remov-
ing the battery holder for ten seconds, then reinsert it.
!

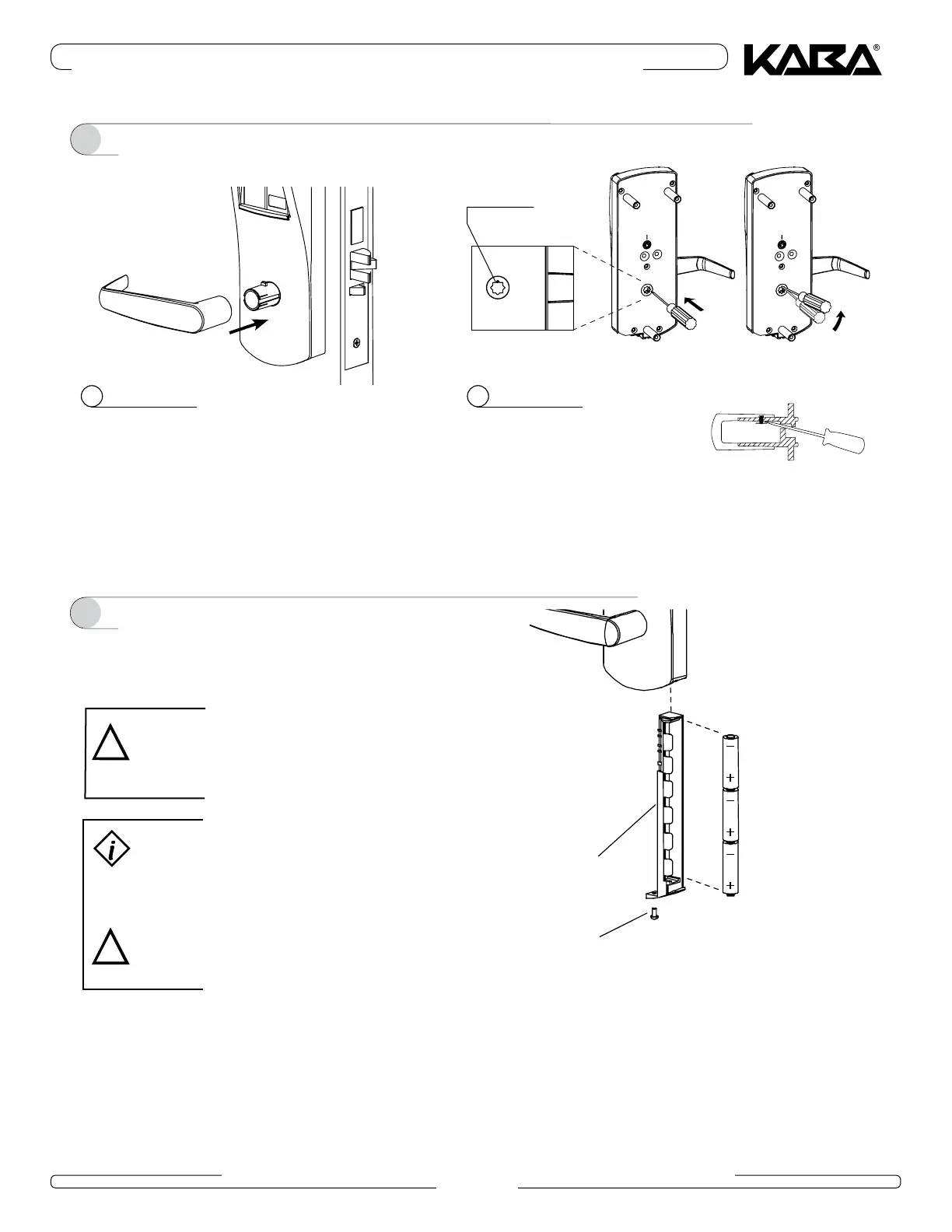

Assemble the lever on the outside housing, in the horizontal rest
position appropriate to the handing of the door as shown. Simply push
the lever onto the tube until it clicks in place. If more force is
required, use a rubber mallet.
Test the attachment of the handle by pulling smartly on it.
The lever is field reversible. If the hand-
ing is incorrect, insert a small pick or
flat screwdriver in the hole in the hub as
shown. Gently pry back the spring clip
inside the hub, and remove the handle.
A
B
3 Install the Outside Lever
Access Hole
cut-away view
To Next Page
