10

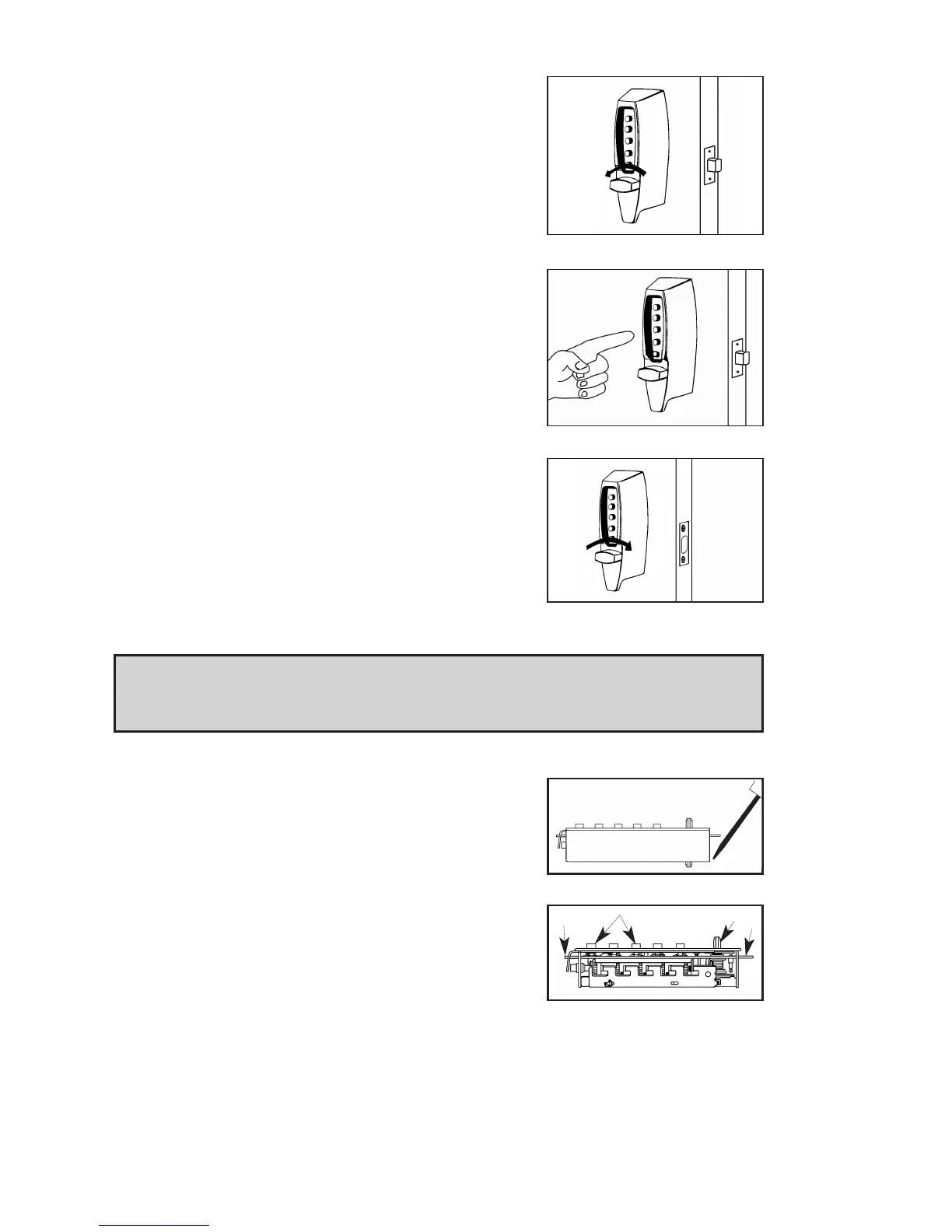

J-8 If a wrong combination is entered after the
desired combination has been programmed
into the lock, turn the outside thumbturn to
the left (counterclockwise) to the stop position
and release (See Figure 10-7). This will clear
any previously depressed buttons. Enter the
correct new combination (See Figure 10-8).
Turn the thumbturn to the right (clockwise) to
the stop position and release (See Figure 10-9).
The thumbturn should rotate. The bolt will be
retracted flush with the face plate. The correct
combination must be entered each time you
want to unlock the door.
J-9 If, without entering the combination, you can
retract the bolt by turning the outside thumb-
turn to the right, it means that a step was
done out of order and therefore no combina-
tion was entered. In this case, you must repeat
J-1 to J-7 but omit J-2, as the lock does not
have a combination.
K. INSTRUCTIONS FOR RESETTING
UNKNOWN COMBINATIONS
Remove and set aside the back plate held by on 4 screws. Remove the drive
cam assembly located on the control shaft on the back of the chamber.
Remove the combination chamber, held by 2 screws, from the lock.
To remove the 3-sided dust cover marked "Kaba Simplex," place the
combination chamber in the position below.
K-1 Place a small screwdriver on the edge of the
3-sided dust cover and push down on the
screwdriver (See Figure 11-1). The cover
should pop loose. Once it does, pull the
cover off of the combination chamber.
K-2 Hold the chamber in one hand by the screw
tab (b) on each end with the key-stems (c)
facing you and the control shaft (d) at the
bottom (See Figure 11-2).
K-3 Rotate the control shaft (d) counter-clockwise and release to clear the
chamber (See Figure 11-2).
K-4 Look at the 5 code gears (e). If any code gear pockets (f) are already
at the shear line (open position), ignore them. They are not used in
the combination (See Figure 11-3).
10-7
10-9
10-8
d
b
b
c (5)
(3 sided dust cover)
11-1
11-2
