11

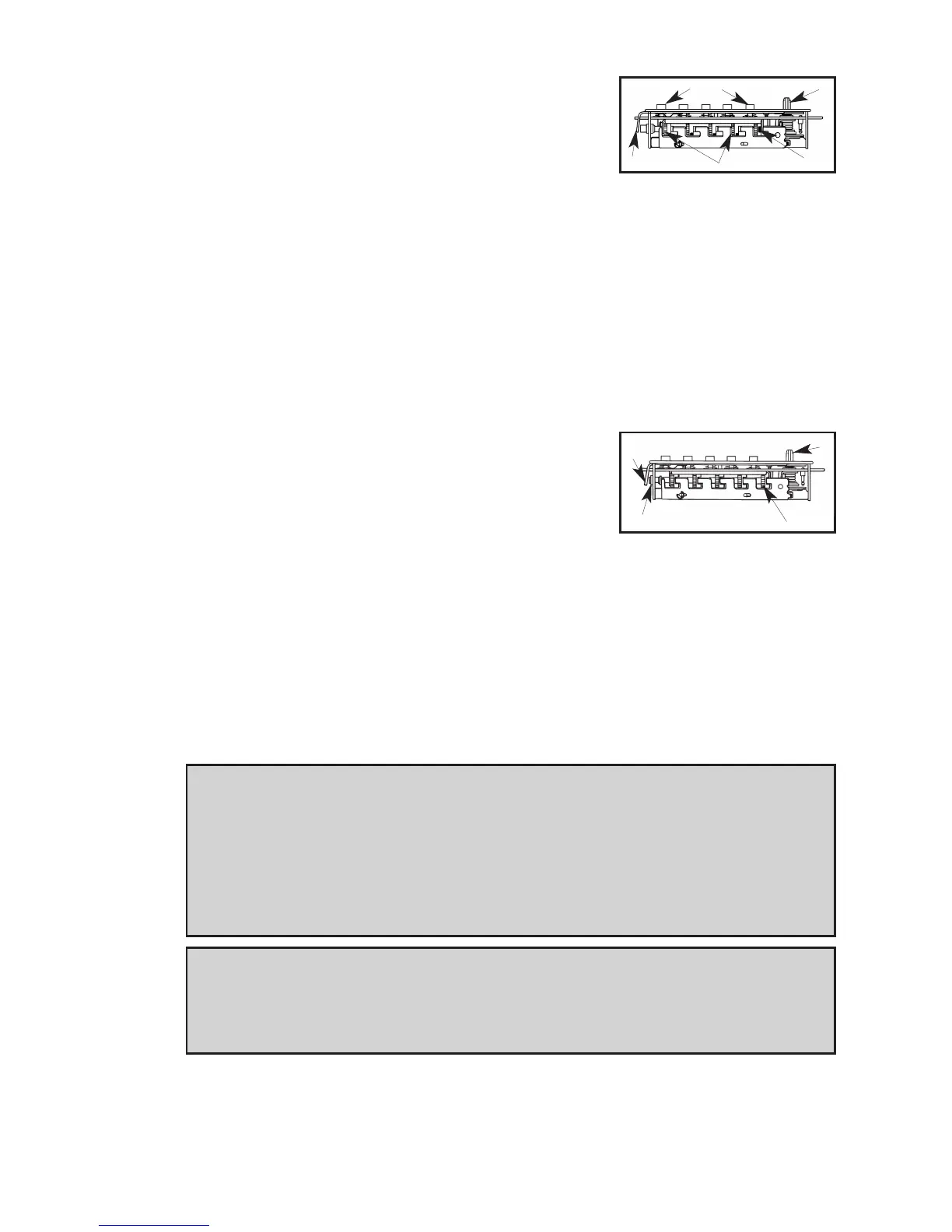

K-5 Find the code gear pocket/s (f) that is
farthest away from the shear line (open
position). Depress that key-stem/s (c) and
release (See Figure 11-3).
K-6 Find the code gear pocket/s (f) that is the next
farthest away from the shear line (open position). Depress that key-stem/s
(c) and release (See Figure 11-3).
K-7 Repeat step K-6 until all code gear pockets (f) are at the shear line
(open position).
K-8 If all the code gear pockets (f) are not lined up at the shear line
(open position), start over at step K-3.
K-9 Depress the lockout slide (g) at the top of the chamber and release. (looks
like one end of a spark plug) (See Figure 11-4).
K-10 Rotate the control shaft (d) counter-
clockwise to clear the chamber and release.
The lockout slide (g) should pop out (button
will not move yet) (See Figure 11-4).
K-11 Depress the key-stem/s (c) that you want in
your new combination, releasing each after it is
depressed (See Figure 11-2).
K-12 Once you have depressed all the digits in your new combination, turn the
control shaft (d) clockwise (See Figure 11-4). The code change button (h)
under lockout slide (g), should pop up (See Figure 11-4). Your new com-
bination is now set.
K-13 Look at the code gear pockets (f). The numbers in you new combination
should not be at the shear line (open position) (See Figure 11-3).
Reinstallation: Replace the 3-sided dust cover marked “Kaba Simplex.” Make
sure the staked joints on both end plates fit through the slots on the dust
cover. Stake the end 2 plate joints. Replace the combination chamber into the
lock using the same 2 screws removed earlier. Slip the drive cam assembly
back on the control shaft of the chamber assuring it is in the same position
as prior to removal. Re-secure the back plate, assuring the tailpieces are seat-
ed correctly using the same 2 screws removed earlier.
Testing: Enter the combination you preset during the reset process. Turn the
outside thumbturn to the right (clockwise). The latch should retract. If the
latch does not retract, turn the outside thumbturn left (counter-clockwise)
and release, then enter the code again.
f
g
c (5)
e
(5)
h
g
f
d
11-3
11-4
d
