9
J. CHECKING THE LOCK’S OPERATION
IMPORTANT: The following steps MUST be performed while the door is open.
J-1 Turn the outside thumbturn to the left (counterclockwise) until it stops,
then release it.
J-2 Press the preset factory combination (2 and 4 pressed together, release,
then 3, and release). A distinctive click must be felt to indicate that the
buttons have been correctly depressed.
J-3 Turn the outside thumbturn to the right (clockwise) until it stops; the latch

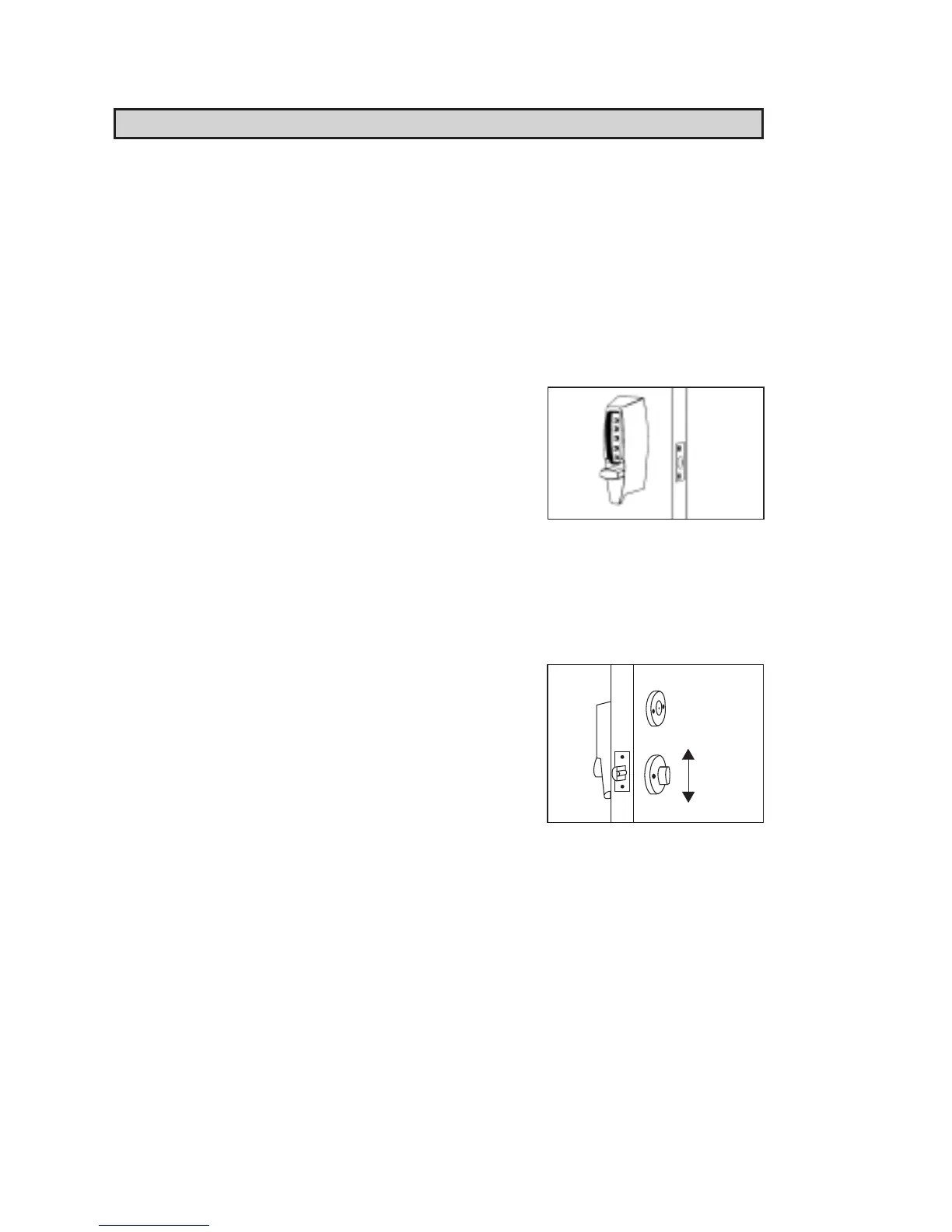

should fully retract (See Figure 10-1). If the latch does not retract, turn
the thumbturn to the left (counterclockwise) until it stops. Release
it and repeat Step 2.
J-4 Release the outside thumbturn; the latch will
return to its fully extended position.
J-5 Turn the inside thumbturn A in either direction
until it stops; the latch will retract as in Step 3.
J-6 Release the inside thumbturn and the latch
will return to its initial fully extended position.
J-7 If the latch does not fully retract, loosen the two thru-bolts of the inside
thumbturn assembly. Move the inside thumbturn assembly upward or
downward to properly center the inside thumbturn assembly with
the tailpiece, (See Figure 10-2) then tighten the thru-bolts, and repeat
Steps 1 to 5.
J-8 If the latch (See Figure 10-2) still does not
fully retract after repeating Step 7, loosen the
two thru-bolts of the inside thumbturn assem-
bly A and combination change assembly B
(See Figure 10-2). Move the lock upward or
downward to properly align both tailpieces of
the inside thumbturn assembly and combina-
tion change assembly. Tighten the four thru-
bolts and repeat Steps 1 to 5 to ensure proper operation.
Verify the Combination Change Assembly
10-1
10-2
B
A
