8

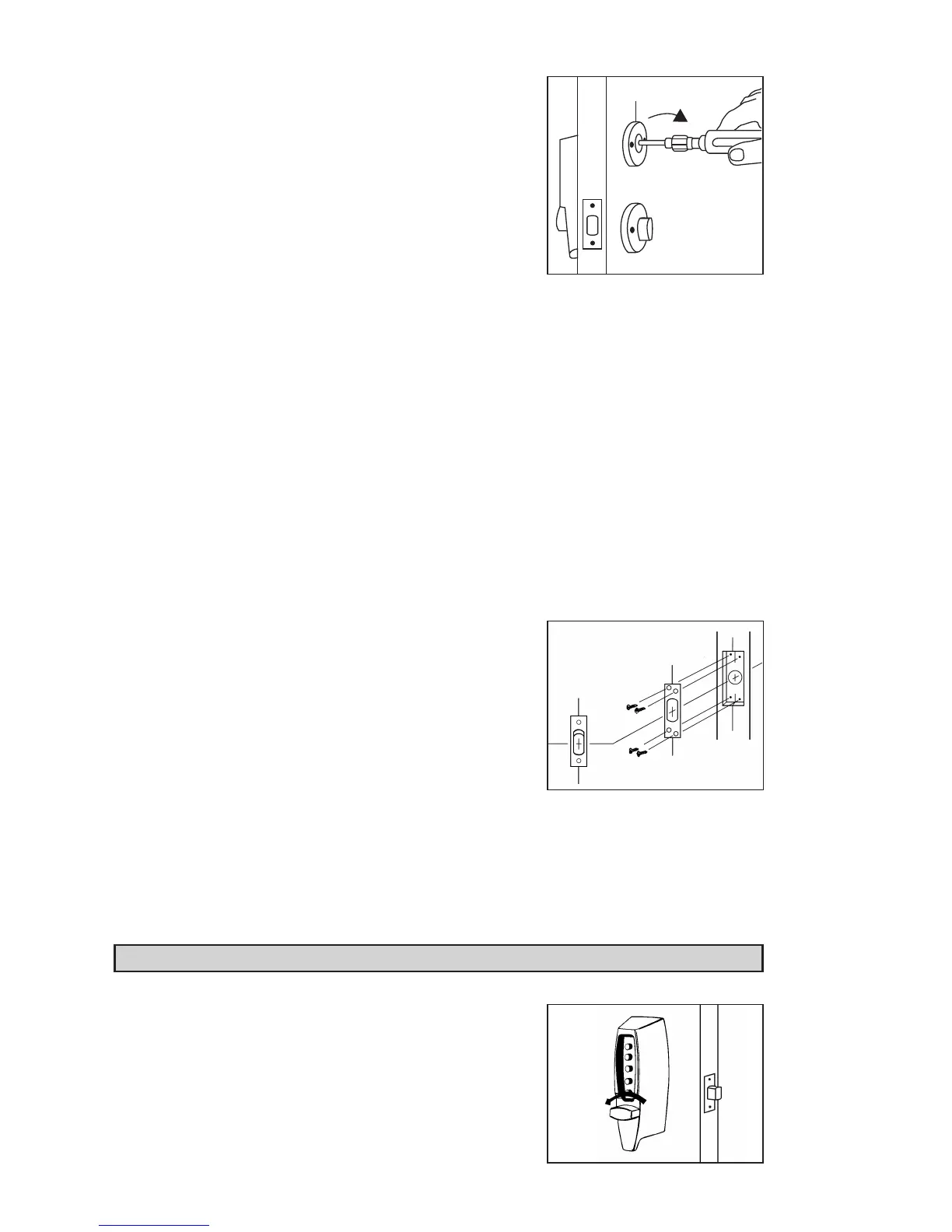

Verify the Combination Change Assembly
H-8 Insert the tip of a Phillips-head screwdriver
into the combination change assembly B
(See Figure 8-5).
H-9 Turn the central piece to the right (clockwise)
until it stops, DO NOT FORCE, (approximately
30˚ degrees) (See Figure 8-5).
H-10 Remove the screwdriver; the central piece
should automatically return to its initial
position.
H-11 If the central piece jams and does not return to its initial position, loosen
the two thru-bolts and push the combination change assembly B (See
Figure 8-5) upward or downward to properly center the tailpiece of the
combination change assembly, then tighten the two thru-bolts, and repeat
Steps H-8 to H-11.
I. INSTALLING THE STRIKE
I-1 Mark the vertical and horizontal center lines of the strike on the door frame
by using the center line of the bolt. Make sure the vertical and horizontal
center lines are well aligned with the bolt center lines.
I-2 Where the center lines meet, drill a 1" (25 mm)
diameter by 1
1
⁄8" (28 mm) deep hole to guaran-
tee that the bolt will be completely extended in
the door jam (See Figure 9-1).
I-3 Mortise (chisel out) the marked area to
1
⁄8" (3
mm) deep so that the strike will be flush with
the door frame.
I-4 Secure the strike with the four screws provided.
I-5 Close the door and turn the thumbturn to extend the bolt to ensure proper
alignment with the strike plate hole.
J. SETTING A NEW COMBINATION
IMPORTANT: The following steps must be performed while the DOOR IS OPEN.
The factory-set code is 2 and 4 pressed simultaneously, then 3. This code
should be changed as soon as the lock is installed.
J-1 Turn the outside thumbturn to the left (coun-
terclockwise) to the stop position (See Figure
10-1) and return it to the right (clockwise) slow-
ly to the horizontal position. This will clear any
random buttons previously depressed.
8-5
B
9-1.
10-1
