Kaba SIMPLEX 7108 Series User Manual

2

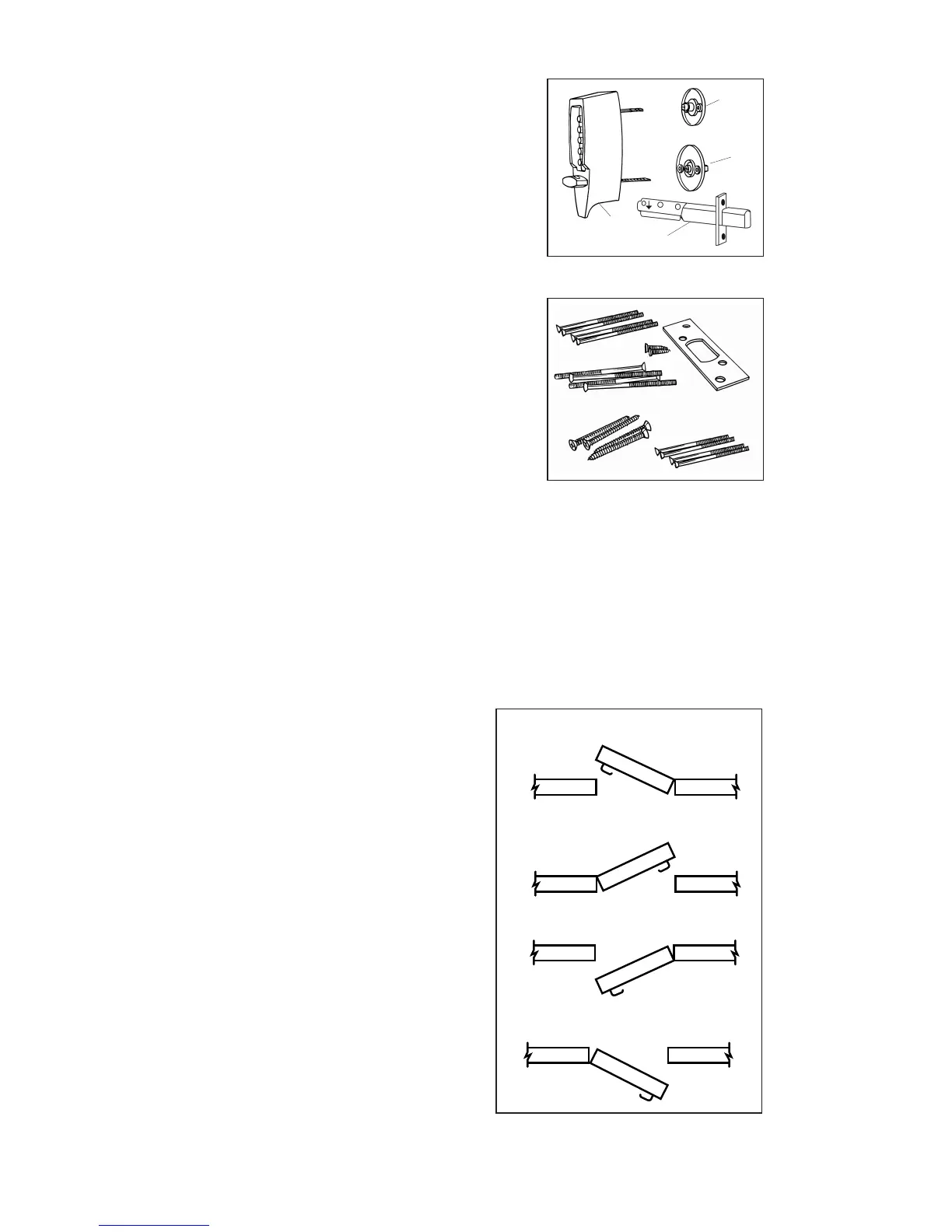

CHECKLIST
Use this checklist to make sure that
everything has been included. 
 A - Front Lock
 C - Dead Bolt 7102 (2
3
⁄4") or
7108 (2
3
⁄8") (model specific)
 D - Inside Thumbturn Assembly
 E - Inside Combination Change Assembly
Screw Pack:
 F - Strike Plate
 G - 4 thru-bolts (3")
 H - 2 (bolt) combination wood/metal screws
 I - 4 combination wood/metal screws
 J - 4 Thru bolts (2
3
⁄8")
 K - 4 Thru bolts (2")
Templates (in center of booklet)
DETERMINE THE HAND OF YOUR DOOR
Many of the installation instructions refer to the handing of your door. The hand
of the door is determined with the door in the closed position, from the exterior
or pushbutton side of the door.
A) Right Hand Door. Door opens inward
(push). Hinged on the right side.
B) Left Hand Door. Door opens inward
(push). Hinged on the left side.
C) Right Hand Reverse Door. Door opens
outward (pull). Hinged on the right side.
D) Left Hand Reverse Door. Door opens out-
ward (pull). Hinged on the left side.
LH - Left Hand
RH - Right Hand
LHR - Left Hand Reverse
RHR - Right Hand Reverse
A
B
C
D

A
E
D
C
F
H
I
K
G
J
