4 Operation
Kaco Gerätetechnik GmbH 5 Operator’s Instructions Powador
Please check whether the cause of your disturbance is
a general power failure or if the fuse between the power
meter and inverter has blown. In the event of a fuse
failure please contact your authorized electrician. In
case of a general power failure please wait until the
problem has been resolved. The installation will restart
automatically.
4.3 “Display” and “Set” buttons

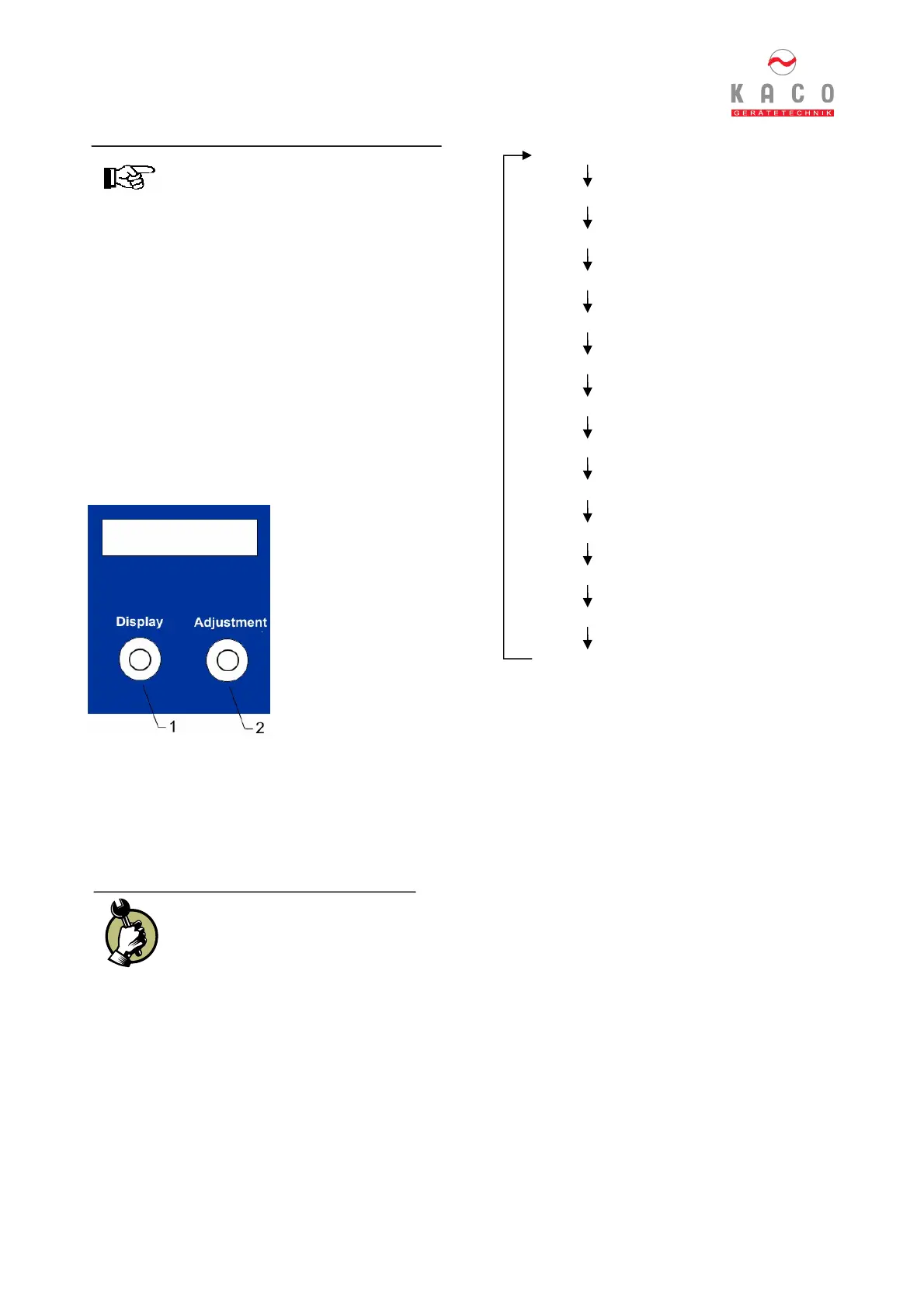

Figure 4.3: Operating keys of the Powador
The “Display” key (1) is used to toggle between the
various read values and data. Using the “Adjustment”
key (2) you may change the setting parameters, such
as date and hour. The menu guidance is subdivided
into two levels. Level 1 (display mode) is used to
display the measured values, e.g. solar generator
voltage. Only the “Display” key (1) is active at this level.
The menus are continuous, i.e. after reaching the last
entry of the menu and pressing the “Display” key (1)
the first entry is displayed again (s. Figure 4.4).
Figure 4.4: Display Mode Menu
If the “Display” key on the inverter is not operated for a
longer period of time, the display will automatically
show the currently fed-in power.
Keep this key pressed for approx. 1
second to select which measured value
is to be displayed.
Important!
During feeding power failure (power
failure in the public grid) the “Failure”
LED is not lit up. In this case all LEDs
and the display are deactivated and
the inverter is completely shut down.
Only after the feeding power has
returned can the inverter resume its
normal operation.
Display of inverter type
Generator voltage and current
Grid voltage, current and power
Daily peak capacity
Temperature inside device
Status display
Date and hour
Yield today
Yield during the current year
Total yield
Operating hours today
Operating hours per year
Total operating hours
