Katherm HK
Assembly, installation and operating instructions
23

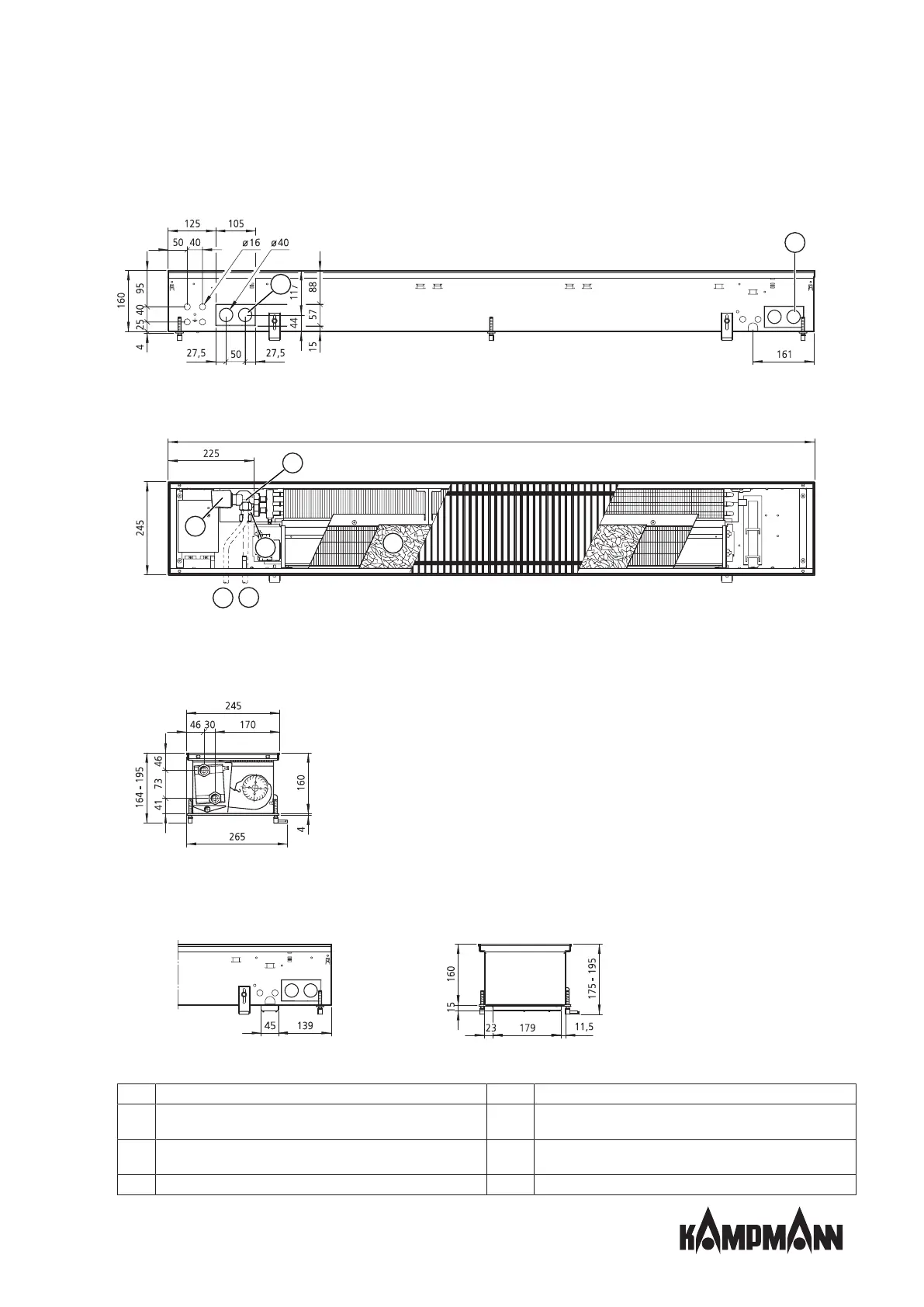

Katherm HK 245, 2-pipe, trench height 160 mm
1
2
3
4
5
6
7
Front view, connection openings
Trench length
Top view, water connection on room side
Window side
Window side Room side
Window side Room side
Cross-section (cooling or heating)
Example: Roll-up grille
Front view with built-in
condensate pump
Side view with built-in
condensate pump
6
1
Heating/ cooling supply
2
Heating/ cooling return
3
½” valve body, axial, type 346914 and/or type 346911 (flow-de-
pendent)
4
Thermoelectric actuator, type 146906
5
½” return shut-off valve, angled, type 145953 and/or type 145955
(flow-dependent)
6
Pipe openings, punched
7
Filter (optional)
