Katherm HK
Assembly, installation and operating instructions
31
Condensate drain kit with a natural gradient
The following mounting kit can be ordered as an accessory to drain the condensate.
1
2
3
4
5
6
1
2
5
3
4

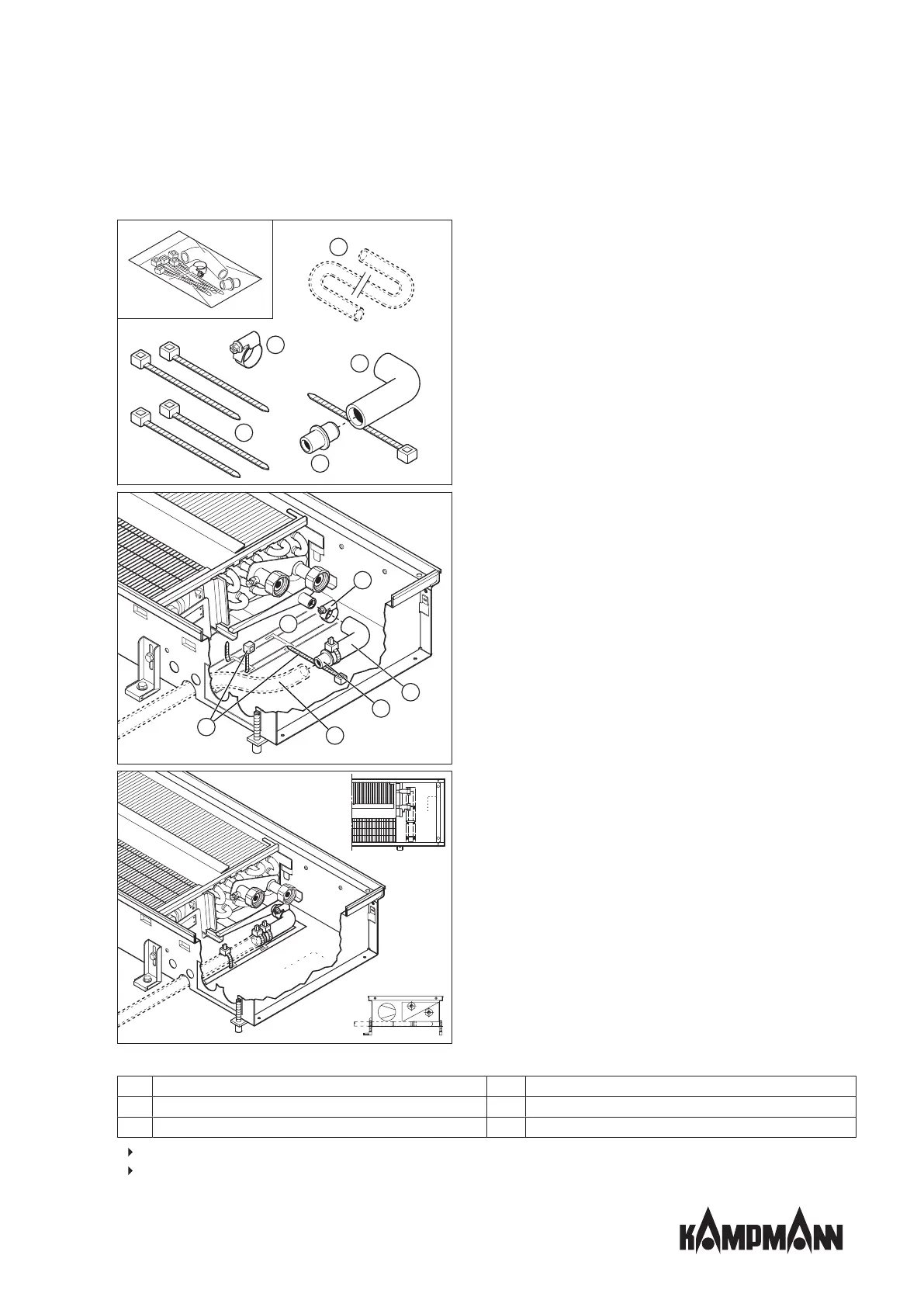

Fig.3: Condensate drain mounting kit
1
Condensate elbow
2
Coupling section
3
Hose clamp
4
Cable tie
5
On-site condensate pipe
6
Cut-outs in the base panel (pre-punched)
Connect the coupling
2
and condensate elbow
1
with a cable tie
4
.
Fix the condensate elbow
1
to the drain connector of the condensate tray using a hose clamp
3
.
