6.3.2.2 Additional on-site condensate drain pipe
The on-site condensate drain pipe can be fixed by cable ties to the openings provided by the pre-punched openings in the
base to maintain the necessary gradient. If a steeper gradient is needed on site for the on-site condensate drain pipe, the pre-
punched openings on the base can be removed as required.
Required openings in the base panel Additional on-site condensate drain pipe
Room side
Room side
Room side
Room side
Room side
Room side
1
3
2
4
5
6

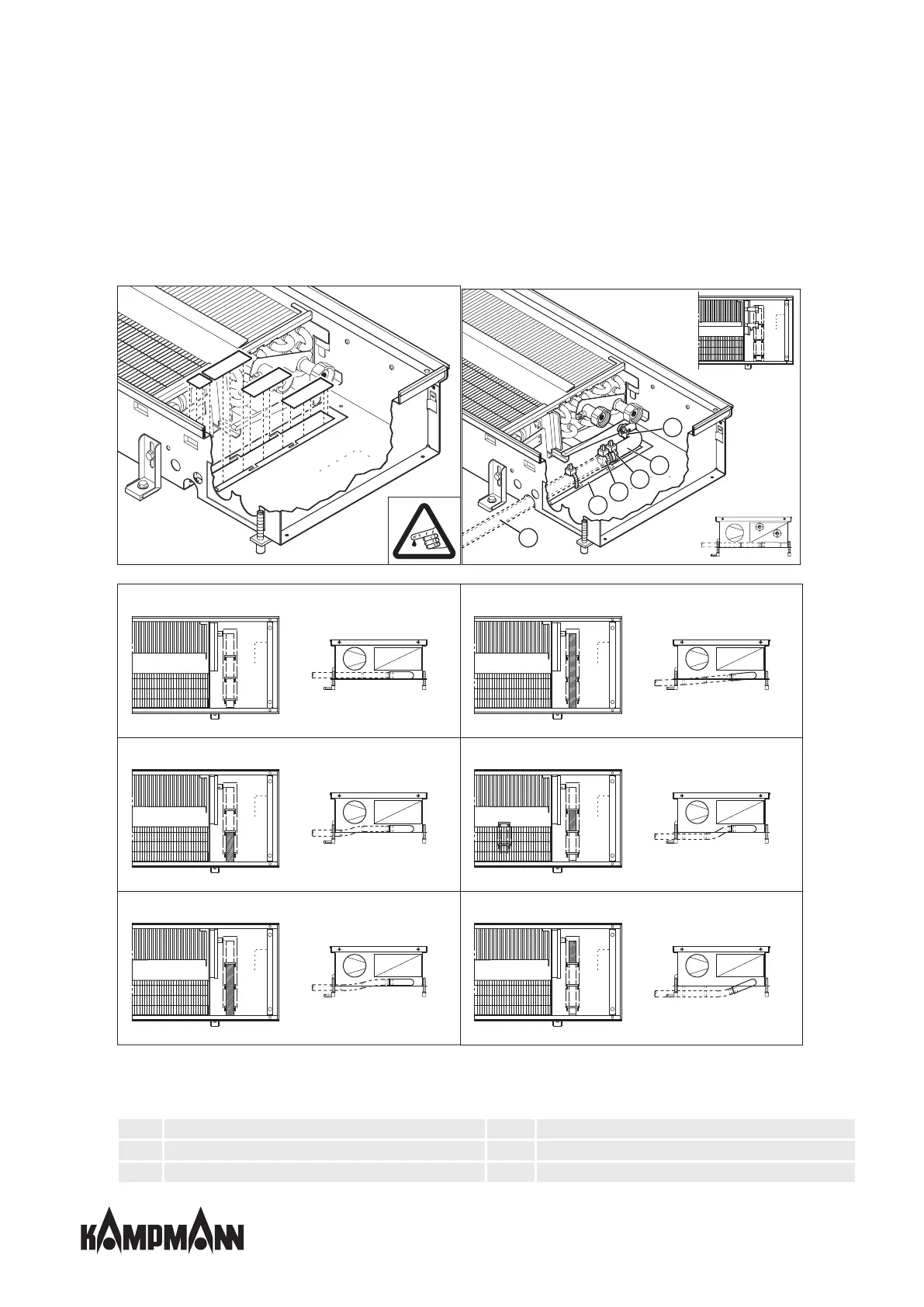

Fig.4: Options for removal of the openings in the base and routing the on-site condensate drain pipe
1 Condensate elbow 2 Coupling section
3 Hose clamp 4 Cable tie
5 On-site condensate pipe 6 Cut-outs in the base panel (pre-punched)
