6.3.2.4 On-site condensate drainage with a condensate pump
1
1
2
3
3
2
Condensate drainage on site with a natural gradient
Condensate drainage on site with condensate drainage
* min. 2% gradient
*
1
Katherm HK condensate connection – collecting pipe
2
Condensate collecting pipe
3
Important: Connect the condensate collecting pipe to the waste water network in accordance with all applicable tech-
nical standards and regulations; note in particular any necessary vents, traps etc.
1
2
3
4
5
6
1
2
3
4
8
7
HK 245HK 290/ 320/ 360 /
HK 360 E

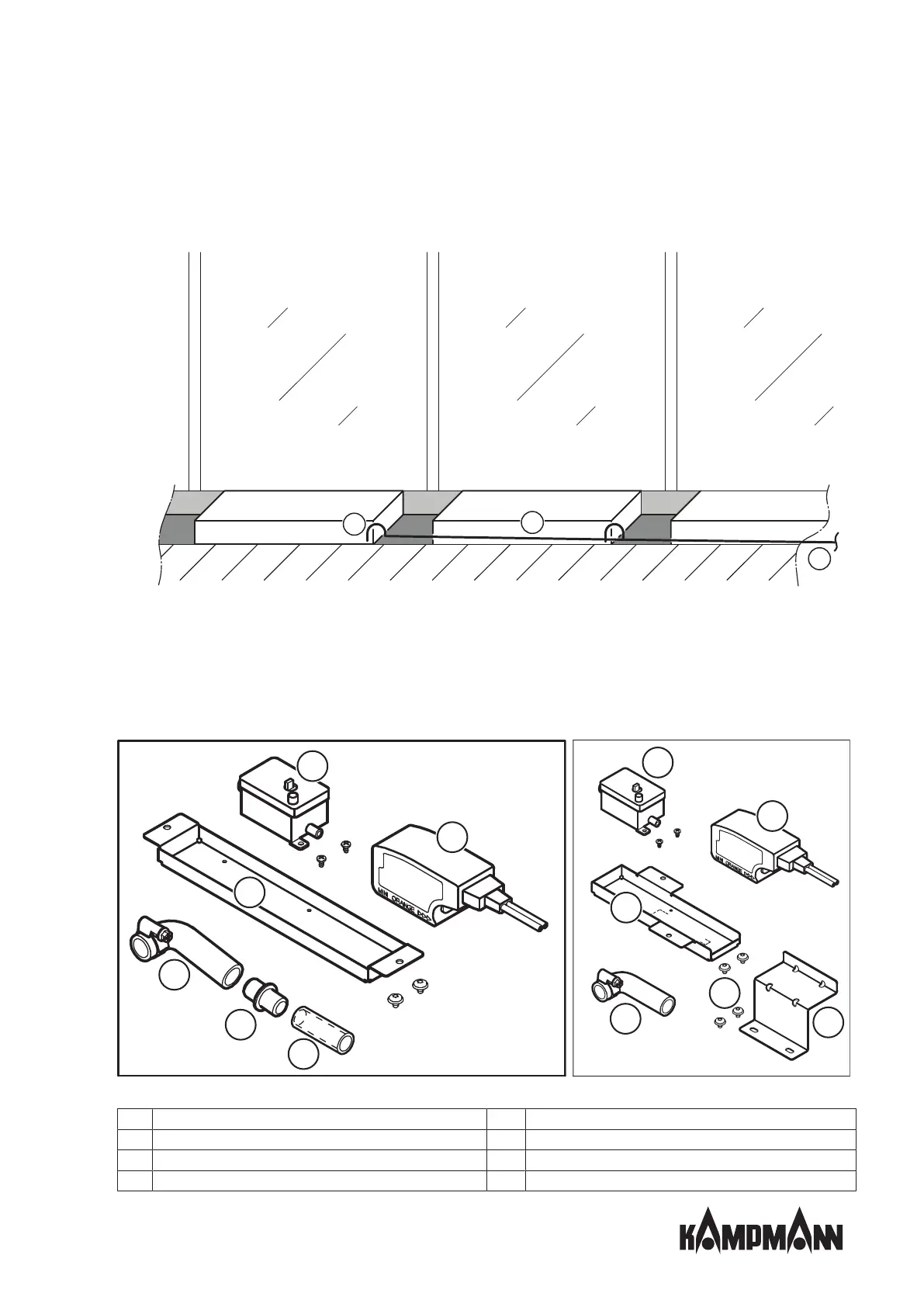

Fig.6: Mounting kits
1
Mounting panel for the float module
2
Float module
3
Pump unit
4
Condensate elbow
5
Coupling section
6
Condensate hose
7
Metal screws
8
Condensate pump mounting plate
