Katherm HK
Assembly, installation and operating instructions
36
1
2
3
4
5
6
7
1
2
3
4
7
HK 245
HK 290/ 320/ 360 /
HK 360 E

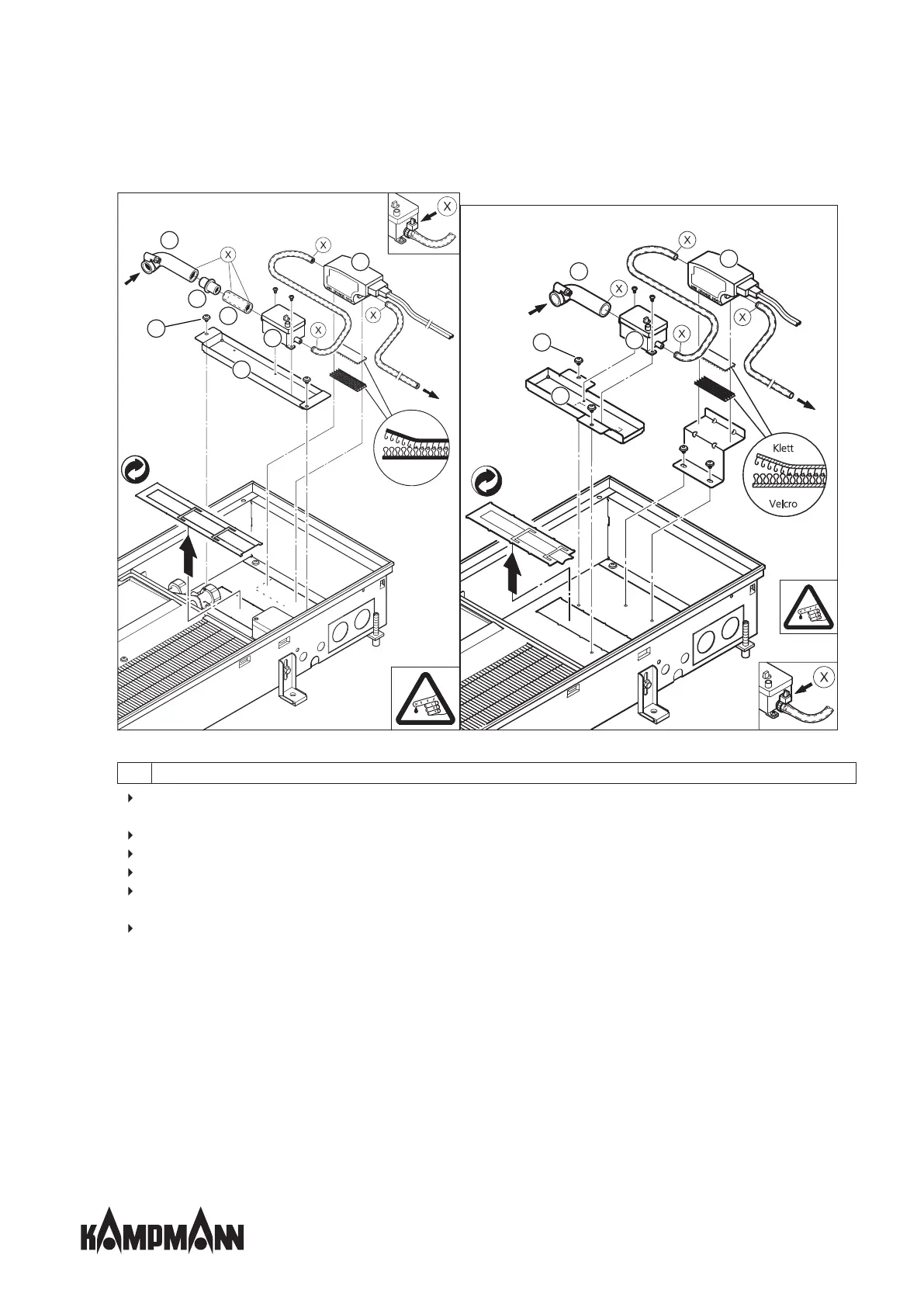

Fig.7: Installation of the condensate pump mounting kit
x
Fixing with the cable ties provided
Remove the punched base panel on the right connection site and insert the mounting panel for the float module
1
at
this point and fix it in place with the metal screws
7
supplied.
Use the double-sided Velcro strips provided to fix the pump unit
3
to the floor trench.
Insert the float module
2
into the mounting panel and fix it to the mounting panel with the screws provided.
Fix a length of condensate hose
6
to the float module with the cable tie provided.
Connect the condensate elbow
4
and the length of condensate hose
6
to the coupling section
5
using the cable ties
provided.
Fix the condensate elbow
4
to the drain connector using the hose clamp.
