Katherm HK
Assembly, installation and operating instructions
37
Important! Note the increased trench height when the mounting kit is fitted! First fit the condensate pump mounting kit be-
fore fitting the valves for the water connection (with 4-pipe systems).
Window side
Window side
Side view Front view
Top view

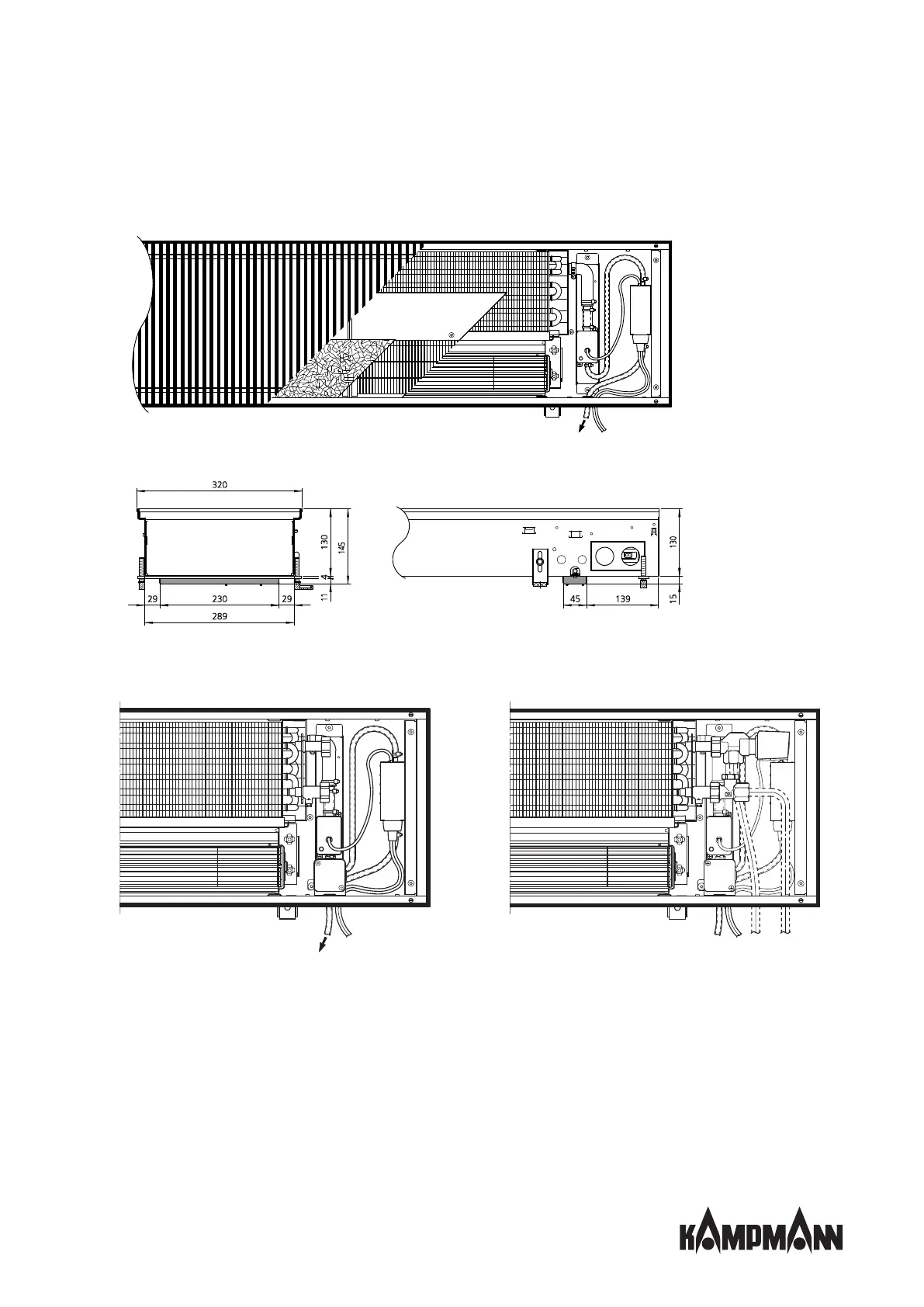

Fig.8: Example: Katherm HK 320, H = 130mm, 2-pipe, increased trench height with condensate pump*
Window side Window side
Example: Plan view of HK 320
with condensate pump
connection kit installed*
Example: Top view, HK 320, 4-
pipe with valves fitted
* With Katherm HK 290, H = 160 mm or HK 360, H = 210 mm, the installation position of the condensate tray and thus also
the corresponding dimensions are identical to those of the Katherm HK 320, H = 130 mm. Only the dimensions of the trench
height differ.
