Venkon
Assembly, installation and operating instructions
16
6 Installation and wiring
6.1 Definition of the connection side

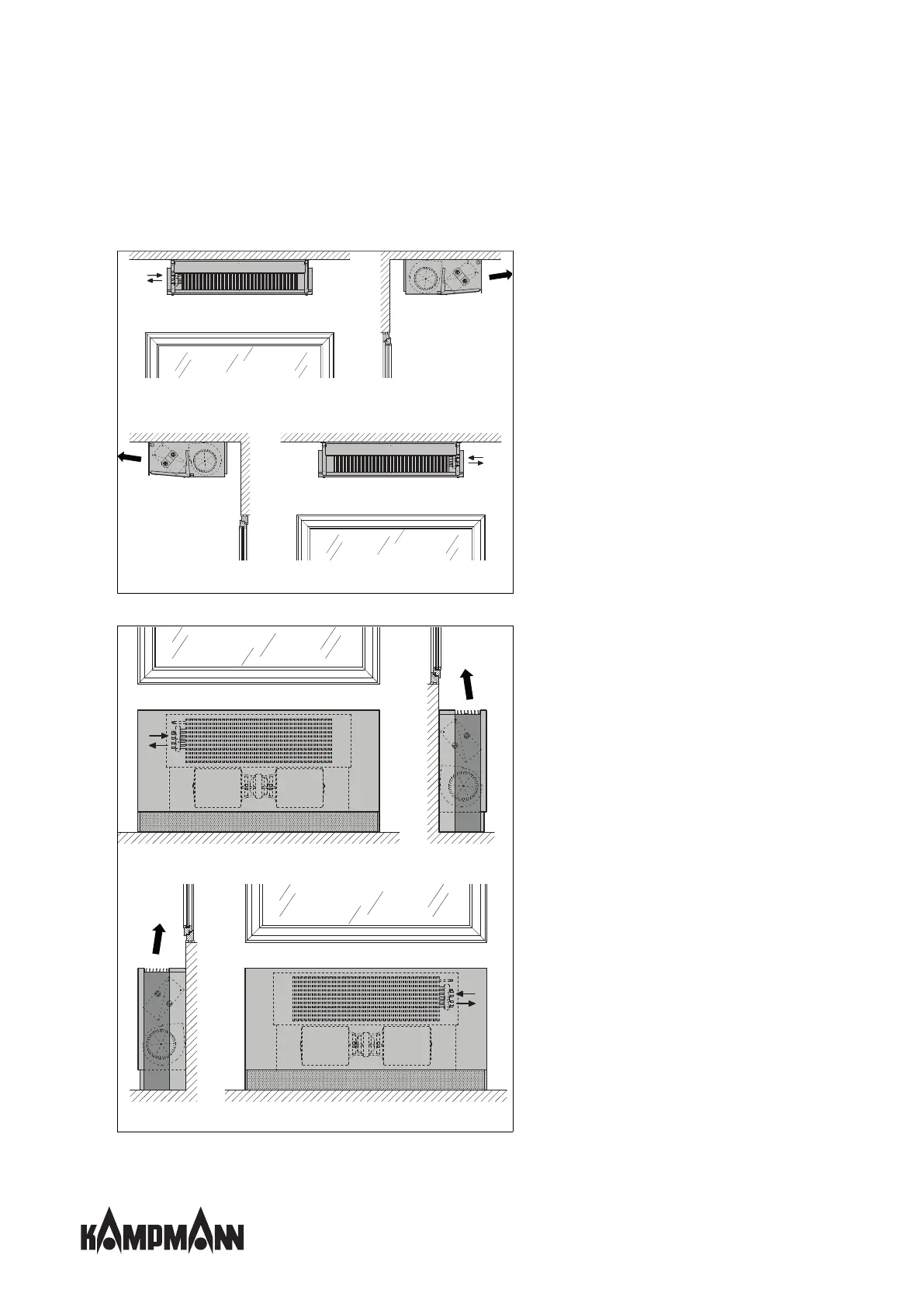

Example of ceiling installation, connection on left
Example of ceiling installation, connection on right
Fig.2: Ceiling-mounted, connection on left and right
Example of wall installation, connection on left
Example of wall installation, connection on right
Fig.3: Wall-mounted, connection on left and right
