Kampmann Venkon - Sheet Steel Accessories

Venkon
Assembly, installation and operating instructions
25
6.4.3 Installing the sheet steel accessories
Overview, air-side sheet steel accessories
1
2
3 4 5
6
7
8
9
10 11
12
13

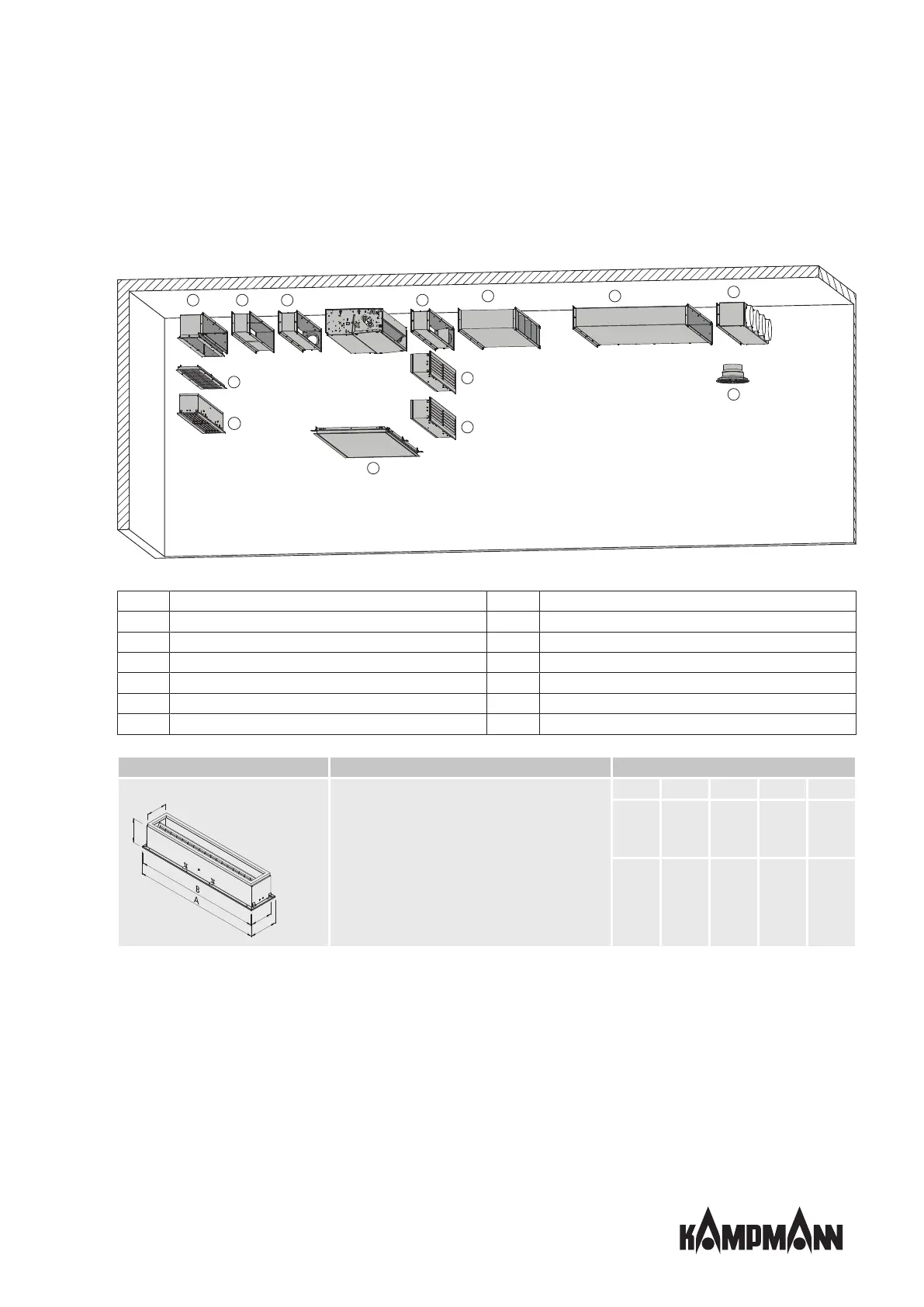

Fig.12: Diagram of arrangement of sheet steel accessories for ceiling-mounted units
1
Hotel air opening with inlet box and filter
8
Outlet box with hotel air opening
2
Internal air grille
9
Discharge box with primary air connection and hotel air opening
3
90° duct bend
10
Splitter noise attenuator
4
Flexible connector
11
Air duct
5
Inlet box with primary air connection
12
Flexible pipe connection unit Ø 198 mm
6
Service hatch with frame
13
Ceiling swirl diffuser
7
Outlet box with primary air connection
Figure Description Dimensions [mm]
6.3
7.9
6.3
6.3
Hotel air opening with inlet box and filter
61 63 66 67
A
620
24.4
inch
920/
36.2
inch
1370/
53.9
inch
1720/
66.3
inch
B
583/
23
inch
883/
34.8
inch
1333/
52.5
inch
1683/
66.3
inch
