6.4.2 Installation of casing
Casing overview
Casing, wall-mounted, without inlet grille
Casing, wall-mounted, with inlet grille
Casing, free-standing, with inlet grille and rear panel
Casing, ceiling-mounted, with inlet grille
0.4
0.4
0.4
9.3
10
9.3
0.4
0.4
0.4
4.9 3.1
19.9
23.
8
19.
9
3.9
23.8
19.9 3.9
19.9 3.9
23.8
9.3
1.2
4.9 3.11.2
4.9 3.11.2
4.9 3.11.2

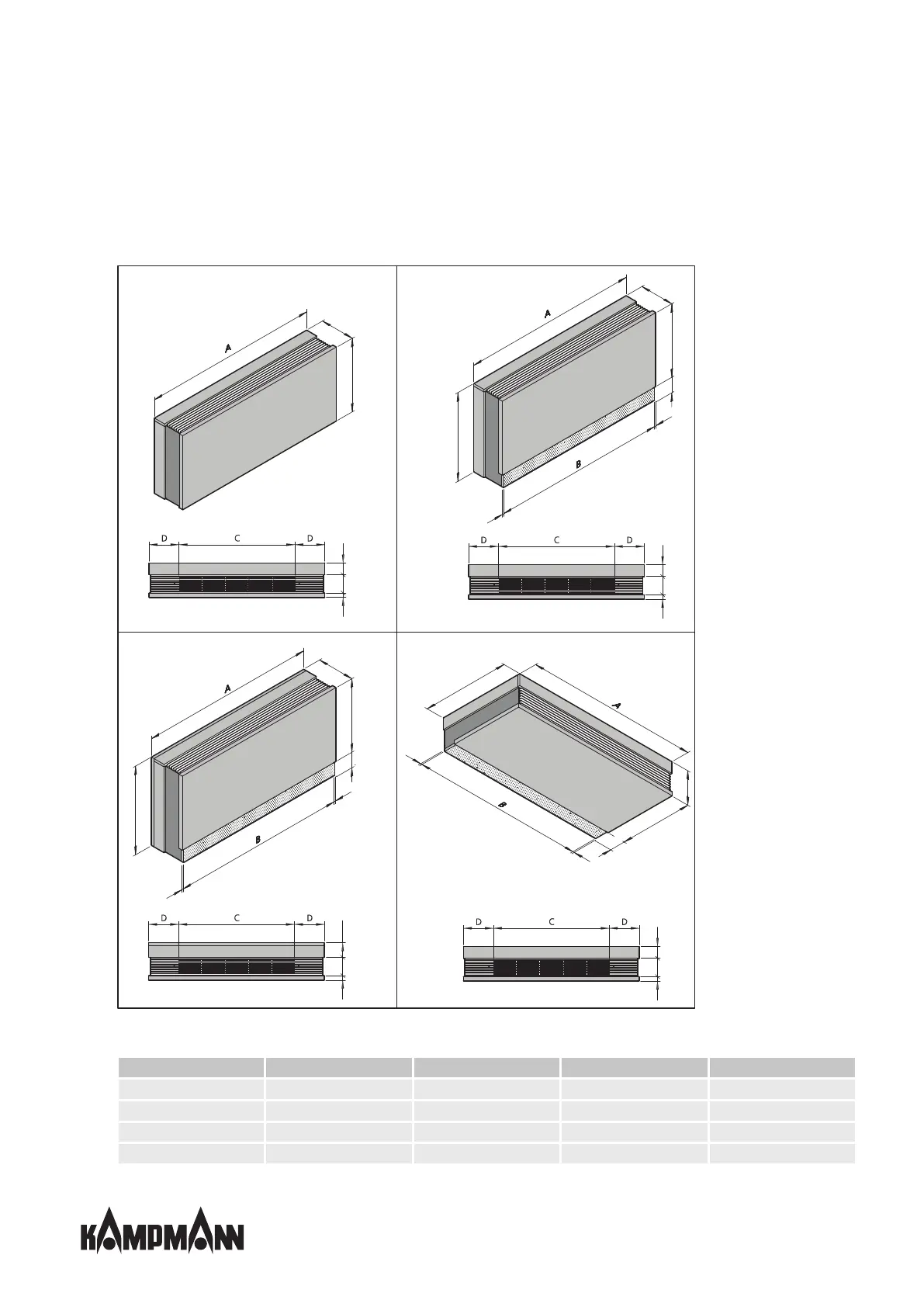

Fig.6: Overview of casings
A B C D
Model 61
900 / 35,4 inch 880 / 34,6 inch 470 / 18,5 inch 215 / 8,5 inch
Model 63
1200 / 47,2 inch 1180 / 46,5 inch 790 / 31,1 inch 205 / 8,1 inch
Model 66
1650 / 65 inch 1630 / 64,2 inch 1270 / 50 inch 190 / 7,5 inch
Model 67
2000 / 78,7 inch 1980 / 78 inch 1590 / 62,6 inch 205 / 8,1 inch
