5.2 Connection of ULTRAFLOW®
ULTRAFLOW® is connected to MULTICAL® 803
via the connection PCB using the terminal
numbers to the right.
ULTRAFLOW® Wire Terminal number
V1
Signal (
) 10
+ (
) 9
- (
) 11
V2
Signal (
) 69
+ (
) 9
- (
) 11
5.3 Connection of other flow sensors
Other passive flow sensors with either reed
switch or transistor output can be connected
to MULTICAL® via the terminal numbers to
the right. Be aware of correct mounting of +
and - of flow sensors with transistor outputs.
Flow sensor Wire Terminal number
V1
+ 10
- 11
V2
+ 69
- 11
MULTICAL® 803 can be connected to other flow
sensors with 24 V active pulse outputs by using
connection PCB 6699-045 that is available as
accessory for MULTICAL® 803. See the terminal
numbers to the right. Be aware of correct
mounting of + and -.
Flow sensor Wire Terminal number
V1
Signal 10B
- 11B
+ 24 VDC
1
97A
V2
Signal 69B
- 11B
+ 24 VDC
1
97A
1
Requires that MULTICAL® 803 has supply
type C or D.
21 21A
27 28
20A 20
t4
52 52A51A 51 4 8 7 3 2 6 5 1
-
+ V1
1011 9
-
+ V2
6911 9
24V 24V
t3 t2 t1
4 wire
27 28
2 wire
230 VAC
97 98
24 VAC/VDC
-
(+) V1
10B11B 97A
-
(+) V2
69B79B97A
5535-1745

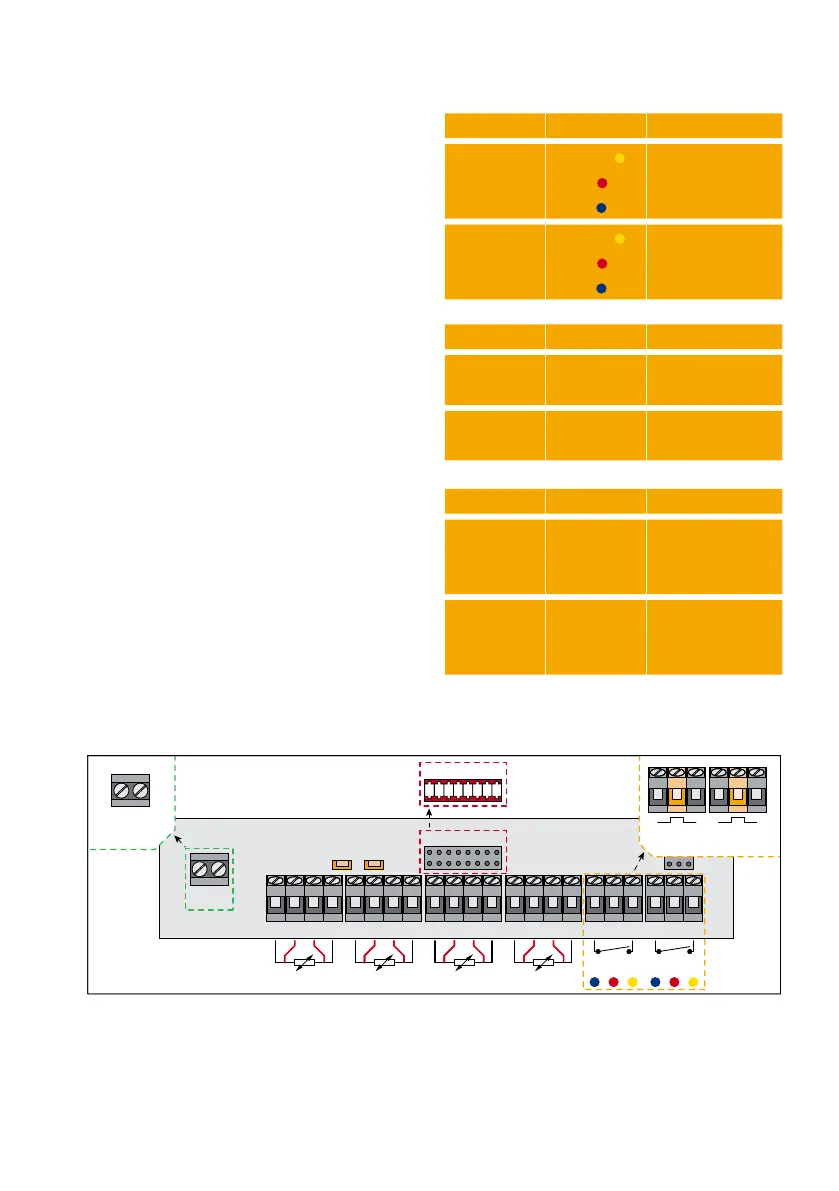

Figure 1 Conncetion of PCB MULTICAL® 803
