MULTICAL® 803 & ULTRAFLOW®
3.2 Mounting of ULTRAFLOW® ≤ DN125
90°
90°
90°
90°
90°90°
90° 90°

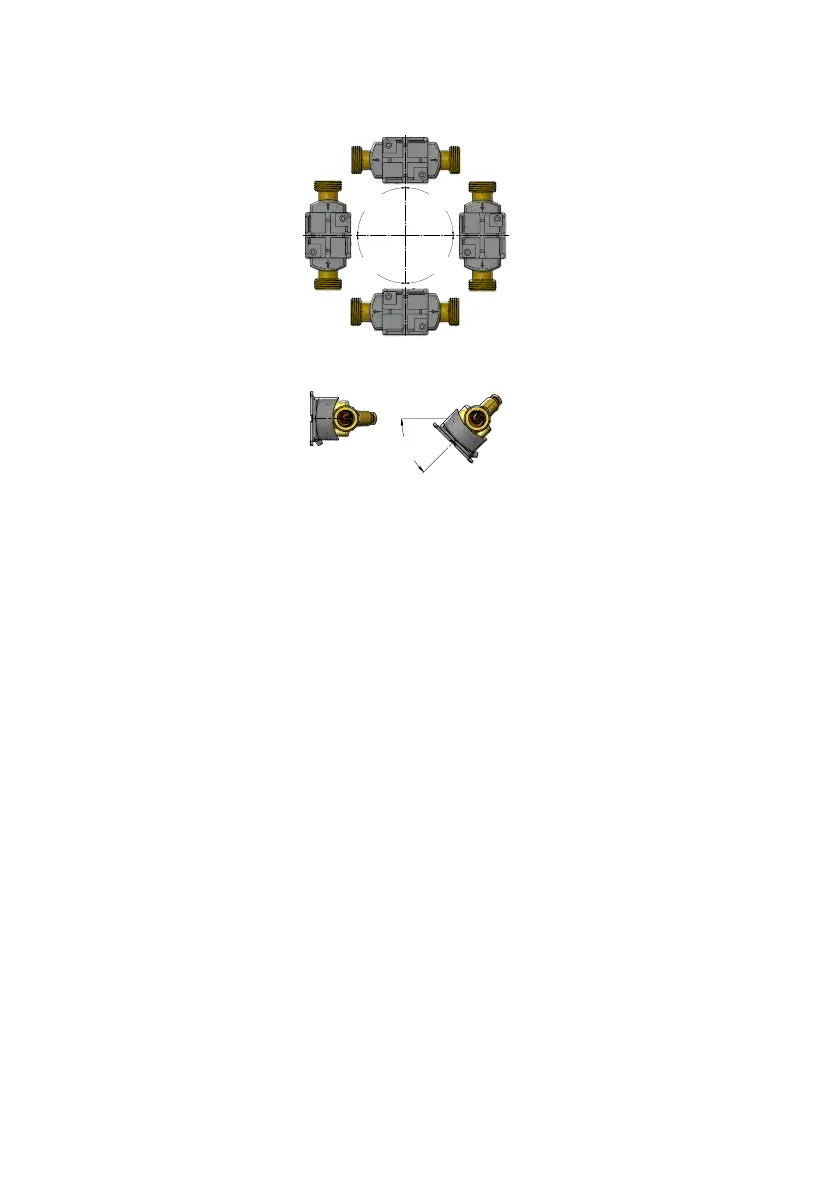

The flow sensor can be mounted horizontally, vertically or at an angle.
Max. 45°
The flow sensor should be mounted with the plastic casing placed
on the side (at horizontal mounting).
The flow sensor (65-5-XXHX-XXX) may be turned up to 45°
downwards in relation to the pipe axis as shown above, if required
1
.
1
Flow sensor types 65-5-XXAX-XXX, 65-5-XXCX-XXX and 65-5-XXJX-XXX may also be turned 45°
upwards.
Note: In installations in which the media temperature is below the ambient temperature,
ULTRAFLOW® in a condensation-proof version must be used. At the same time,
ULTRAFLOW® must not be mounted with the plastic casing turned to below 0°. It is
recommended to turn the plastic casing 45° upwards.
3.3 Mounting of ULTRAFLOW® 54 ≥ DN150
See Installation and user guide no. 5512-887.
