II.1.A. OP48(-H) CONSOLE
There are two types of OP48 Consoles, OP48 Console and OP48-H Handsfree
Console, the second one being half-duplex. The OP48(-H) Console has a BDP
(Busy Display Panel) that shows the states of all the extensions and lines as well
as some system features. There is also an 8-Character Display that keeps the user
informed about the calling / called extension and dialed numbers as well as some
system features.

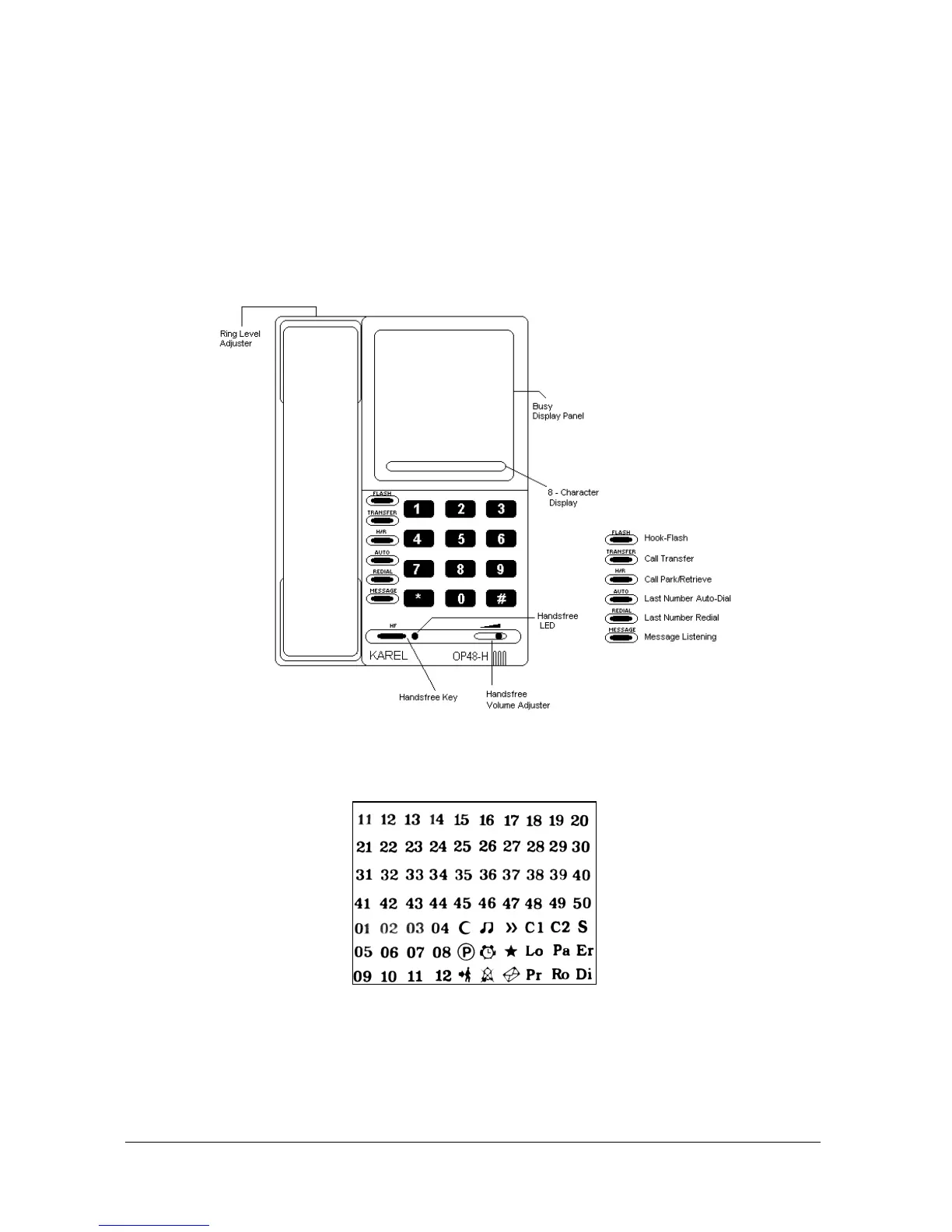

The outlook and BDP of OP48-H are illustrated in the following figures.
Handsfree Key, Handsfree Volume Adjuster and Handsfree LED are available only on the handsfree versions.
Figure A-9
Figure A-10
The dimensions of OP48(-H) are 22 cm x 6.5 cm x 16 cm and the weight is 0.9 kg.
