Karel MS48 Installation & Maintenance Guide
Edition 3.2
26
II.11. LOCAL PAGER – PG100
PG100 Local Pager lets you page extensions that are equipped with receivers
(beepers) so that they can pick up their calls or attend later. The outlook of PG100
is illustrated in the following figure.

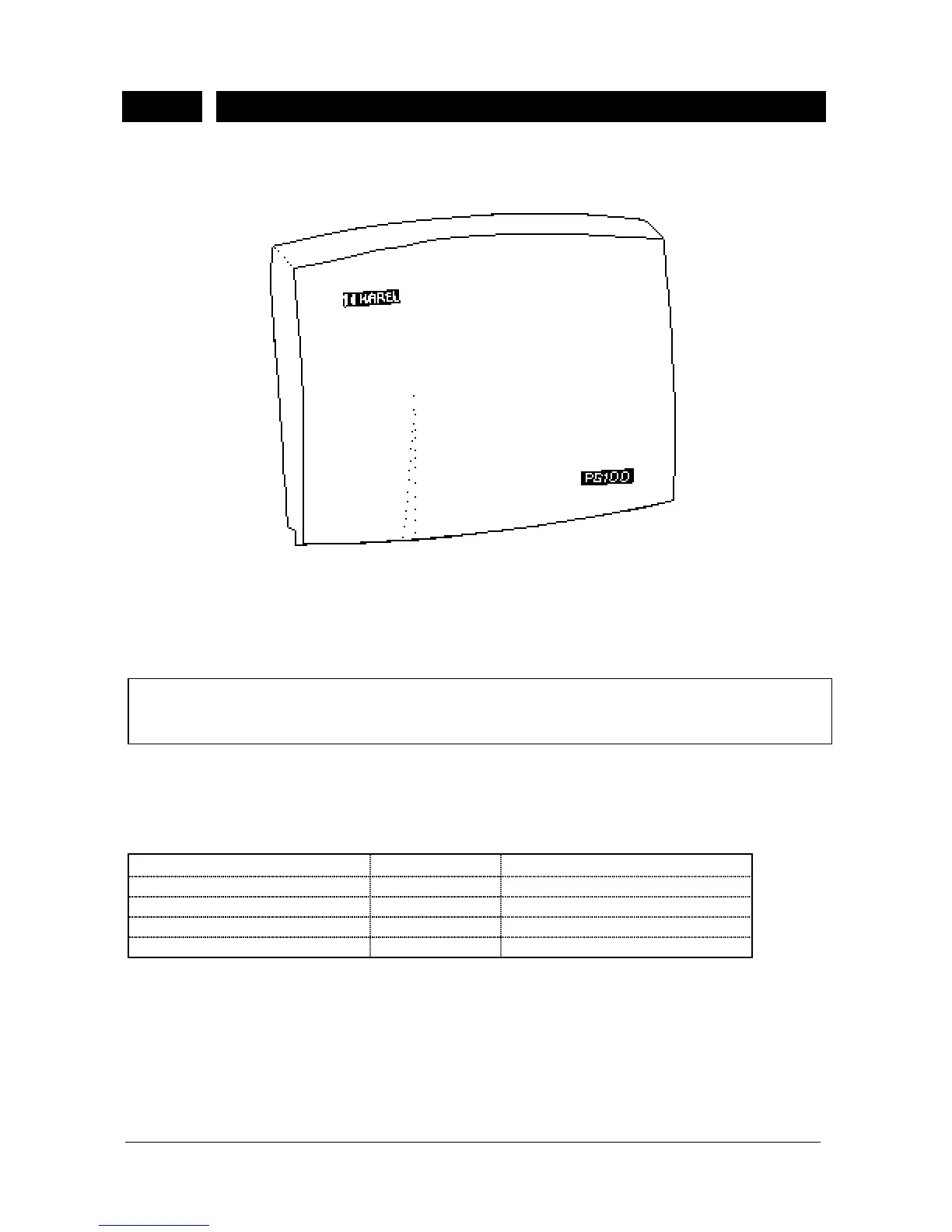

Figure A-21
KAREL also has its own beepers (receivers), which are adjusted to operate at the
same frequency of PG100 and which are also programmable for the desired
extension number as well as the PG100 Local Pager.
IMPORTANT
The operating frequency of PG100 Local Pager is 167.050 MHz. with a 25 KHz.
Bandwidth.
The coverage area of PG100 is 200 m indoor and 2 km open air.
The Data cabling of PG100 Local Pager is made via the 3-pin CONSOLE
connector on the SPS48 card. The signaling between the SPS48 and PG100 is
illustrated in the following table:
SPS48 Card
PG100 Card
CONSOLE Connector Pin No Signal RJ Plug Pin No
1 Data 1
2 +12 VDC 6
3 GND 2
The input of +8 VDC is regulated to +5 VDC by PG100.
PG100 can be also directly connected to mains voltage through a 12 VDC power
adaptor. Normally, PG100 receives power over the data cable. However, if the data
line of the system is overloaded due to the existence of many OP48(-H) and
LT48(-H) telephones or DSS40 and DSS80 modules connected to the system, it is
preferable to feed PG100 over the power adaptor that is to be procured locally.
The dimensions of PG100 are 24 cm x 19 cm x 4.5 cm and the weight is 0.5 kg.
