Karel MS48 Installation & Maintenance Guide
Edition 3.2
16

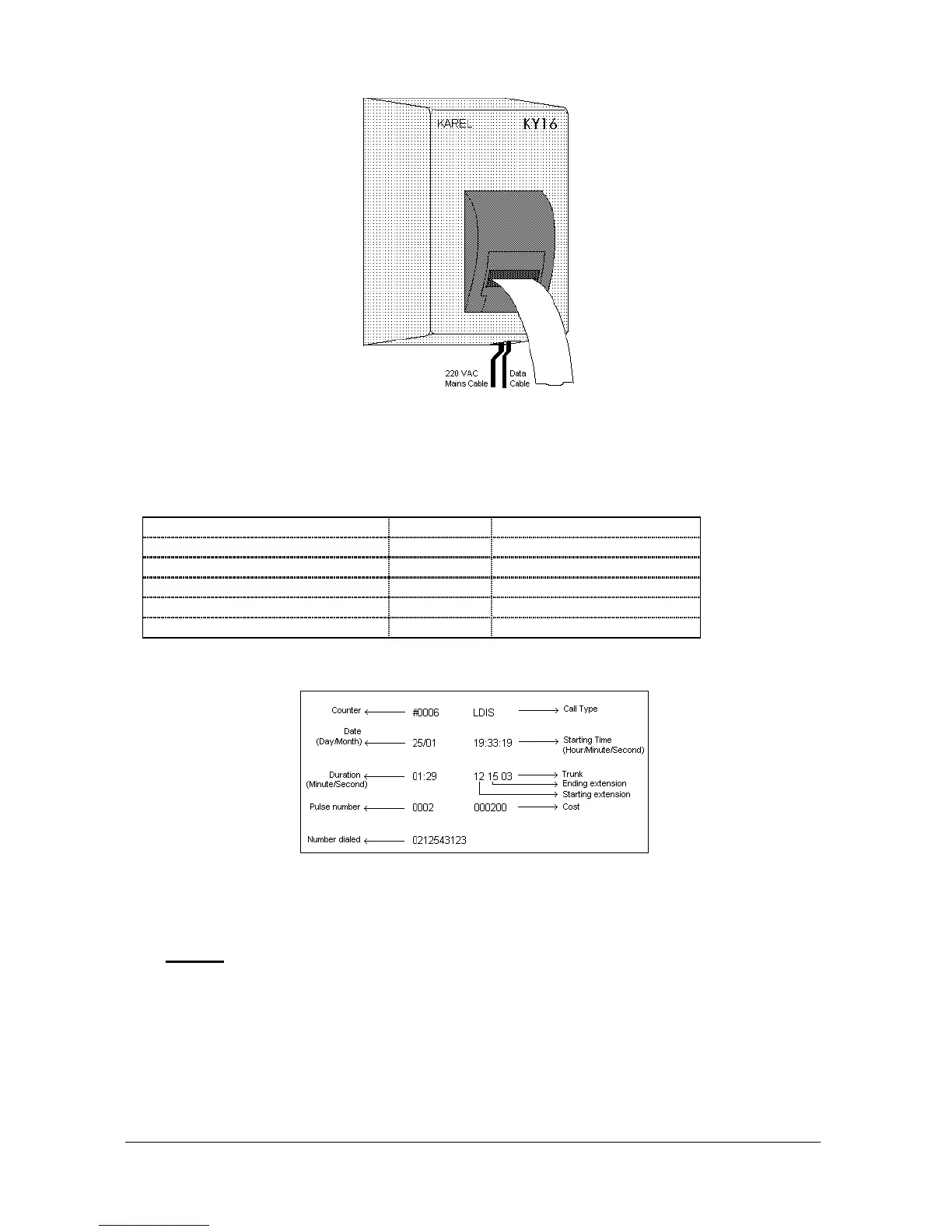

Figure A-15
The data cabling of KY16 Mini Printer is made via the 4-pin PRINTER connector on
SPS48 Power Supply Module. The signaling between the system and KY16 is
illustrated in the following table.
SPS48 Card KY16 Card
PRINTER Connector Pin No Signal Connector Pin No
1 - -
2 Busy 2
3 Data 3
4 GND 1
Below is a sample printout of a call record obtained from a KY16.
Figure A-16
The dimensions of KY16 are 15 cm x 20.5 cm x 9 cm and the weight is 1.3 kg.
•
N
OTE
Only one of the three CRL accessories - namely KY16 Mini Printer, CM48 CRL
Interface and/or PK48 PC-Console Interface, RS232 Serial Printer Interface -
can be connected to the system at a time. The selection among these devices
is made by programming.
