Karel MS48 Installation & Maintenance Guide
Edition 3.2
4

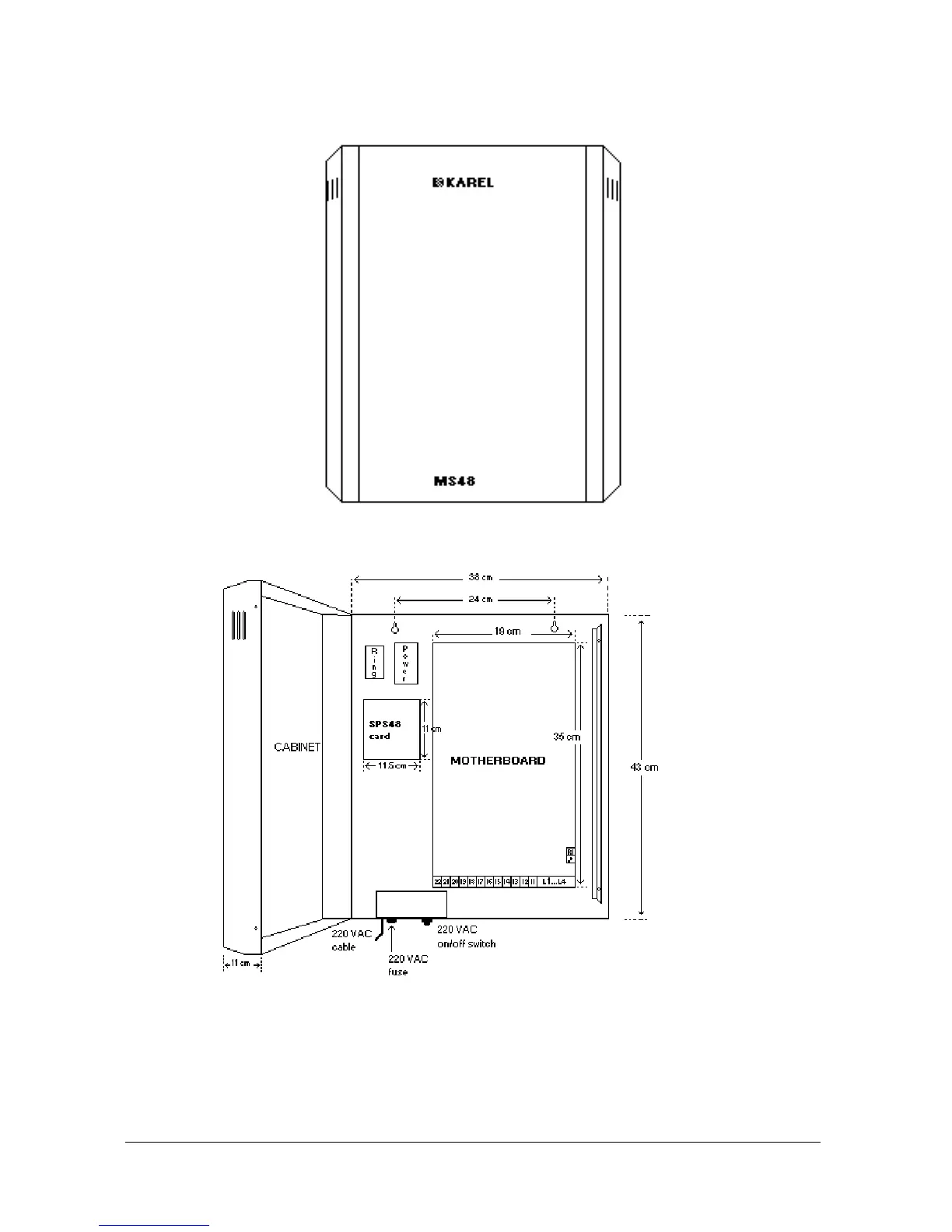

See the following figures to have a general idea about the outlook as well as the
structure of the system.
Figure A-1
Figure A-2
The CBN48 metal cabinet provides a strong shell and a natural electromagnetic
shield for the system.
