3 ASSEMBLY METHOD AND REQUIREMENTS
3.1. Installation of Headlight and front fender
3.1.1. Installation of Headlight
- Close the whole power supply, avoid the positive and negative pole
of the lamp wire from short-circuit, install the head light, and do not
pull the head light, in order to avoid the lamp wire from shedding,
causing unnecessary trouble.

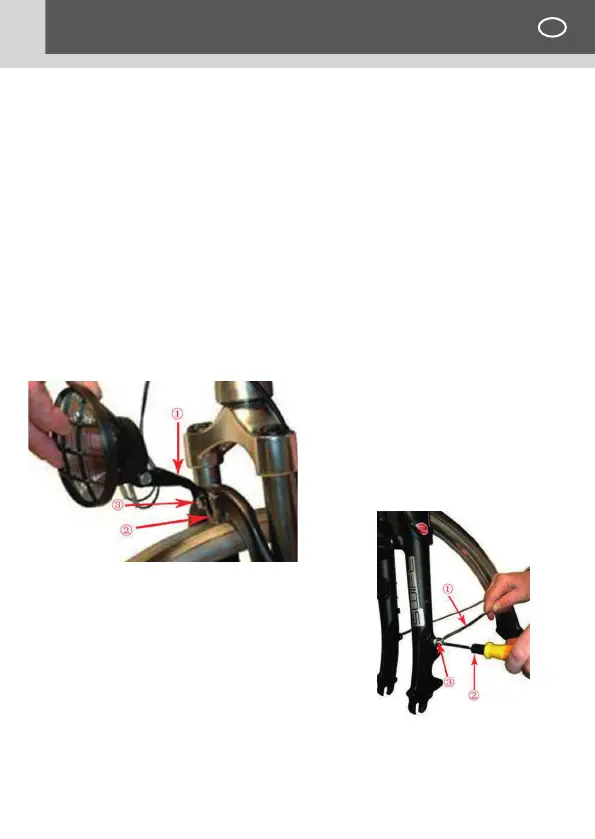

1 Take out the Headlight and the front fender;
2 Align the hanger of the front fender with the hole of the
Headlightrack, x the hexagonal M6 × 16 bolt inside the screw hole of
the Front fork with 10mm opening wrench, and tighten the bolt.
3.1.2. Installation of Headlight
Take out the front fender, and x the fen-
der hanger andHeadlightrack on the Front
fork with hexangular M6 × 16 bolts;
2 Fix the pan head M5 × 14 screw and the
front fender stick on the corresponding
positions at both sides of the Front fork
with the cross screwdriver, and tighten
the bolts, as shown.
1- Headlightrack
2- Front fender hanger
3- Hexagonal M6×16 bolt
and Ø6 at gasket
1- Front fender stick
2- Cross and straight-line
screwdriver
3- Pan head M5 × 14 bolt
