4.7.2 Derailleur
L adjusting screw
H adjusting
screw
H adjusting
screw
L adjusting
screw
Fixed
screw of
shift cables

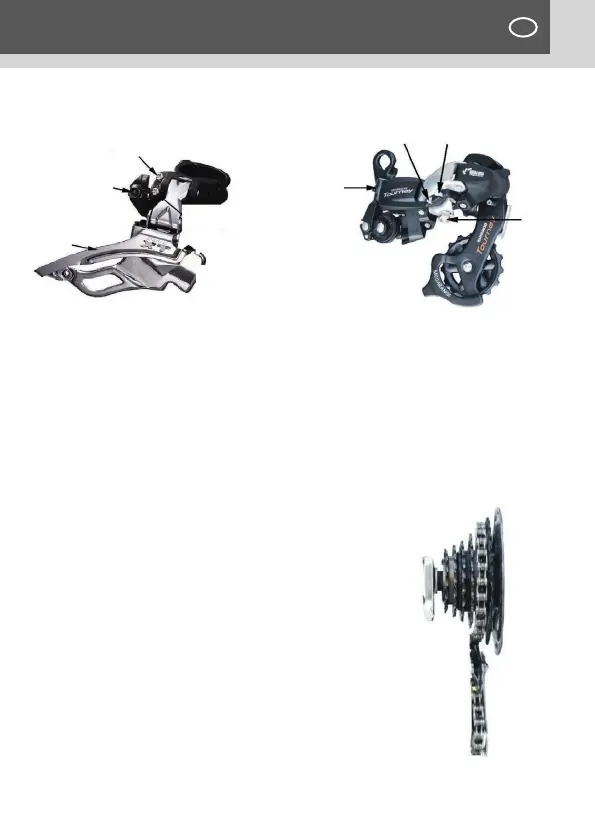

Figure 1 Figure 2
Chain guide vane
Fixed screw
of shift cables
Manual
adjusting
knob
The derailleur is classied into the front derailleur and Back fender
(as shown in Figure 1, 2)
When the shift cables are loose or too tight, if the speed controller
does not work properly or the chain falls off, the H, L bolt is adjusted.
H bolt: when the chain speed changes to the biggest uted disc, the
chain will fall off, and the H bolt will be locked.
But if it is too tight, the chain can not climb to the biggest uted disc.
L bolt: when the chain is toward the inside uted disc and the chain
falls of, the L bolt is locked.
But if it is too tight, the speed change can not
be downward. Therefore it is appropriate to
adjust the H, L bolt to a suitable position.
Adjust the chain to the minimum ywheel,
adjust the H screw so that the guide pulley
with the smallest gear is on a straight line,
and then adjust the chain to the largest
ywheel, and adjust the L screw so that
the guide pulley with the ywheel is on
a straight line (as shown at the right)
