78
E-MOOTIKA
INSTRUCTION MANUAL
ENG
Adjustment method of the brake shoe block:
1- Loosen the positioning bolt;
2- Adjust the distance of the shoe block through the left and right
knob; when the shoe block adjusts the left knob of the bolt, the distan-
ce of the brake shoe block is increased, and vice versa it becomes
small (as shown in the disk chart). Depending on the circumstances,
the braking is adjusted;

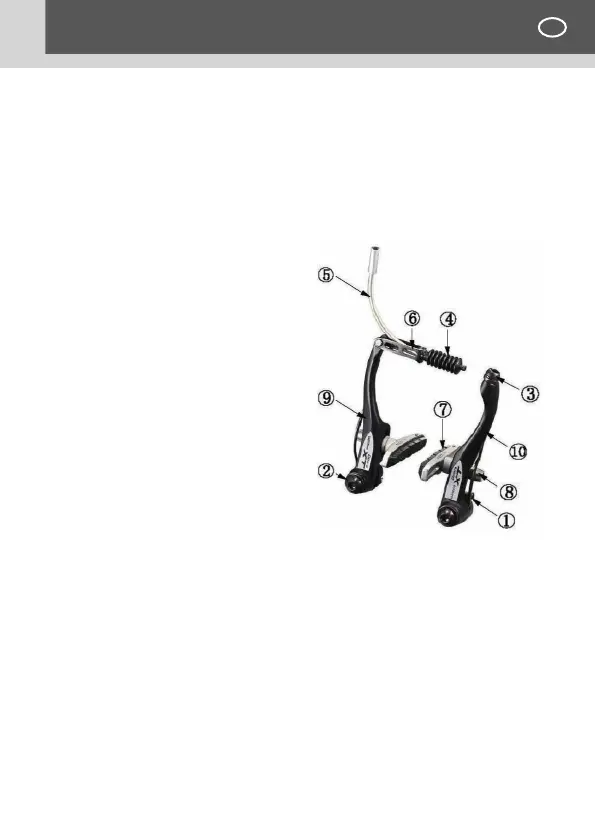

4.6.3 V brake brake
1- Spring adjusting bolt
2- Fixed bolt
3- Permanent seat of hanging line
4- Anti-layer set
5- Elbow
6- Positioning block of elbow
7- Brake shoe block
8- Adjusting bolt of shoe block
9- Left gate arm
10- Right gate arm
Adjustment method of the brake shoe block:
1 Loosen the xed screw and see there are three holes in the
permanent seat;
2 When moving the spring foot to the up hole, the elastic force
increases, so that the distance between the brake shoe block and
the Rim is increased, and vice versa it becomes small.
Depending on the circumstances, the braking is adjusted accordingly;
4.6.4 Brake cable
- The brake cable of the at handle
- The bifurcation situation of the internal line should be avoided, so
a tail sleeve had best be covered on the line end.
