When tightening the quick release handle of the front wheel, press
the Front fork by force downward, so that the front wheel axis can
work closely with the Front fork.
3.2.2. Installation of quick release front wheel
1 Take out the front wheel, hold the quick release nut and counterclockwise rotate the quick
release handle;
2 Remove the black plastic rack below the Front fork, and place the front wheel axis into
fork’s dropout, meanwhile put the round disc between the brake clap’s pads.
3 Hold quick release nut and clockwise rotate the quick release handle, and then lock the
quick release handle to ensure the front wheel is xed;

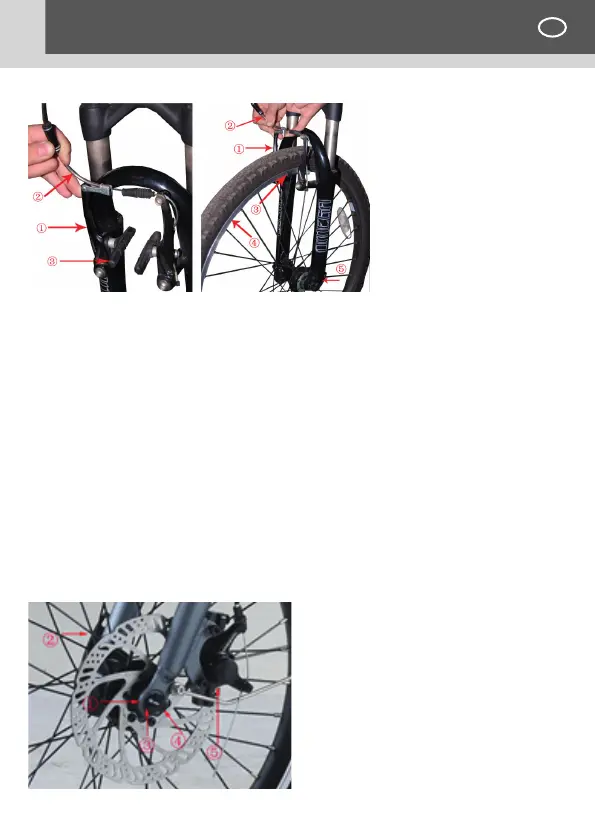

1- V Gate
2- Wire conduit
3- Brake block
4- Rim
5- Quick release handle
1- Fork’s dropout
2- Quick release handle
3- Front wheel axis
4- Quick release nut
5- Disc brake clap
NOTE: When tightening the quick release han-
dle of the front wheel, press the Front fork by
force downward, so that the front wheel axis
can work closely with the Front fork.
