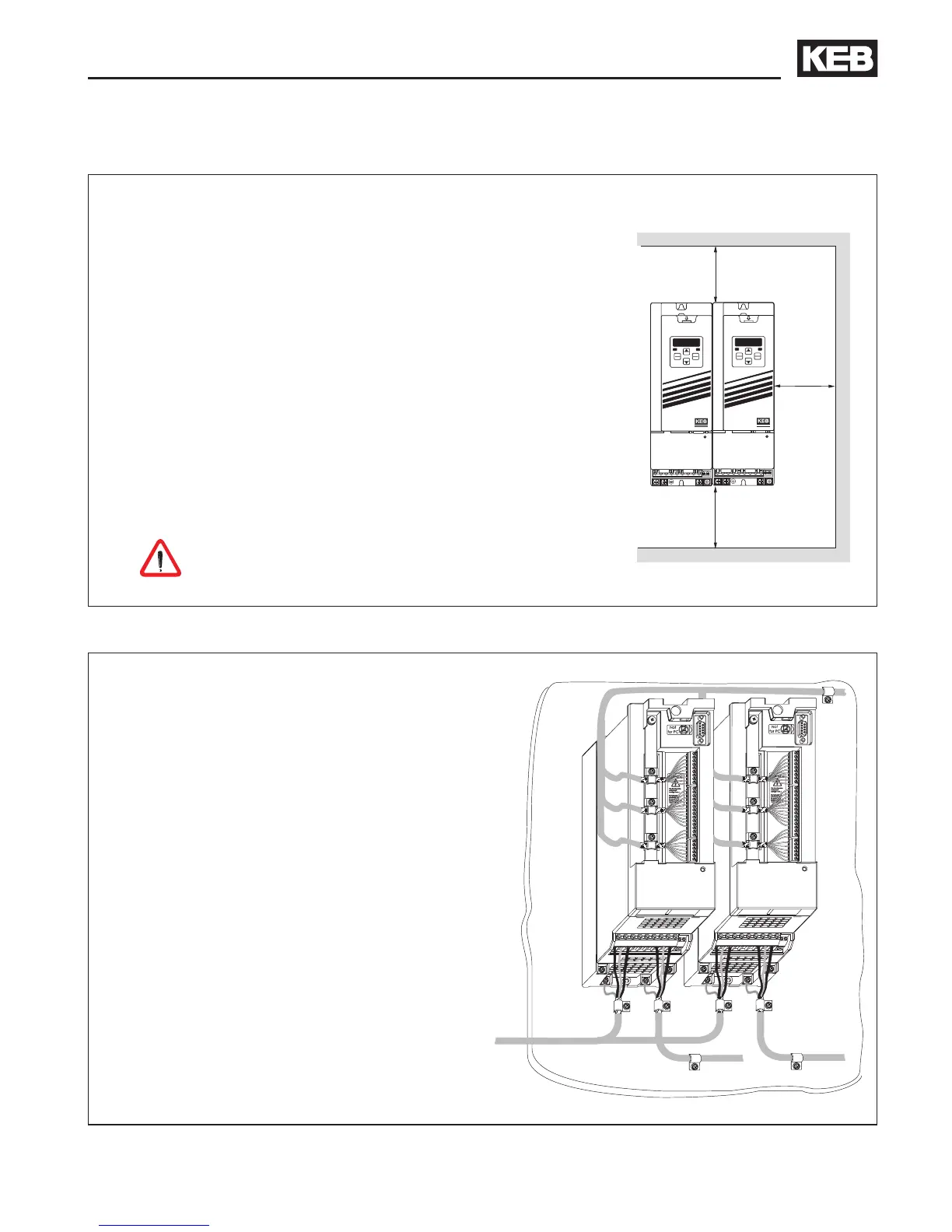

3. Installation and Connection
3.1 Control cabinet installation
3.2 EMC-conform Installation
Installation position and min.
distances
Protective system (EN 60529): IP20
Operation temperature: -10…45 °C (14…113 °F)
Storage temperature: -25…70 °C (-13…158 °F)
max. heat sink temperature:
Size 05/230 V and 07-09/400 V 90 °C (194 °F)
Size 07/230 V 82 °C (180 °F)
Climatic category (EN 60721-3-3): 3K3
Environment (IEC 664-1): Pollution degree 2
Vibration/Jolt according to: German. Lloyd; EN50155
The at-rear design requires cooling measures by the
machine builder. This can be in the best case no further
measure at all (e.g. at cyclic operation with down times)
up to the dissipation of the entire, indicated heat loss at
rated operation.
Protect the COMBIVERT against aggressive
gases and aerosols !
• Always apply the shielding of motor and
control cables over a large contact surface on
both sides.
• Distance between control and power cables at
least 10…20 cm (4…8 inch).
• Lay motor and power cable separately.
• If it cannot be avoided, cross control and
power cables in a right angle.
• Install all cables as close as possible to the
mounting plate - ideal in a metal cable duct.
• Mount COMBIVERT well conducting with the
mounting plate. Remove the paint before-
hand.
You can nd further instructions regarding the
EMC-conform wiring in the Internet at KEB.
