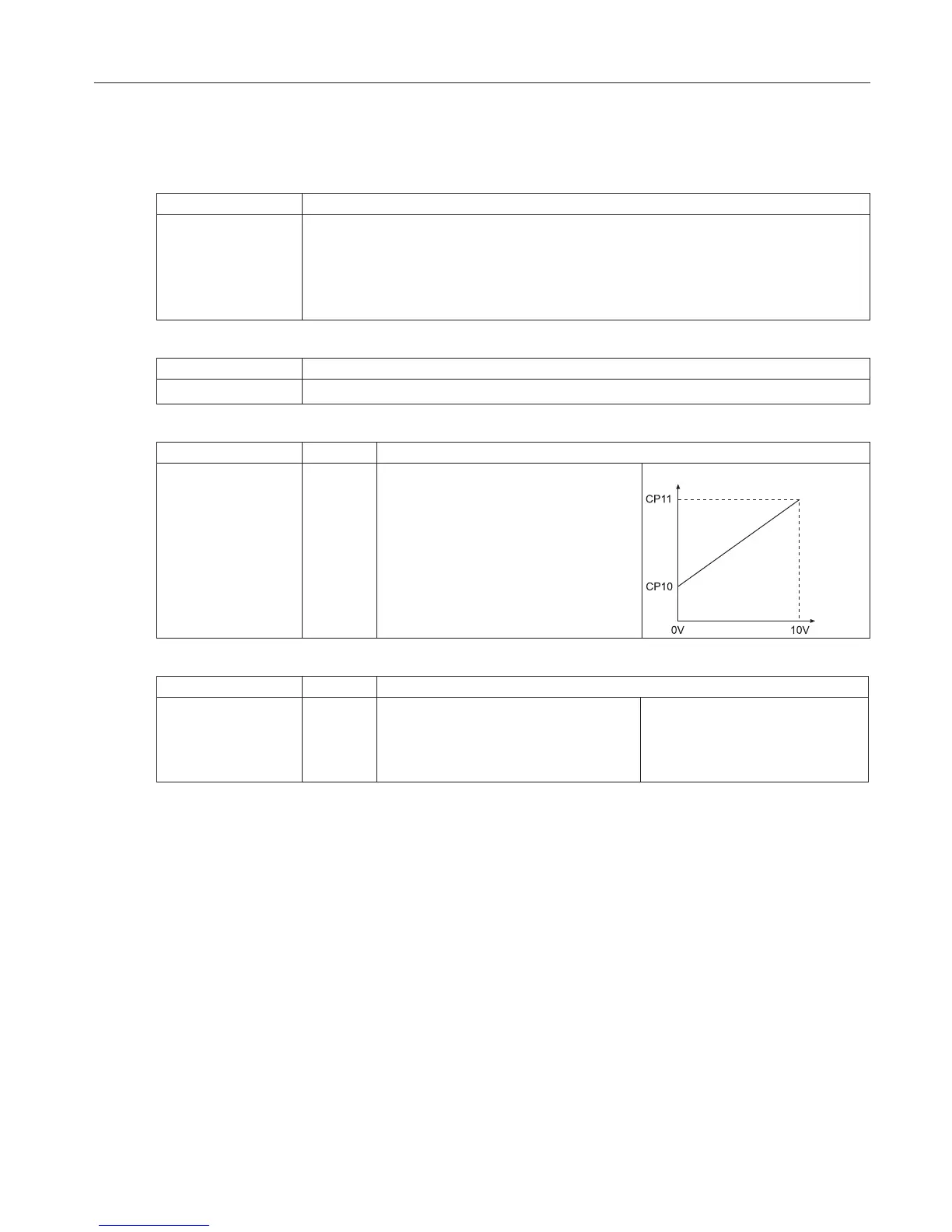

CP-Parameter for open-loop operation
CP08 DC-link voltage/peak value
Co-domain Description
0…1000 V CP08 makes it possible to recognize short-time voltage rises within an
operating cycle. For that the highest value of CP07 is stored in CP08.
The peak value memory can be cleared by pressing the UP, DOWN or
ENTER key or via bus by writing any value you like to the address of
CP08. The switch off of the inverter also clears the memory.
CP09 Output voltage
Co-domain Description
0…778 V Display of the actual output voltage in volt.
CP10 min. reference forward
Co-domain Setting Description
0.0…400.0 Hz 0 Hz With ths frequency the inverter
operates without presetting an
analog set value. Internal limiting
of the xed frequencies CP19...
CP21.
f
U
REF
CP11 max. reference forward
Co-domain Setting Description
0.0…400.0 Hz 70 Hz With this frequency the inverter
operates with maximum set val-
ue. Internal limiting of the xed
frequencies CP19...CP21.
→ CP10
