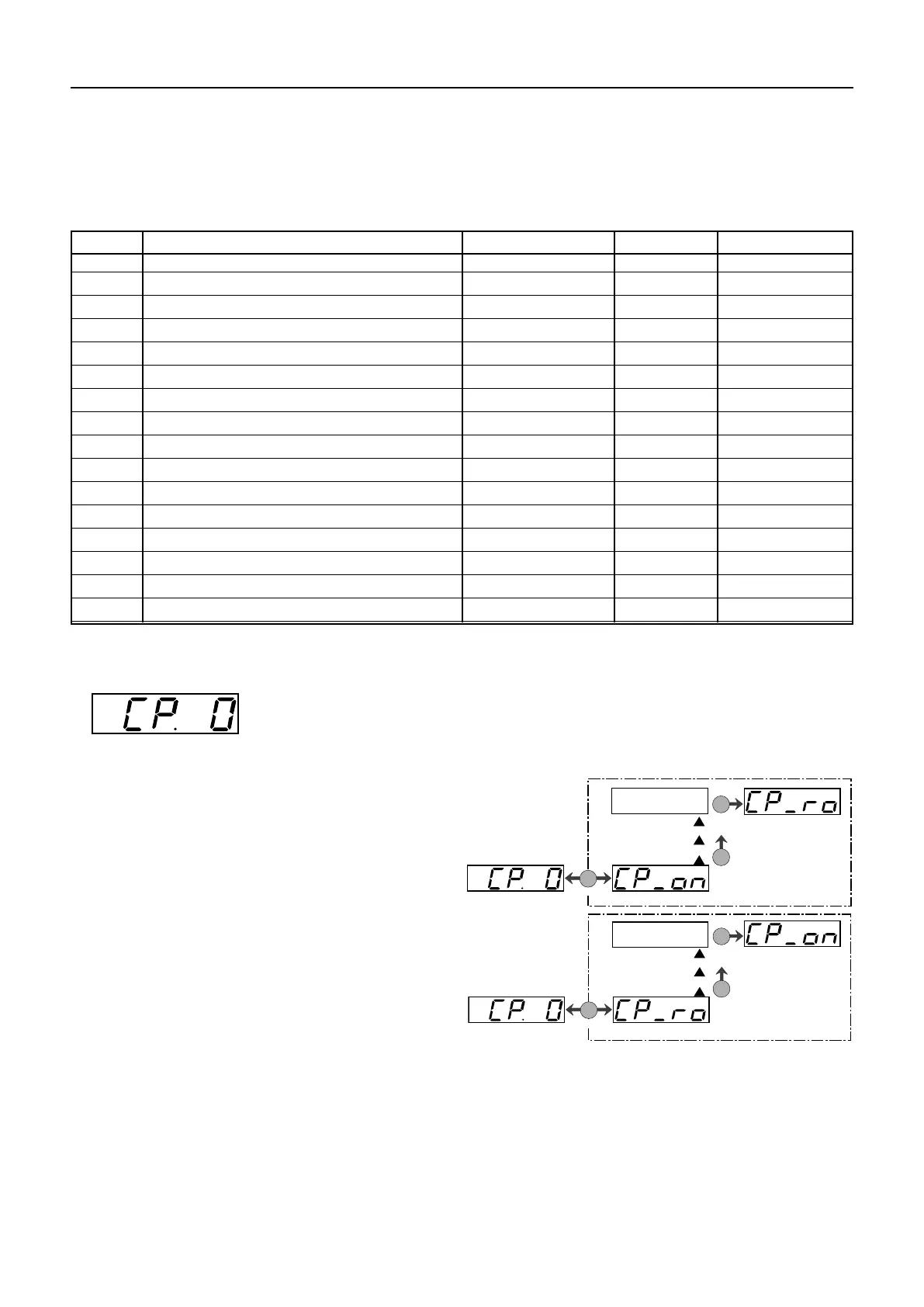

Operation of the Unit

5.2 Parameter summary

The CP parameters are one of the parameter selection dened by KEB. You need an application manual in

order to get access to the entire parameters.

FUNC

ENTER

Password

FUNC

ENTER

Blocking the CP-Parameter

Releasing the CP-Parameter

5.3 Password input

Ex works the frequency inverter is supplied without password protection, this

means that all changeable parameters can be adjusted. After parameterizing

the inverter can be secured against unauthorized access. The adjusted mode

is stored.

Display Parameter Setting range Resolution Fact. setting

CP. 0 Password input 0…9999 1 –

CP. 1 Status display – – –

CP. 2 AC input current – 0.1 A –

CP. 3 DC output current – 0.1 A –

CP. 4 DC - output current / peak value – 1 % –

CP. 5 current DC - utilization – 1V –

CP. 6 current DC - voltage – 1V –

CP. 7 DC output voltage – 1V –

CP.8 DC - output voltage / peak value – 1V –

CP.9 Heat sink temperature – 1 °C –

CP.10 Charging time factor 100…500 % 1 % 100 %

CP.11 Analog output 1 gain -20.00…20.00 1 1.00

CP.12 Analog output 2 gain -20.00…20.00 0.01 1.00

CP.13 AC-Phase current L1 – 0.1 A –

CP.14 AC-Phase current L2 – 0.1 A –

CP.15 AC-Phase current L3 – 0.1 A –

KEB COMBIVERT R5-C User Manual
