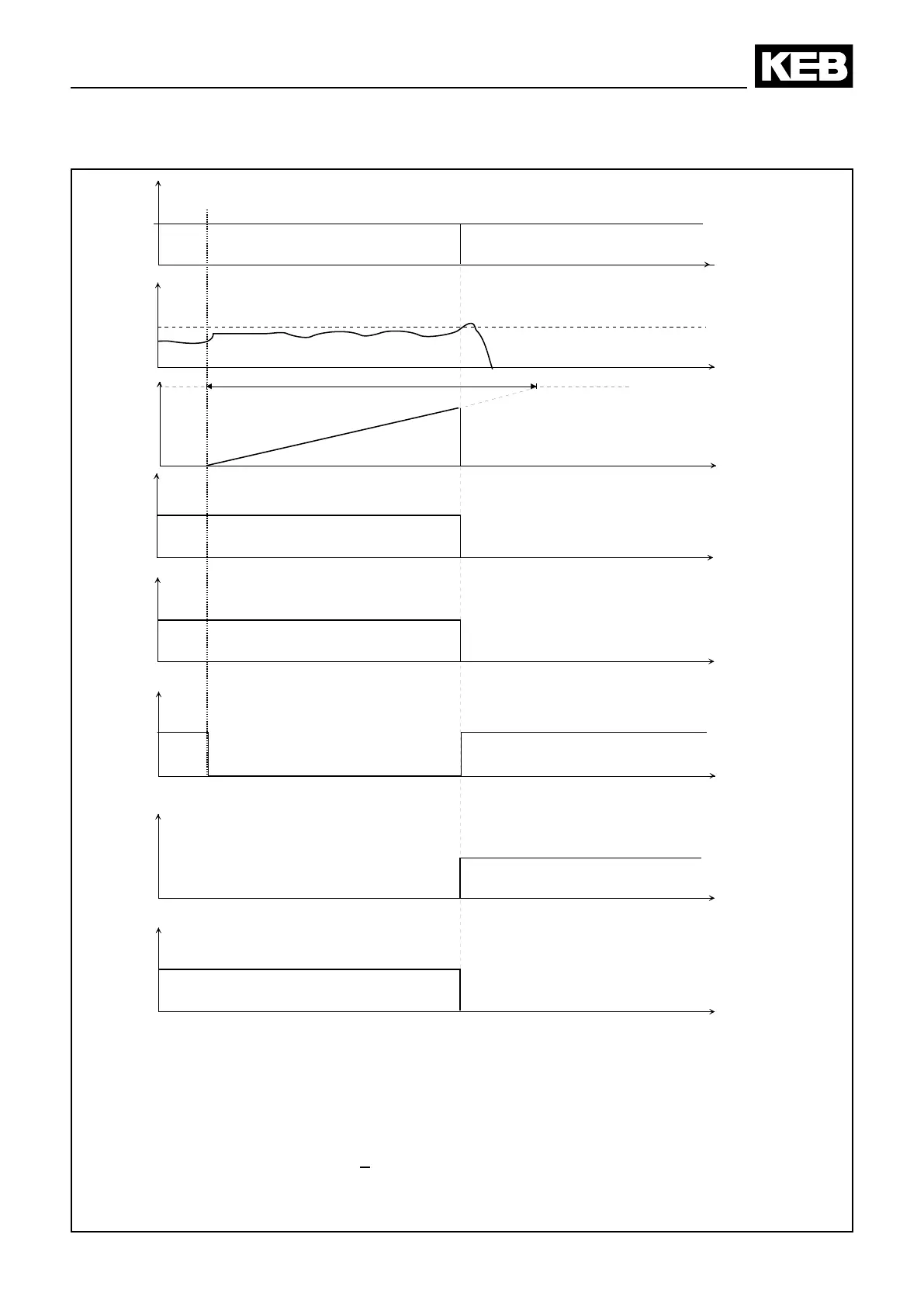

6.6.5 Phase Error during Operation (E.UPh)
The utilization of L1, L2 und L3 is compared with ru.13. If after triple scan-
ning (12 ms) a difference of >15 % of one phase to CP.13 is detected, then
• at ru.13 <50% a warning is triggered and switched off after 60 s, status
= E.UPh
•
at ru.13 > 50 % is immediately switched off, status = E.UPh
t
t
t
t
t
t
t
t
60s max.
Status
IAC
0,5•In
Output
ready
1
0
Output
run
1
0
Output
warning
1
0
Output
error
1
0
Thyristor
1
0
run
phase failure occurs
Error phase failure
Functional Description
